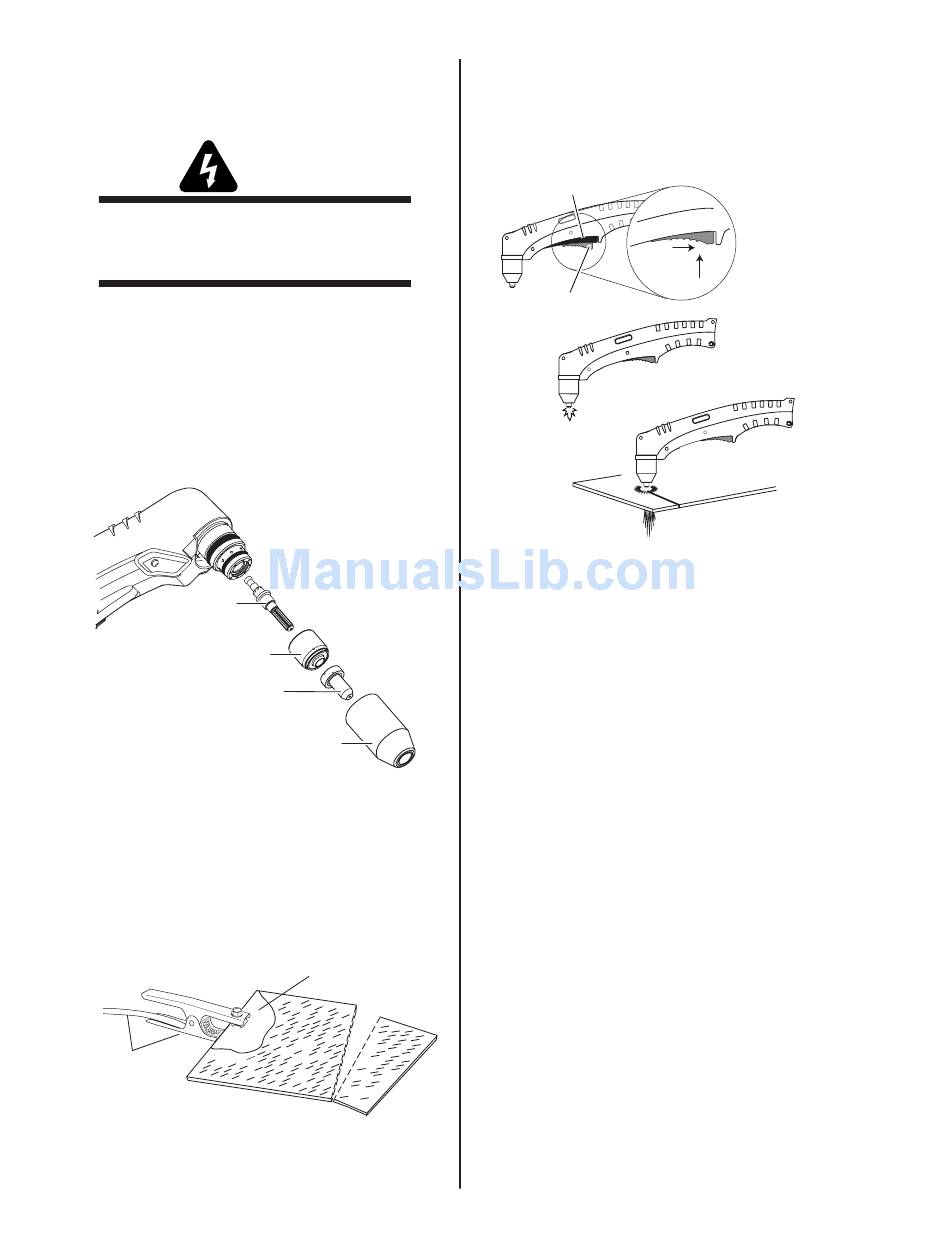

4.02 Preparations For Operating

At the start of each operating session:
Disconnect primary power at the source before
assembling or disassembling power supply, torch
parts, or torch and leads assemblies.
A. Torch Parts Selection
Check the torch for proper assembly and appro-
priate torch parts. The torch parts must correspond
with the type of operation, and with the amperage
output of this Power Supply (100 amps maximum).
Use only genuine manufactured parts with this
torch.
Electrode
9-8215
Start Cartridge
9-8213
Art # A-04649
B. Torch Connection
Check that the torch is properly connected.
C. Connect Work Cable
Work Cable
And Clamp
Art # A-04389
Operation
WARNING
Tip
9-8212
Shield Cup
9-8218
Make a clean work cable
connection to the work-
piece or cutting table
D. Torch Operation
• Refer to Section 1 for necessary safety precau-
tions.
Trigger
Trigger Release
3
4-2
1
2
4
Art # A-03383
Manual 0-4686
