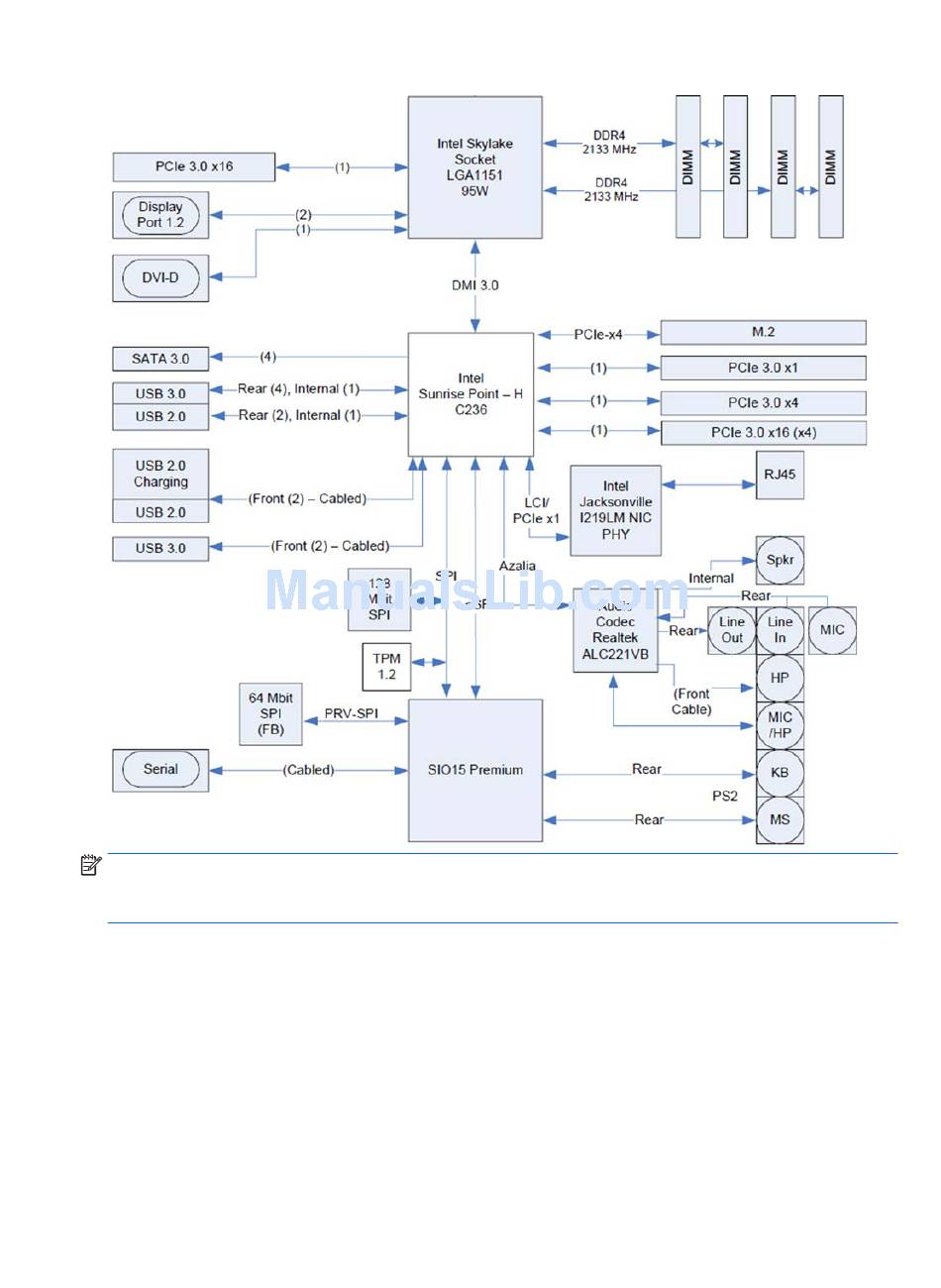

System board architecture
NOTE:
The PCIe designators indicate the mechanical connector size and number of electrical PCIe lanes
routed to an expansion slot. For example, x16(4) means that the expansion slot is mechanically a x16 length
connector, with 4 PCIe lanes supported.
12
Chapter 1 Hardware overview
