HP zx2000 Installation Instructions

before you begin

Before you install your new graphics card, please do the following:
CAUTION: When handling your card always wear a properly grounded wrist strap and handle
Ä
the card carefully since it is susceptible to electrostatic shock.
■ Refer to the Technical Reference or Operations And Maintenance Guides for your workstation model at
www.hp.com/go/bizsupport for the latest important system configuration information.
■ Install the latest firmware (for Itanium2 workstations) or latest BIOS (for Pentium/Xeon-based workstations)
before installing the new graphics card. The latest firmware or BIOS can be downloaded from
www.hp.com/go/bizsupport.
■ Refer to the Technical Reference or Operations And Maintenance Guides for your specific workstation model
for comprehensive instructions on adding or replacing a graphics card.
■ Uninstall the current graphics driver (if you are installing this card on a system that currently has a different
graphics card).

general HP installation instructions

To install the graphics card:
1. Disconnect all cables from your workstation.
2. Remove the bulkhead or existing graphics card.
3. Following the procedures described in the Technical Reference or Operations And Maintenance Guides, slide
the graphics board into the AGP Pro slot 1 and secure it with the two screws. (Some systems may have the
AGP Pro down on the system board or it may reside in a card cage.) Ensure the board is fully seated in the
connector.

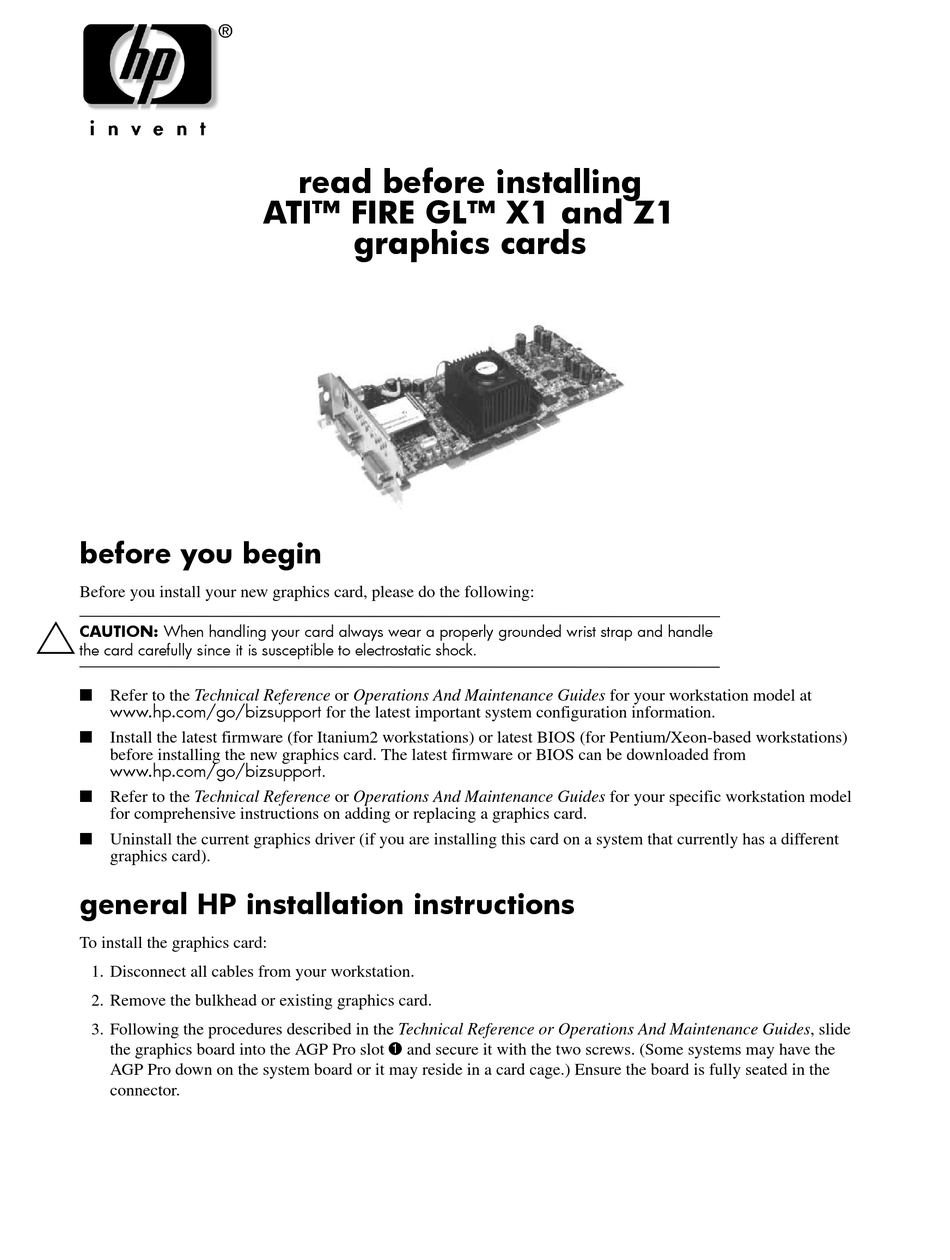

read before installing
ATI™ FIRE GL™ X1 and Z1

graphics cards
