Chassis components

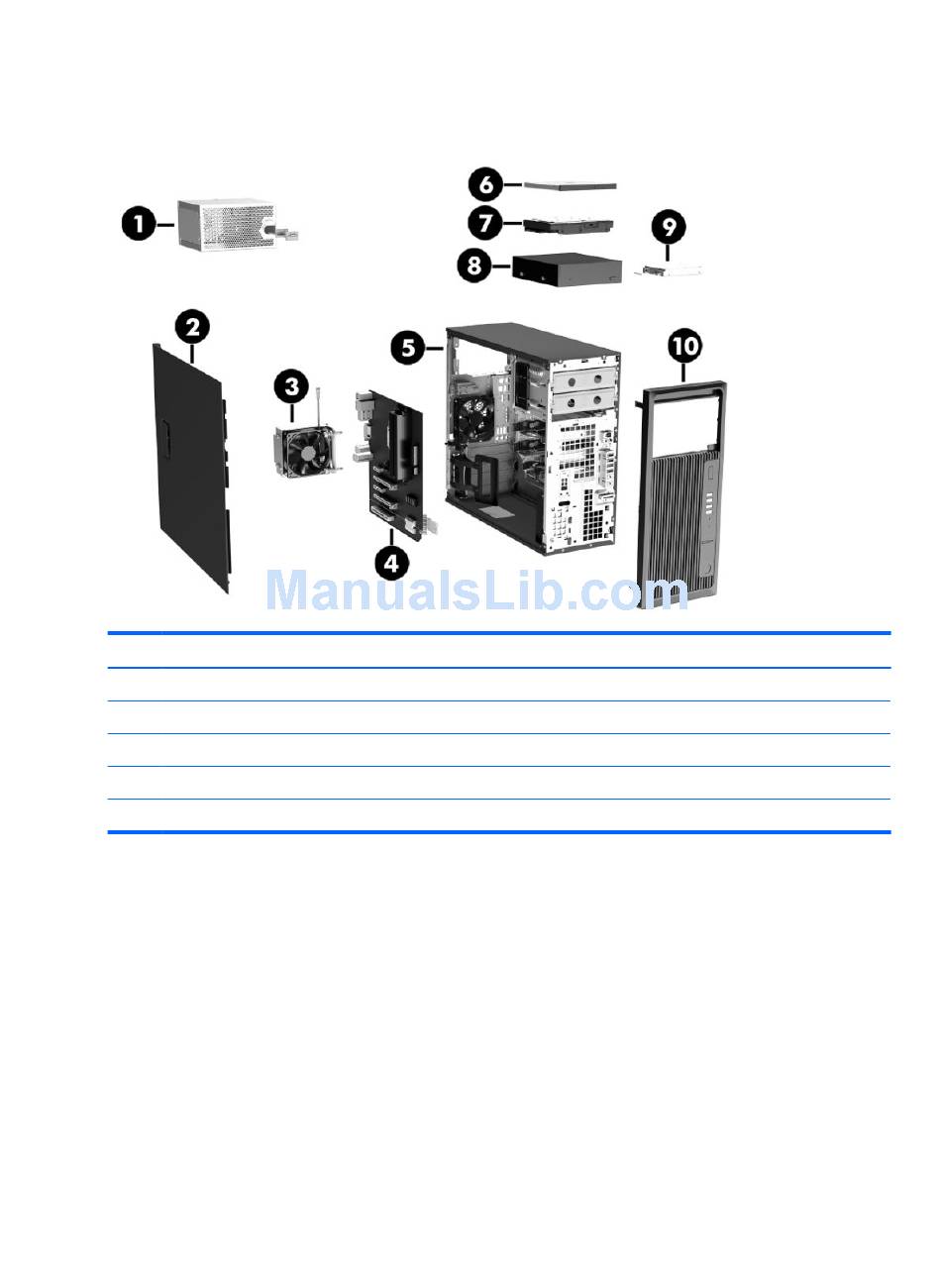

The following figure shows the chassis components of a typical tower workstation layout. Drive
configurations can vary.
Item
Description
1
Power supply
2
Side access panel
3
Cooler
4
System board
5
Chassis
10
Chapter 1 Hardware overview
Item
Description
6
Slim optical drive
7
Hard drive
8
Optional second optical drive
9
Optional solid state drive
10
Front bezel
