Installing The Rudder Servo - Phoenix Model EXTRA 260-EP Instruction Manual

Instruction Manual
44

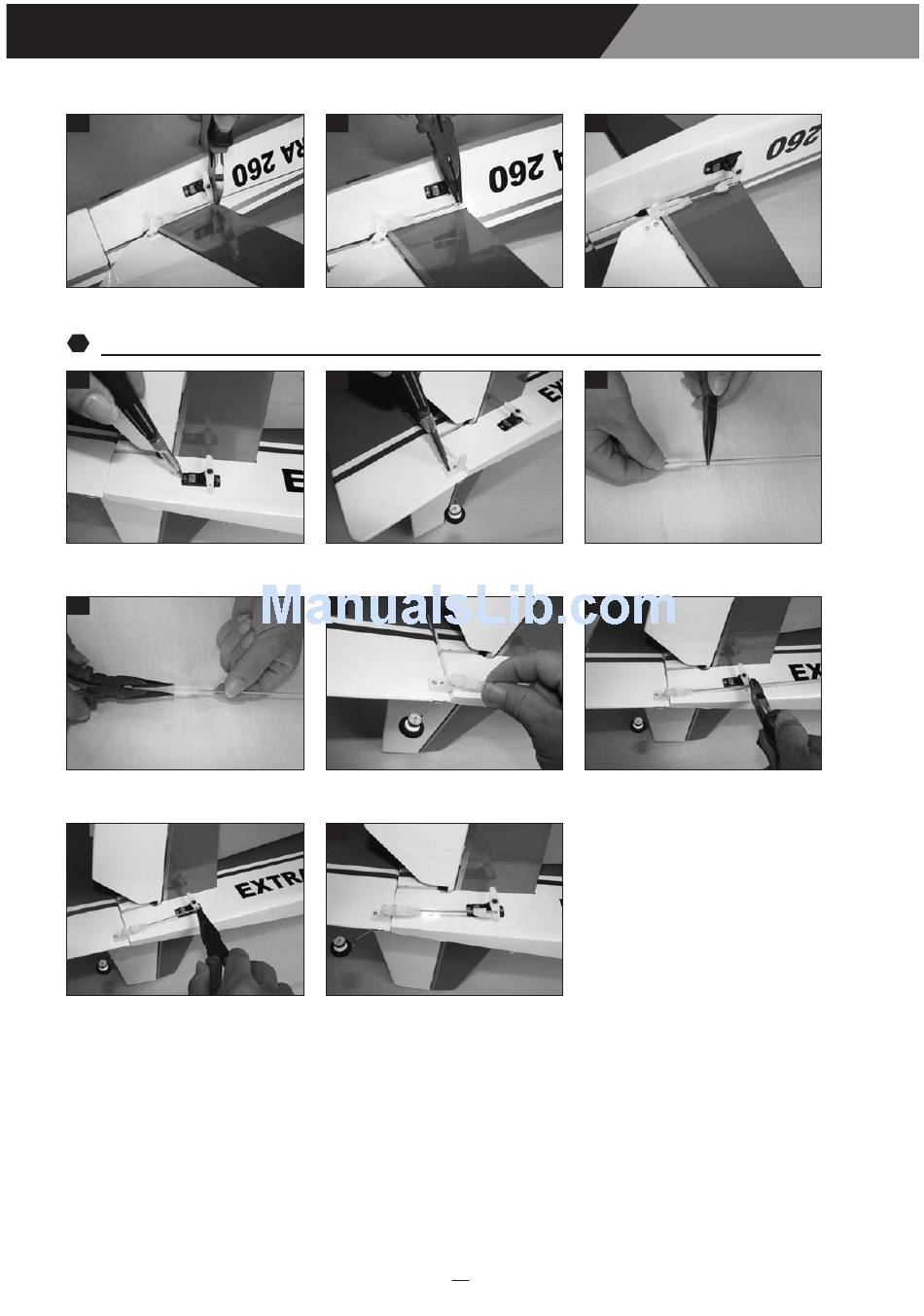

Cut away the rod.

Installing the rudder servo:

5
2
47
Install the rudder servo.
50
Insert the silicon tube to the clevis.
53
Bend L the rod.
45
Bend L the rod.
48
Install the control horn.
51
Attach the clevis to the control horn.
54
Install the nylon snap keeper.
5
EXTRA 260-EP
46
Install the nylon snap keeper.
49
Insert the clevis to the rod.
52
Cut away the rod.
