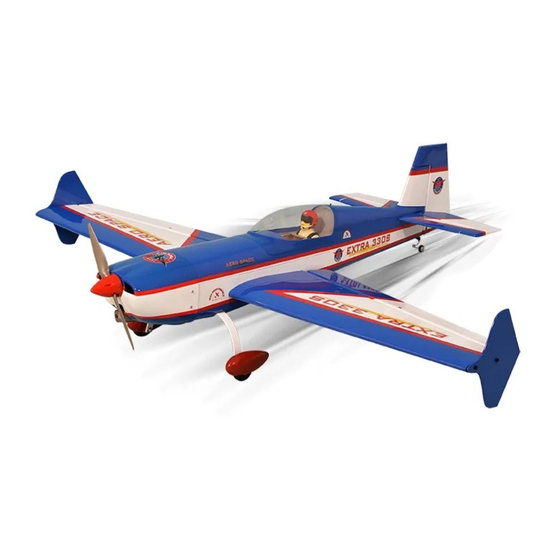

Instruction Manual

SPECIFICATION
- Wingspan: 1582mm (62.3 in)
- Length: 1490mm (58.7 in)
- Flying weight: 3600-4100 gr
- Wing area: 52.2 dm2
- Wing loading: 78g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Gear type: Aluminum Hi-grade for main gear
and spring wire for tail gear (included)
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 6 standard hi-torque servo: 2 aileron;
2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery:
4.8-6V / 1200-2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .61-.91 / 2-stroke or .91/4-stroke
glow engine (not included)
- Motor: brushless outrunner 2000-2200 W,
500 KV (not included)
- Gravity CG: 110-120 mm (4.3-4.7 in) Back from
the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 10mm up/down,
10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 10mm up/down,
12% expo; High: 12mm up/down, 12% expo
- Control throw Rudder: Low: 25mm right/left,
15% expo; High: 50mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Scale Aerobatic
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .80 (not included)
- Lipo cell: 5-6 cells / 4000 – 5500mAh (not included)
- Esc: 60-100A (not included)

Advertisement

Table of Contents
loading

Related Manuals for Phoenix Model Extra 330S

Summary of Contents for Phoenix Model Extra 330S

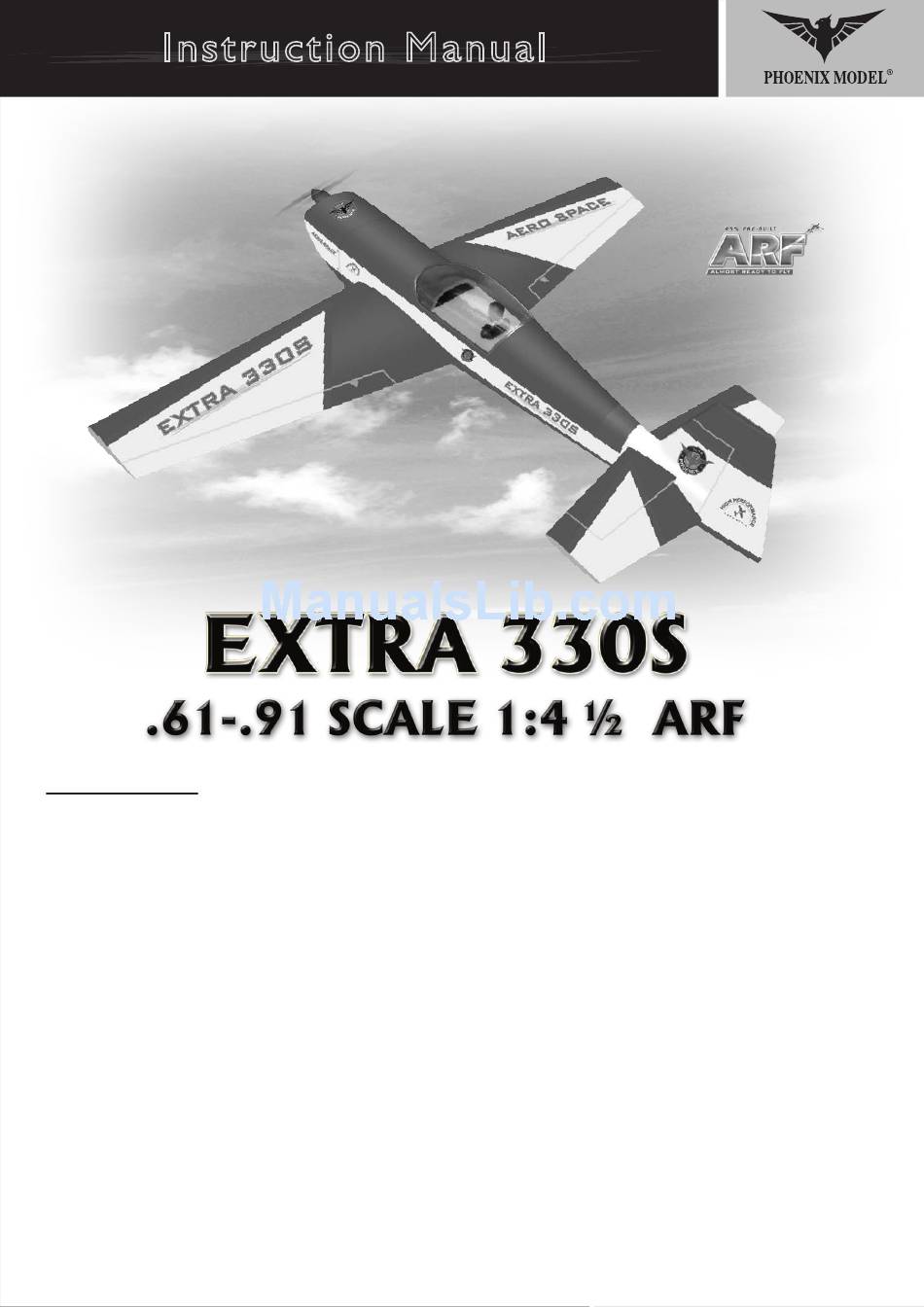

  • Page 1: Instruction Manual

    Instruction Manual SPECIFICATION - Engine: .61-.91 / 2-stroke or .91/4-stroke - Wingspan: 1582mm (62.3 in) glow engine (not included) - Length: 1490mm (58.7 in) - Motor: brushless outrunner 2000-2200 W, - Flying weight: 3600-4100 gr 500 KV (not included) - Wing area: 52.2 dm2 - Gravity CG: 110-120 mm (4.3-4.7 in) Back from - Wing loading: 78g/dm2 the leading edge of the wing, at the fuselage...
  • Page 3 This will assure proper assembly. The TEMPORARY PIN EXTRA 330S .61-.91 SCALE 1:4 ½ ARF is hand TO KEEP HINGE made from natural materials, every plane is unique CENTERED and minor adjustments may have to be made.
  • Page 4 Instruction Manual Extra 330S INSTALL THE AILERONS SERVOS & PUSHRODS 1. Install the servo in the wing require the use of one 305mm servo extension for each aileron servo. One Y-harness connector is required and is used to allow the aileron servo to plug into one slot in your receiver.

  • Page 5: Installing The Control Horns

    Instruction Manual Extra 330S ↑ To the cowl INSTALLING THE CONTROL HORNS INSTALLING THE AILERON LINKAGES 1. The aileron has a block wood plate for mounting The aileron linkages are assembled as shown the control horn. One aileron control horn in below.

  • Page 6: Installing The Horizontal Stabilizer

    Instruction Manual Extra 330S 5. Repeat step 1 - step 3 for the second aileron linkage. Adjust the linkages 3. Plug the aileron servo into the receiver and center the servo. Install the servo arm onto the servo. The servo arm should be perpendicular to the servo and point toward the middle of the wing.

  • Page 7: Installing The Rudder

    Instruction Manual Extra 330S Plastic screw 6. After the epoxy has fully cured, remove the masking tape or T-pins used to hold the 3. Attach the wing to the fuselage as picture. stabilizer in place and carefully inspect the glue joints.

  • Page 8: Installing The Tail Wheel

    Instruction Manual Extra 330S 2. Set the tail wheel assembly in place on the plywood plate. 3. Drill 2,6mm pilot holes through the plywood plate. 4. Secure the tail wheel bracket in place using two 3mm x 12mm screw. 5. Align the tail wheel wire so that the wire is parallel with the bottom of the rudder.

  • Page 9: Installing The Wheel Pants

    Instruction Manual Extra 330S There are just one nut and two flat washers outside of the wheel pant. 6. Remove one nut, one flat washer. Attach the main landing gear to the axle. 7. Center both collars and wheel in the middle of the wheel pant, lock both collars in place using a hexagon 2mm screw.

  • Page 10: Installing The Motor And Battery

    Instruction Manual Extra 330S INSTALLING THE MOTOR AND BATTERY 2. Place the engine into the engine mount and align it properly with the front of the cowling. The distance from the firewall to the front of the engine thrust washer should [125mm] Installing the electric motor If your engine is equipped with a remote needle This model can fly with electric, here is our...

  • Page 11: Installing The Stopper Assembly

    Instruction Manual Extra 330S When the stopper assembly is installed in the tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank. 5. Test fit the stopper assembly into the tank. It may be necessary to remove some of the flashing around the tank opening using a modeling knife.

  • Page 12: Installing The Throttle Servo

    Instruction Manual Extra 330S CA glue To carburetor Muffler To vent tube INSTALLING THE THROTTLE SERVO 3. The elevator has a block wood plate for mounting the control horn. One elevator control 1. Install the rubber grommets and brass collets horn in positioned on each elevator.

  • Page 13: Installing The Elevator Linkages

    Instruction Manual Extra 330S INSTALLING THE RUDDER SERVO INSTALLING THE ELEVATOR LINKAGES The elevator linkages are assembled as shown below Install the rudder servo to the fuselage as shown. 22mm 22mm 140mm . Repeat these step as installing the aileron linkages (Page 4 and page 5).

  • Page 14: Installing The Throttle

    Instruction Manual Extra 330S 3. Slide a crimp onto the cable, then pass the Note: Remember use thread locking compound cable through the threaded cable end. Pass to secure. the cable back into the crimp and use crimping pliers to secure the crimp to the cable. Guide the cable into the fuselage to the position for the rudder servo.

  • Page 15: Installing The Canopy

    Instruction Manual Extra 330S MOUNTING THE COWL 1. Remove the muffler and needle valve assembly from the engine. Slide the fiberglass cowl over the engine. 2. Measure and mark the locations to be cut out for engine head clearance, needle valve, muffler.

  • Page 16: Installing The Receiver And Battery

    Instruction Manual Extra 330S INSTALLING THE RECEIVER AND BATTERY 2. Mount the wing to the fuselage. Using a couple of pieces of masking tape, place them on the top side of the wing 110-120mm back from the 1. Plug the servo leads and the switch lead into leading edge, at the fuselage sides.

  • Page 17: Flight Preparation

    10mm Elevator Control We wish you many enjoyable flights with your plane and once again thank you for 40mm your choosing a Phoenix Model's product. 40mm Rudder Control 3-D PERFORMANCE SETTINGS The EDGE 540 will perform 3-D aerobatics easily if you use the largest engines recommended within the engine range.
  • Page 18 Instruction Manual Extra 330S I/C FLIGHT WARNINGS Always operate in open areas, away Keep all onlookers (especially small from factories, hospitals, schools, THE PROPELLER IS DANGEROUS children and animals) well back from buildings and houses etc. NEVER fly Keep fingers, clothing (ties, shirt the area of operation.
  • Page 19 Instruction Manual Extra 330S I/C FLIGHT GUIDELINES Operate the control sticks on the When ready to fly, first extend the transmitter and check that the control transmitter aerial. surfaces move freely and in the ALWAYS land the model INTO the CORRECT directions.
