Phoenix Model EXTRA 330SC Instruction Manual

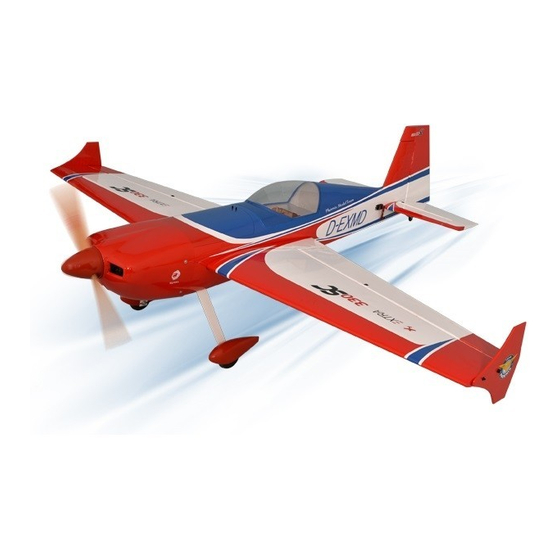

EXTRA 330SC
GP/EP size 30/35cc SCALE 1:4 ARF
SPECIFICATION
- Wingspan: 1850mm (72.8 in)
- Length: 1786mm (70.3 in)
- Flying weight: 6200-6500 gr
- Wing area: 63.8 dm2
- Wing loading: 97g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Gear type: Aluminum Hi-grade for main
gear and spring wire for tail gear (included)
- Spinner size: Plastic 95mm (included)
- Radio: 8 channel minimum (not included)
- Servo: 6 standard hitorque servo: 2 aileron;
2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery:
4.8-6V / 2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
Instruction Manual
- Engine: 30-35cc gas engine (not included)
- Motor: brushless outrunner 2500 W,
250 KV (not included)
- Gravity CG: 145 mm (5.7in) Back from the
leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 11mm up/down,
10% expo; High: 13mm up/down, 10% expo
- Control throw Elevators: Low: 11mm up/down,
12% expo; High: 13mm up/down, 12% expo
- Control throw Rudder: Low: 35mm right/left,
15% expo; High: 60mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Scale Aerobatic
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE 1.60 (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 120-160A (not included)
GP EP
version version
