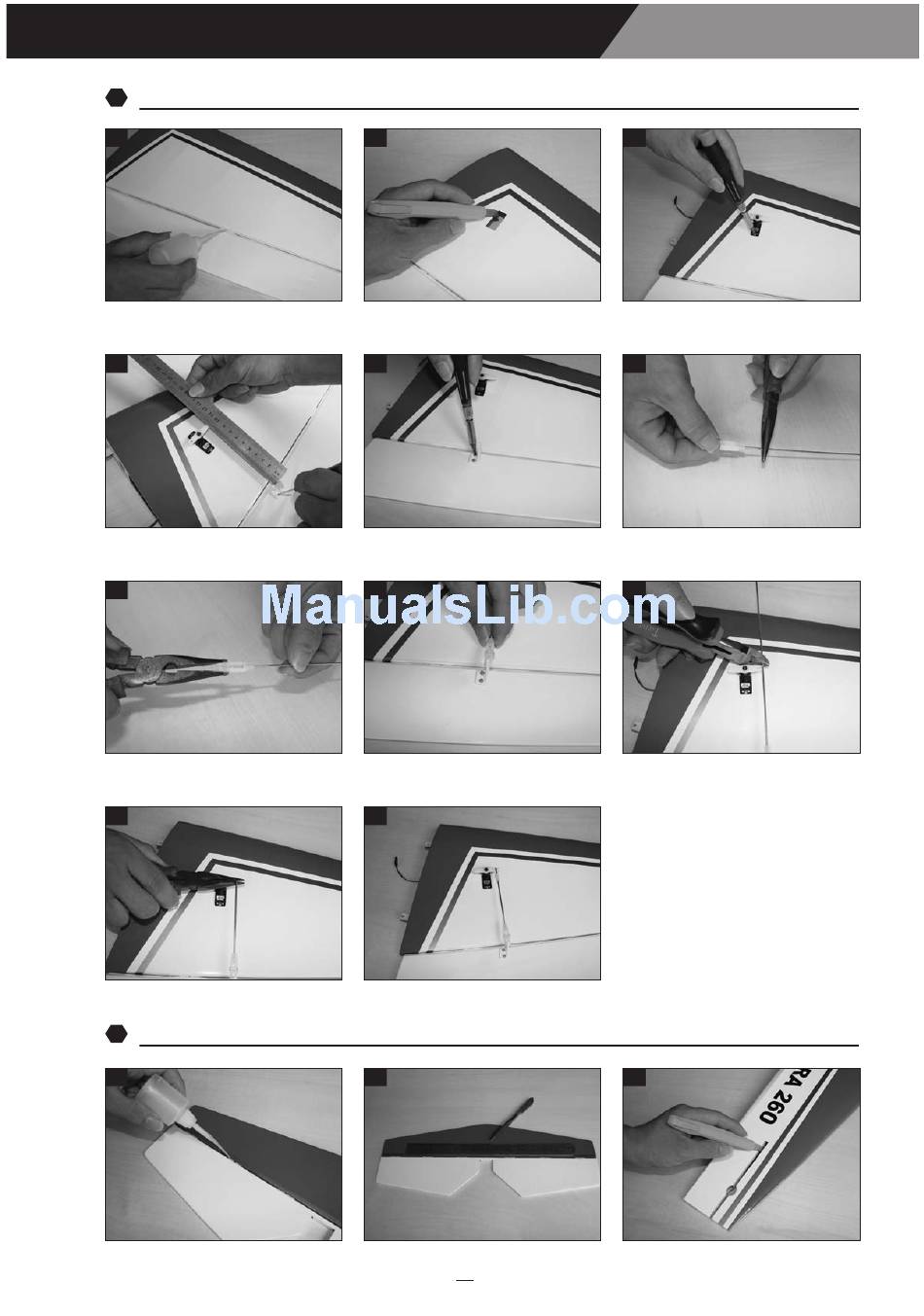

Installing the wing:

1
2
1
Glue the aileron hinge by C.A glue.
4
Drill two holl for the aileron control horn.
7
Insert the silicone tube.
10
Bend L the rod.
Installing the horizontal and the vertical:
2
2
12
Glue the elevator hinge by C.A glue
2
Remove the covering.
5
Install the control horn.
8
Attach the clevis to the control horn.
11
Install the nylon snap keeper.
13
Make the center line onto the horizontal.
2
EXTRA 260-EP
3
Install the aileron servo.
6
Secure the clevis.
9
Cut away the rod.
14
Remove the covering.
