Desktop installation

Do the following to install the SmartNode 2300:
1. Remove one of the rubber pads from the adhesive strip (included in the SmartNode installation kit pack)
and place it on a corner on the bottom of the SmartNode 2300 (see
2. Repeat step 1 to install pads on the remaining three corners on the bottom of the SmartNode 2300.
3. Place the unit on a desktop, shelf or other flat, hard, and secure surface.
Note Allow sufficient space at the rear of the chassis for cable connections. In
addition you should consider the need to access the chassis for future
upgrades, maintenance and troubleshooting. Multiple SmartNodes can be
stacked one atop the other.

Rack-mounted installation

For rack-mounting, screw holes are provided at standard mounting positions for industry-standard 19-inch
equipment racks.
Note
Install the rack-mount brackets before you install the SmartNode 2300 in the rack. When installing multiple
SmartNode 2300s in one rack, Patton recommends that you leave one height unit (2.54 cm/1 inch) of clear
space between two devices. Two rack mounting brackets and eight screws for attaching the brackets to the chas-
sis are provided. The screws for installing the chassis in a rack are not included.
Mounting the SmartNode 2300

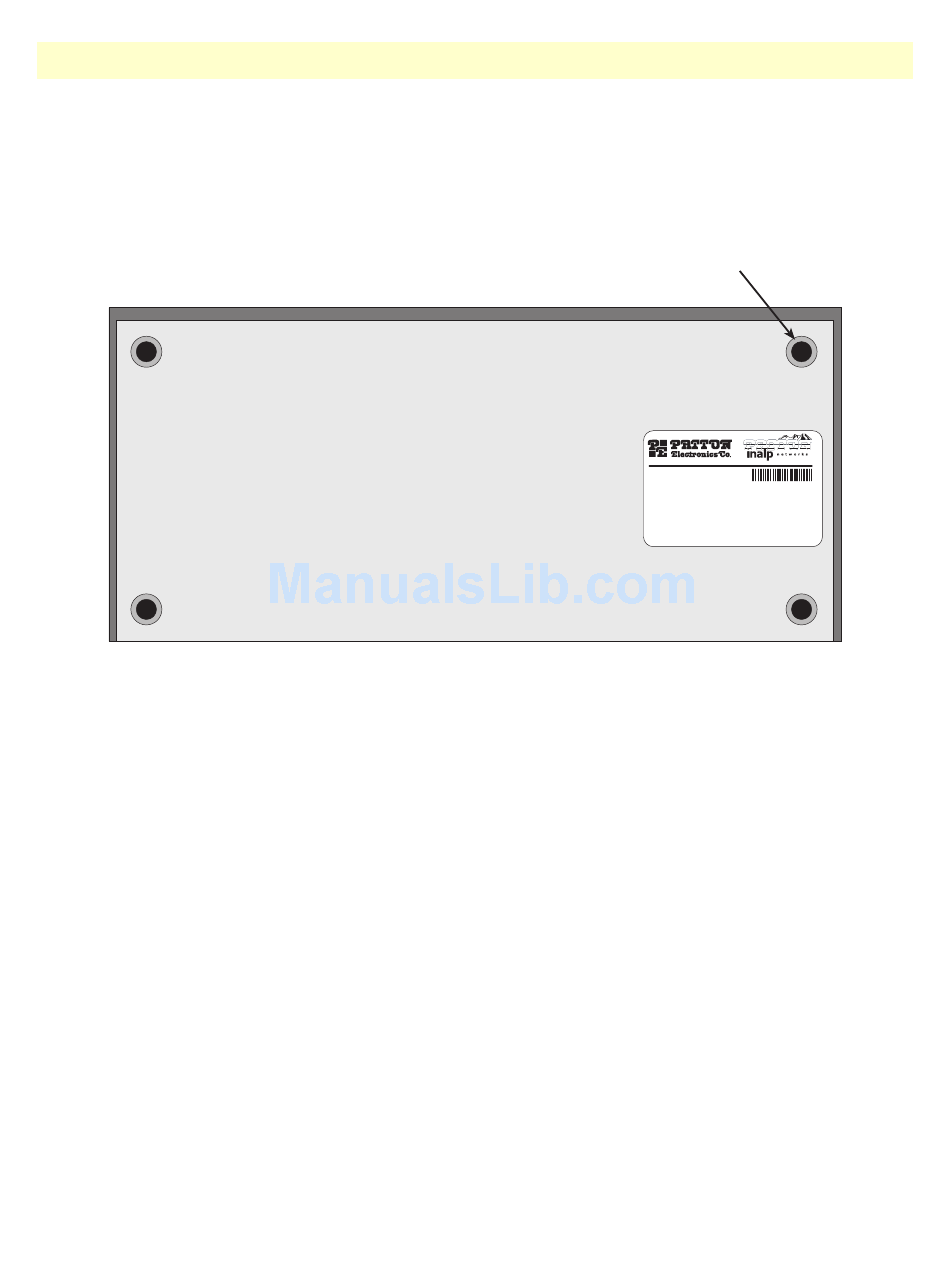

Figure 55. Pad locations
The SN2300 requires AC power 100–240V, 50–60 Hz. It should be
installed in an open rack wherever possible. If cabinet installation is
unavoidable then ensure that the cabinet has adequate ventilation.
6 • SmartNode 2300 installation
figure 55).
Pad (4 places)
Model SN23000 0001-0001
Serial No. 100000020153
Part No. 40-0003
Eth0 Mac 00.30.2E.00.06.94
Eth1 Mac 00.30.2E.00.08.96
