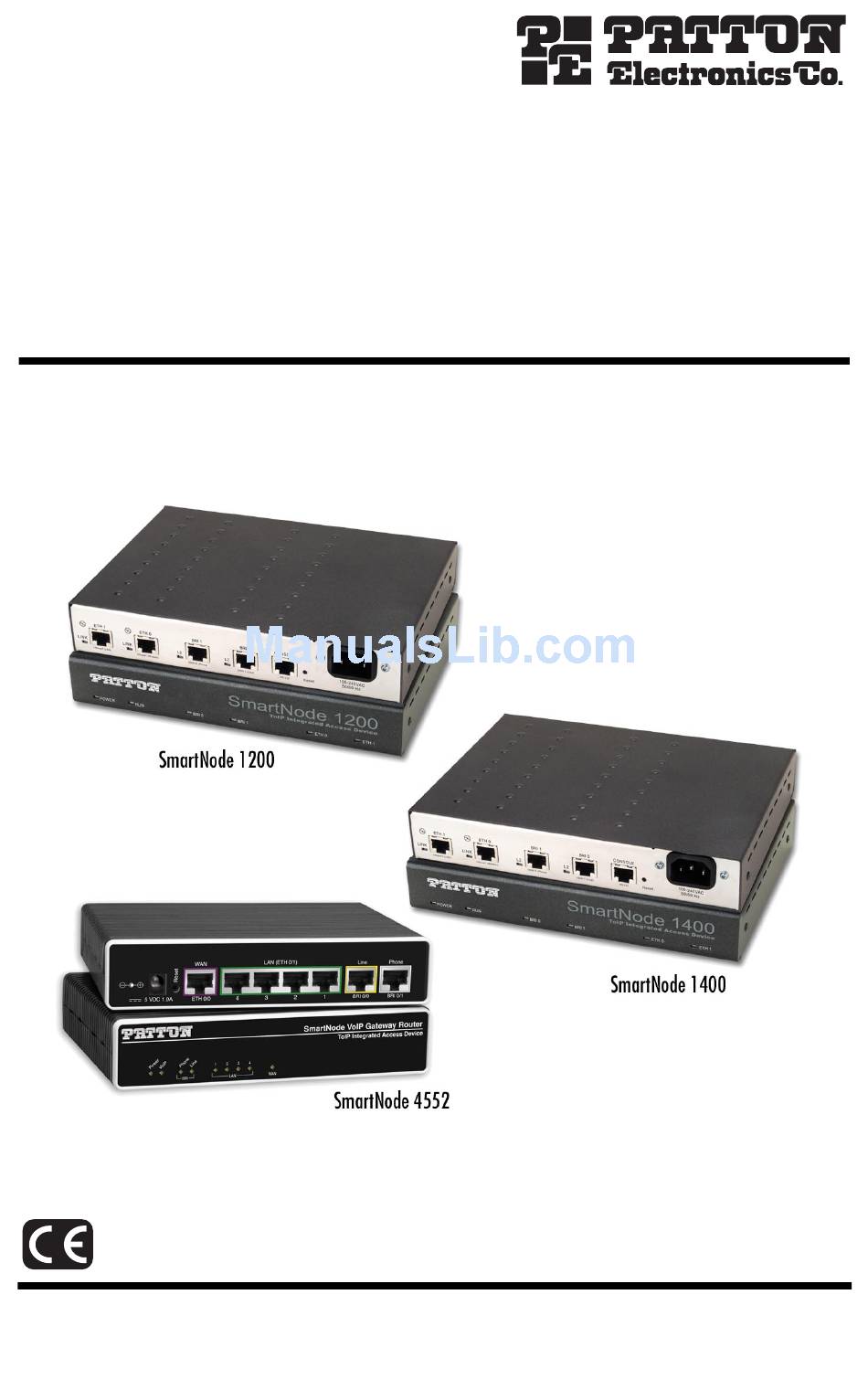

Page 1: Quick Start Guide
SmartNode™ Model 1200, 1400 & 4552 VoIP Gateway Routers Quick Start Guide Document Number: 13211U7-001 Rev. A Sales Office: +1 (301) 975-1000 Part Number: 07MSWGUI-QS Technical Support: +1 (301) 975-1007 E-mail: support@patton.com Revised: October 31, 2005 WWW: www.patton.com... -
Page 2: Power Up The Smartnode
• The SmartNode contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • Mains Voltage: Do not open the case when the power cord is con- nected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected. - Page 3 This guide will allow you to quickly access the configuration interface of a SmartNode and give an overview of the different elements you can or need to configure. For detailed information on all configuration parameters refer to the SmartWare software configuration guide. The SmartNode has a built in DHCP Server which allows an automatic IP connection with a connected PC.
-
Page 4: Connect The Pc To The Smartnode Lan Port
Double-click on Local Area Connection and click on Properties to open the Internet Protocol (TCP/IP) Properties window (see figure Select Obtain an IP address automatically and Obtain DNS server address automatically options. Click OK to save changes and close the properties windows. 3.0 Connect the PC to the SmartNode LAN Port Now use the included Ethernet cable to connect the configured PC to the SmartNode. -
Page 5: Get Started
The subsequent pop-up window asks you for the login credentials (see figure 5). The factory default login credentials are: User Name: administrator Password: There is no password, leave this field empty Figure 5. Login window Click OK. 4.0 Get Started After successful login you get to the SmartNode home page, and you can configure your device. - Page 6 The GUI consists of the following main elements (see figure The “Navigation Bar” on the left edge presents you with a menu listing giving access to the various configura- • tion and status pages of the SmartNode. At the top of the page you see the “Current System Path” which displays the location and element currently •...
-
Page 7: Access The Internet
5.0 Access the Internet Connect an Ethernet cable from the WAN port on the SmartNode to the upstream WAN Internet connection. Begin the configuration for Internet access with the WAN page. Figure 7. WAN page 5.1 Connecting a PC and logging in Here are some special hints you may use when configuring your SmartNode: For each box containing an “Apply”... -
Page 8: Additional Information
from a DHCP server. Use this option when connecting the SmartNode to a DSL router, a cable modem, or to a company LAN (with a DHCP server). This is the factory default configuration so no configuration is required, only the LAN and WAN Ethernet connections should be made to access the Internet immediately. PPPoE. - Page 9 The CD-ROM also includes many freeware and shareware tools, including TFTP servers, and Telnet clients. Besides the comprehensive manuals included on the CD-ROM a host of additional information is available on-line at www.patton.com/voip. Here you will find: Configuration notes—This library contains example command sets for configuring and activating such •...
-
Page 10: Customer And Technical Support
A.0 Customer and Technical Support If you contact Patton support, you should have some system information ready to help us better help you. This information allows us to quickly identify what product you are using and how it is configured. Therefore, we integrated a “system report”... -
Page 11: Compliance Information
A.0 Appendix—Factory default IP addresses Factory default IP addresses and netmask configuration. IP Address Network mask WAN interface Ethernet 0 (0/0) DHCP Client LAN interface Ethernet 1 (0/1) 192.168.1.1 255.255.255.0 DHCP server address range (LAN) 192.168.1.10-192.168.1.19 255.255.255.0 B.0 Compliance Information B.1 Compliance EMC Compliance: FCC Part 15, Class A... - Page 12 B.3 EC Declaration of Conformity (See section B.5 “EG-Konformitätserklärung” for German version.) Product Description: SmartNode 1200, 1400, and 4552 The products described above in the form as delivered are in conformity with the provisions of the following European Directive: R&TTE Directive 1999/5/EC Guidelines of the European Parliament and the Committee for the Harmonization of the Legal Regu- lations of the Member States concerning radio equipment and telecommunications terminal equip- ment and the mutual recognition of their conformity.
-
Page 13: Copyright Statement
Copyright statement Copyright © 2005, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document. Trademarks statement The term SmartNode is a trademark of Patton Electronics Company. All other trademarks presented in this docu- ment are the property of their respective owners. - Page 14 NOTES ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ SmartWare GUI Quick Start Guide...
- Page 15 NOTES ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ SmartWare GUI Quick Start Guide...
- Page 16 NOTES ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ SmartWare GUI Quick Start Guide...
