SmartNode 1000 and 2000 Series Getting Started Guide

Introduction

The SmartNode 1000 and 2000 series aggregate multiple channels of data and voice user-side traffic for trans-
port over a single wide-area network (WAN) uplink. With one or more ISDN BRI or PRI interfaces, the
SmartNode 1000 (see figure
exchange switch. Moreover, ISDN BRI interfaces can be used to attach ISDN telephones or to connect to an
ISDN NT for voice call fallback or call routing to the PSTN.
Voice is transported as voice over Internet Protocol (VoIP) using the H.323 standards for sending and receiving
audio and data or Patton Electronics' proprietary ISDN over Internet Protocol (ISoIP) on an IP-based network.
Since both of the Ethernet interfaces of a SmartNode 1000 and 2000 series are fully configurable, it is the applica-
tion which defines whether an interface is used for WAN or LAN connections.
Depending of the deployment scenario, optional interface cards are available for the expansion slots of Smart-
Node 2000 series.

Introduction

28) and 2000 (see figure
ISDN BRI 0
ISDN BRI 1
Ethernet 0
Ethernet 1

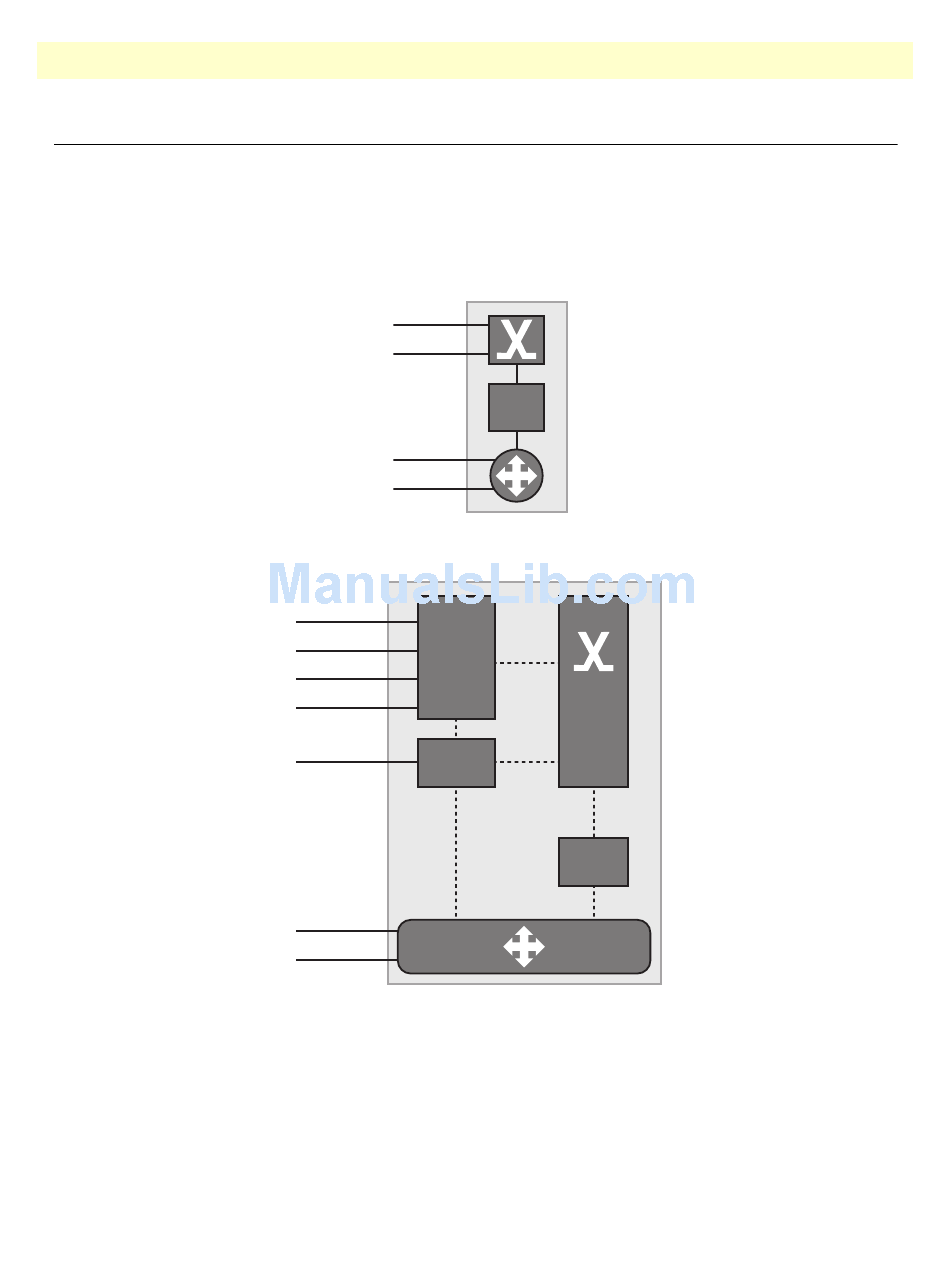

Figure 28. System model, SmartNode 1000 Series
ISDN (BRI 2/0)
IC-4BRV-4V
ISDN (BRI 2/1)
PMC
ISDN (BRI 2/2)
ISDN (BRI 2/3)
ISDN (BRI 1/0)
IC-E1V
PMC
PCI
Bus
Ethernet 0/0
Ethernet 0/1
Figure 29. System model, SmartNode 2000 Series
29) series can be connected to an ISDN PBX or to a local
GW
PCM
Highway
Gateway
2 • Product overview
51
