Page 1: User Manual

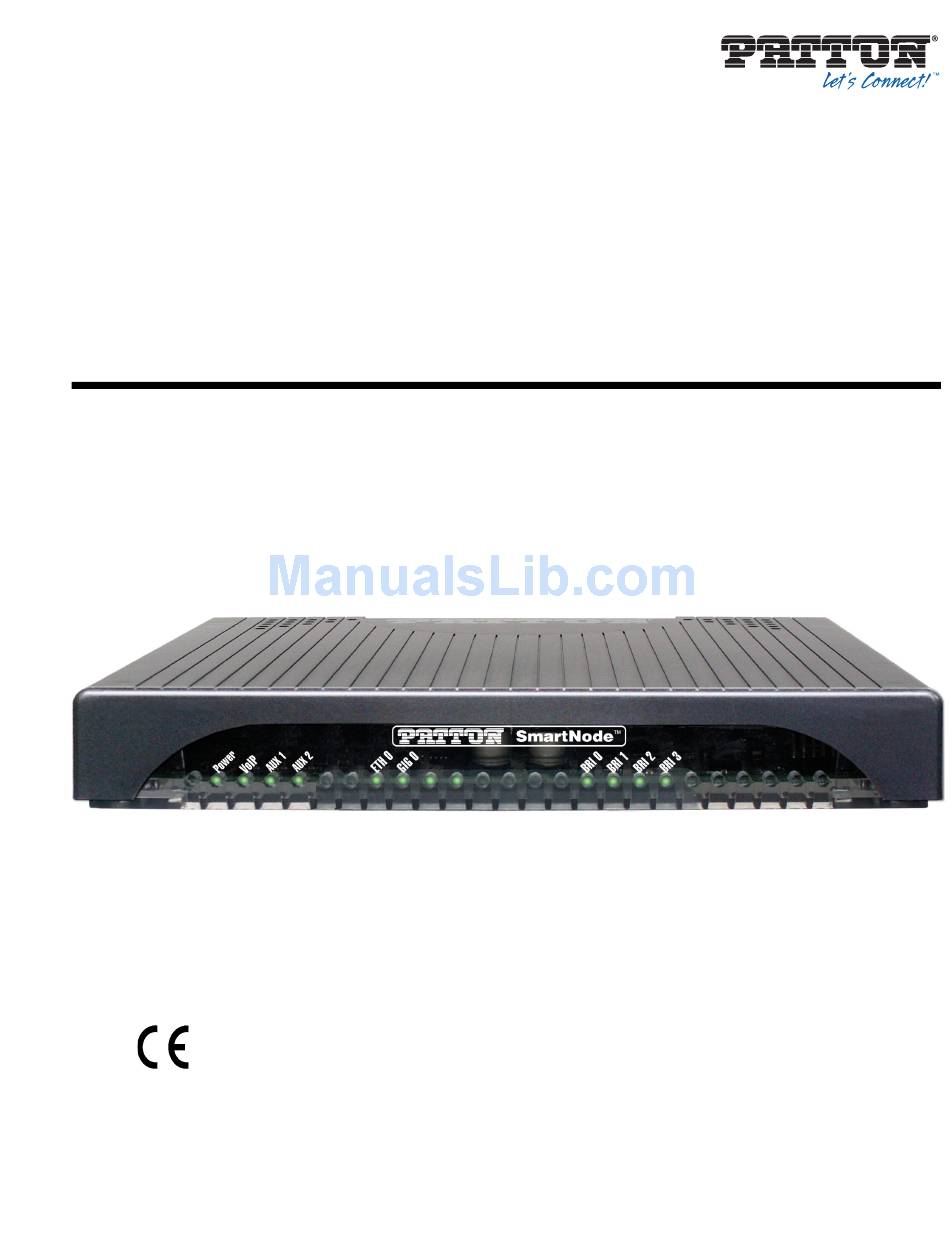

SmartNode 4130 ISDN BRI VoIP Gateway User Manual This is a Class A device and is not intended for use in a residential environment. +1 (301) 975-1000 Sales Office: +1 (301) 975-1007 Technical Support: support@patton.com E-mail: www.patton.com WWW: Part Number: 07MSN4130-GS, Rev. A... - Page 2 Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
-
Page 3: Summary Table Of Contents
............................19 SmartNode Installation............................22 Initial Configuration............................27 Contacting Patton for Assistance ........................32 Compliance Information ........................... 35 Specifications ..............................38 Cabling ................................42 Port pin-outs ..............................46 SmartNode 4130 Factory Configuration ......................49 End User License Agreement ..........................51... -
Page 4: Table Of Contents
Preventing electrostatic discharge damage ............................12 General observations ............................13 General conventions General information ............................14 ...........................15 SmartNode 4130 Overview ...........................16 SmartNode 4130 Rear Panel .........................18 SmartNode 4130 Front Panel Applications Overview ............................19 ................................20 Introduction ................20 Application—Edge Intelligence of Enterprise Communication ......................21 Application—ISDN to Full IP Conversion... - Page 5 SmartNode 4130 User Manual Table of Contents ................................33 Introduction Contact information..............................33 ...............................33 Online Support ...................33 Contacting Patton Technical Services for Free Support Warranty Service and Returned Merchandise Authorizations (RMAs)..............33 ............................33 Warranty coverage ..............................34 RMA numbers Compliance Information ........................... 35 ................................36 Compliance ................................36...
- Page 6 SmartNode 4130 User Manual Table of Contents ................................52 2. Title ................................52 3. Term ............................52 4. Grant of License ..............................52 5. Warranty ..............................53 6. Termination ............................53 7. Other Licenses...
-
Page 7: List Of Tables
SmartNode 4130 LED Definitions ........ -
Page 8: List Of Figures
Power LED (SmartNode 4130 shown) ........ -
Page 9: About This Guide
About this guide This guide describes the SmartNode 4130 hardware, installation and basic configuration. For detailed software configuration information refer to the Trinity Software Configuration Guide and the available Knowledgebase. Audience This guide is intended for the following users: •... - Page 10 SmartNode 4130 User Manual About this guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential extender problems. Warnings are intended to prevent safety hazards that could result in personal injury.
-
Page 11: Safety When Working With Electricity
SmartNode 4130 User Manual About this guide Safety when working with electricity • This device contains no user serviceable parts. The device can only be repaired by qualified service person- nel. WARNING • Do not open the device when the power cord is con- nected. -
Page 12: Preventing Electrostatic Discharge Damage
SmartNode 4130 User Manual About this guide Preventing electrostatic discharge damage When starting to install interface cards place the interface card on its shielded plastic bag if you lay it on your bench. Electrostatic Discharge (ESD) can damage equipment and impair electrical circuitry. -
Page 13: General Conventions
SmartNode 4130 User Manual About this guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. General conventions The procedures described in this manual use the following text conventions: Table 1. General conventions... -
Page 14: General Information
Chapter 1 General information Chapter contents SmartNode 4130 Overview ...........................15 SmartNode 4130 Rear Panel ...........................15 Ports descriptions ............................16 SmartNode 4130 Front Panel .........................18... -
Page 15: Smartnode 4130 Overview
1 • General information SmartNode 4130 Overview The SmartNode 4130 series comes with 2 or 4 BRI ports and with ISDN port fallback relay (depending on model /R) solving many VoIP network integration problems encountered in real-world installations. If available, the PSTN line can also synchronize the gateway. For applications without a PSTN line available the optional ISDN HP (high precision clock /HP) provides an error-free ISDN data and fax transmissions. -
Page 16: Smartnode 4130 Rear Panel
SmartNode 4130 Rear Panel The SmartNode 4130 is a compact ISDN VoIP gateway that supports eight VoIP or Fax calls, by using either G.711, G.722, T.38 or any other codec as indicated on the Datasheet. The SmartNode 4130 rear panel ports... -
Page 17: Rear Panel Ports (Continued)
SmartNode 4130 User Manual 1 • General information Table 3. Rear Panel Ports (Continued) Port Description Console Used for service and maintenance, the console port (see figure 2) an RS-232 RJ-45 connector, connects the product to a serial terminal such as a PC or ASCII Terminal (also called a dumb terminal). -
Page 18: Smartnode 4130 Front Panel
SmartNode 4130 User Manual 1 • General information Figure 3. SmartNode 4130 front panel SmartNode 4130 Front Panel Figure 3 shows SmartNode 4130 LEDs, the LED definitions are listed in table 4 Table 4. SmartNode 4130 LED Definitions Description Note... -
Page 19: Applications Overview
Chapter 2 Applications Overview Chapter contents Introduction ................................20 Application—Edge Intelligence of Enterprise Communication ................20 How it works: ............................21 Application—Multi-service ISDN, Secure VoIP and Data Routing Solution ............21... -
Page 20: Introduction
SmartNode 4130 User Manual 2 • Applications Overview Introduction Patton’s SmartNode gateway delivers the features needed for advanced voice-over-IP network applications. They combine high quality voice-over-IP with powerful quality to build professional, secure and reliable VoIP installations. This chapter describes typical applications the SmartNode is uniquely suited for. -
Page 21: Application-Isdn To Full Ip Conversion
Application—ISDN to Full IP Conversion The SmartNode 4130 provides excellent VoIP and security features for seamless network integration. All BRI ports are configurable to be TE or NT, you can thus connect your telco line(s) as well as a PBX or ISDN termi- nals. -
Page 22: Smartnode Installation
Chapter 3 SmartNode Installation Chapter contents Planning the installation ............................23 Site log ................................23 Network information ............................23 Network Diagram ............................23 IP related information .............................23 Software tools ..............................24 Power source ..............................24 Location and mounting requirements ......................24 Installing the Patton SmartNode Gateway......................24 Placing the SmartNode ...........................24 Installing cables ...............................25... -
Page 23: Planning The Installation
Draw a network overview diagram that displays all neighboring IP nodes, connected elements and telephony components. IP related information Before you can set up the basic IP connectivity for your SmartNode 4130 you should have the following infor- mation: •... -
Page 24: Software Tools
SmartNode 4130User Manual 3 • SmartNode Installation • IP addresses and/or URL of SIP servers or Internet telephony services (if used) • Login and password for PPPoE Accesss • Login and Password for SIP based telephony services • IP addresses of central TFTP server used for configuration upload and download (optional) Software tools You will need a PC (or equivalent) with Windows Telnet or a program such as Tera Term Pro or Putty to con- figure the software on your SmartNode Gateway.... -
Page 25: Installing Cables
D, “Port pin-outs” on page Connecting the 10/100/1000Base-T Ethernet WAN cable The SmartNode 4130 has automatic MDX (auto-cross-over) detection and configuration on the Ethernet port. The port can be connected to a host or hub/switch with a straight-through wired cable. •... -
Page 26: Power Led (Smartnode 4130 Shown)
2 on page 16). There are no user-serviceable parts in the power supply section of the model SN4130. Contact Patton Electronics Technical Support at support@patton.com for more information CAUTION 2. Verify that the AC power cord included with your device is compatible with local standards. If it is not, refer to “Contacting Patton for Assistance”... -
Page 27: Initial Configuration
Chapter 4 Initial Configuration Chapter contents Introduction ................................28 Connecting the SmartNode to your Laptop PC ....................28 Configure the Desired IP Address..........................30 Factory-default IP Settings ..........................30 Login ................................30 Changing the WAN IP address ........................30 Loading the Configuration (optional)........................31 Additional Information ............................31... -
Page 28: Introduction
SmartNode 4130 User Manual 4 • Initial Configuration Introduction This chapter leads you through the basic steps to set up a new SmartNode and to download a configuration. Setting up a new SmartNode consists of the following main steps: Note If you haven’t already installed the SmartNode, refer to Chapter 3,... -
Page 29: Connecting The Smartnode To Your Laptop/ Pc
SmartNode 4130 User Manual 4 • Initial Configuration o l e Figure 7. Connecting the SmartNode to your Laptop/ PC DHCP Server WAN (ETH 0/0) Network Figure 8. Connecting SN4130 and PC to LAN network with DHCP server. You can check the connection to the SmartNode by executing the ping command from the PC command win- dow as follows: ... -
Page 30: Configure The Desired Ip Address
SmartNode 4130 User Manual 4 • Initial Configuration Configure the Desired IP Address Factory-default IP Settings The factory default configuration for the Ethernet interface is listed in table 6. The interface bound to ETH 0/0 (WAN) has a DHCP client running and a fixed IP address. -
Page 31: Loading The Configuration (Optional)
SmartNode 4130 User Manual 4 • Initial Configuration 192.168.1.1(ctx-ip)[Router]#interface WAN 192.168.1.1(if-ip)[WAN]#no ipaddress 192.168.1.1(if-ip)[WAN]#ipaddress WAN 172.16.1.99/24 2002-10-28T00:09:40 : LOGINFO : Link down on interface WAN. 2002-10-29T00:09:40 : LOGINFO : Link up on interface WAN. 172.16.1.99(if-ip)[WAN]# ... -
Page 32: Contacting Patton For Assistance
Chapter 5 Contacting Patton for Assistance Chapter contents Introduction ................................33 Contact information..............................33 Online Support ...............................33 Contacting Patton Technical Services for Free Support ...................33 Warranty Service and Returned Merchandise Authorizations (RMAs)..............33 Warranty coverage ............................33 Out-of-warranty service ..........................34 Returns for credit ............................34 Return for credit policy ..........................34 RMA numbers... -
Page 33: Introduction
(RMA). Contact information Patton Electronics offers a wide array of free technical services. If you have questions about any of our other products we recommend you begin your search for answers by using our technical knowledge base. Here, we... -
Page 34: Rma Numbers
SmartNode 4130 User Manual 5 • Contacting Patton for Assistance Out-of-warranty service Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastro- phes may require replacement. -
Page 35: Compliance Information
Appendix A Compliance Information Chapter contents Compliance ................................36 ................................36 Safety ................................36 Radio and TV interference ............................36 CE Declaration of Conformity ..........................36 Authorized European Representative ........................36 ISDN Compliance ..............................37... -
Page 36: Compliance
AC outlet (such that the computing equipment and receiver are on different branches). CE Declaration of Conformity Patton Electronics, Inc declares that this device is in compliance with the essential requirements and other pro- visions of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recognition of their conformity. -
Page 37: Isdn Compliance
SmartNode 4130 User Manual A • Compliance Information ISDN Compliance The device is approved for connection to the public ISDN telecommunication network. For the ISDN connection to a carrier network, it shall be con- nected to a network termination device and not connected directly to an outside POTS line. -
Page 38: Specifications
Appendix B Specifications Chapter contents DSP..................................39 Voice Connectivity ..............................39 Data Connectivity ..............................39 Voice Processing (signalling dependent) ........................39 Fax and modem support............................40 Voice Signalling..............................40 Voice Routing—session router ..........................40 IP Services ................................41 Management .................................41 System ...................................41 Physical .................................41... -
Page 39: Dsp
SmartNode 4130 User Manual B • Specifications Note Refer to the software feature matrix for the most up-to-date specifications. One 4 or 8 channel DSP Voice Connectivity 2 or 4 ISDN BRI S0/T0 (S/T), 4-wire RJ45 ports NT/TE configurable per port Point-to-point, point-to-multipoint configurable Life-line bypass relay between BRI 0/0 and BRI 0/1 ports (Depends on model;... -
Page 40: Fax And Modem Support
SmartNode 4130 User Manual B • Specifications Fax and modem support Automatic fax and modem detection Codec fallback for modem-bypass T.38 Fax-Relay (Gr. 3 Fax, 9.6 k, 14.4 K) G.711 Fax-Bypass Voice Signalling SIPv2 SIPv2 over TLS optional SIP call transfer, redirect... -
Page 41: Ip Services
SmartNode 4130 User Manual B • Specifications IP Services IPv4; IPv6 basic functionalities ICMP redirect (RFC 792); Packet fragmentation DiffServe/ToS set or queue per header bits Packet Policing discards excess traffic DHCP client and server DNS client and relay-server, DynDNS Management Web-based GUI;... -
Page 42: Cabling
Appendix C Cabling Chapter contents Introduction ................................43 Serial Console................................43 Ethernet ................................44 ISDN BRI ................................45... -
Page 43: Introduction
SmartNode 4130 User Manual C • Cabling Introduction This section provides information on the cables used to connect the SmartNode to the existing network infra- structure and to third party products. Serial Console The SmartNode can be connected to a serial terminal over its serial console port, as depicted in... -
Page 44: Ethernet
SmartNode 4130 User Manual C • Cabling Ethernet Ethernet devices (10/100/1000 Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. The Ethernet port on the SN4130 is Auto-MDX. Use any straight or crossover cable to a host, hubs, switches, PCs or other devices. -
Page 45: Isdn Bri
SmartNode 4130 User Manual C • Cabling ISDN BRI The ISDN ports are connected to ISDN terminals (Phones, PBXs) or an ISDN NT using cables terminated with RJ-45 connectors. Use straight-through cables to connect to the S/T port of your NT or phones/PBX. - Page 46 Appendix D Port pin-outs Chapter contents Introduction ................................47 Console port................................47 Ethernet ................................47 ISDN BRI (NT/Net or TE/User) ports (0/0-0/3) ....................48...
-
Page 47: Introduction
SmartNode 4130 User Manual D • Port pin-outs Introduction This section provides pin-out information for the ports of the SmartNode. Console port (N/C) (N/C) (N/C) Pins 1 & 3 are connected together Figure 13. EIA-561 (RJ-45 8-pin) port Note N/C means no internal electrical connection. -
Page 48: D Port Pin-Outs
SmartNode 4130 User Manual D • Port pin-outs Table 8. 1000Base-T RJ-45 Socket Signal TRD0+ TRD0- TRD1+ TRD1- TRD2+ TRD2- TRD3+ TRD3- ISDN BRI (NT/Net or TE/User) ports (0/0-0/3) The BRI phone port uses an 8-pin RJ-45 connector (the pinout shown in table 9 Table 9. -
Page 49: Smartnode 4130 Factory Configuration
Appendix E SmartNode 4130 Factory Configuration Chapter contents Introduction ................................50... -
Page 50: Introduction
SmartNode 4130 User Manual E • SmartNode 4130 Factory Configuration Introduction The factory configuration settings for SmartNode 4130 series can be obtained with the following command through the CLI; login: administrator password: <Enter> 192.168.1.1>show config:shipping-config Please see Chapter 4, "Initial Configuration"... -
Page 51: F End User License Agreement
Appendix F End User License Agreement Chapter contents End User License Agreement ..........................52 1. Definitions ..............................52 2. Title ................................52 3. Term ................................52 4. Grant of License ............................52 5. Warranty ..............................52 6. Termination ..............................53 7. Other Licenses ............................53... -
Page 52: End User License Agreement
Program(s), even if Patton Electronics Company has been advised of the possibility of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you. -
Page 53: Termination
The End user may terminate this agreement by returning the Designated Equipment and destroying all copies of the licensed Program(s). Patton Electronics Company may terminate this Agreement should End User violate any of the provi- sions of section, “4. Grant of License”...
