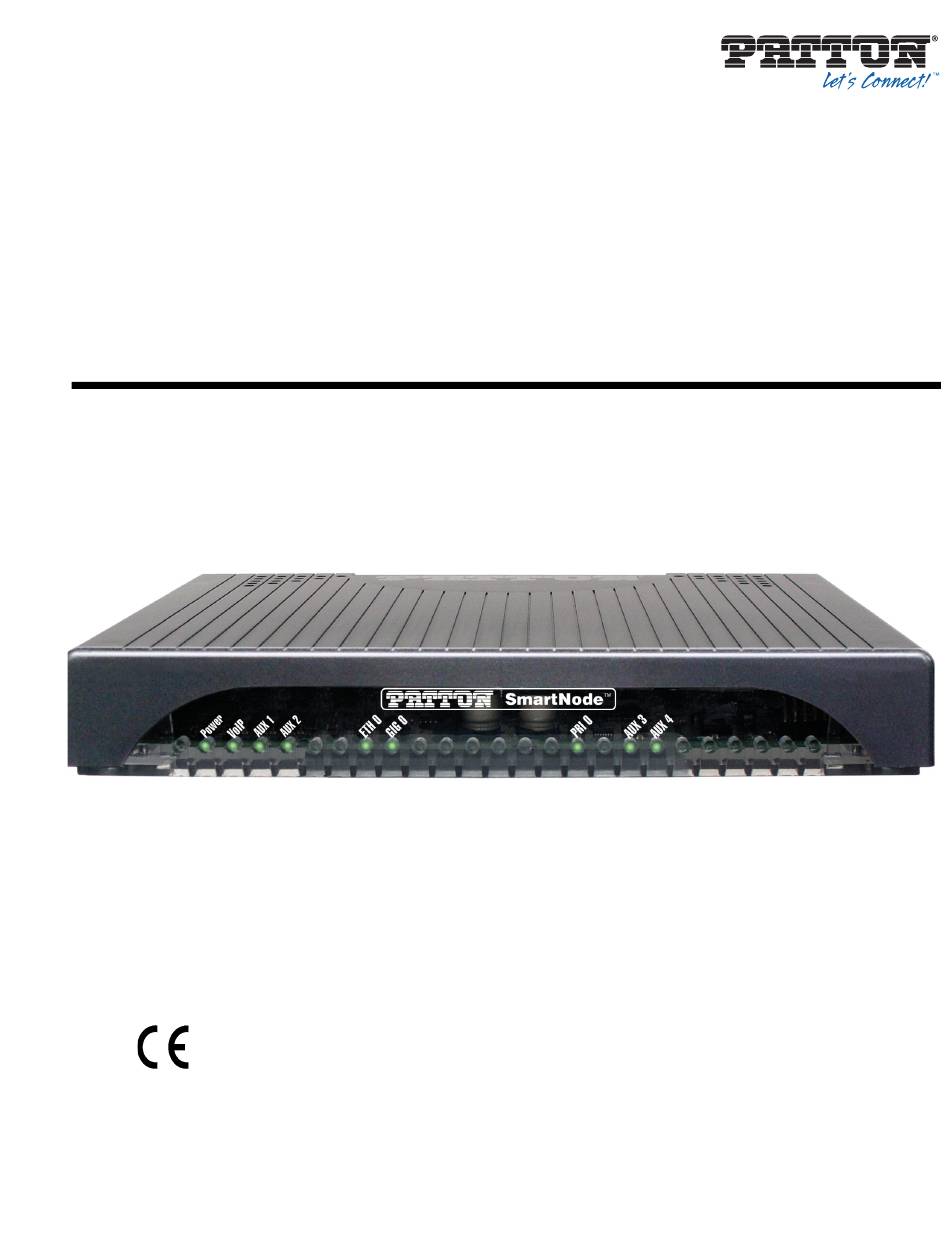

- Page 1 SmartNode 4170 E1/T1 PRI VoIP Gateway User Manual This is a Class A device and is not intended for use in a residential environment. +1 (301) 975-1000 Sales Office: +1 (301) 975-1007 Technical Support: support@patton.com E-mail: www.patton.com WWW: Part Number: 07MSN4170-GS, Rev. A...
- Page 2 Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
-
Page 3: Summary Table Of Contents
............................19 SmartNode Installation............................21 Initial Configuration............................26 Contacting Patton for Assistance ........................31 Compliance Information ........................... 34 Specifications ..............................37 Cabling ................................41 Port pin-outs ..............................45 SmartNode 4170 Factory Configuration ......................48 End User License Agreement ..........................50... -
Page 4: Table Of Contents
Preventing electrostatic discharge damage ............................12 General observations ............................13 General conventions General Information ............................14 ...........................15 SmartNode 4170 Overview ...........................15 SmartNode 4170 Rear Panel .........................18 SmartNode 4170 Front Panel Applications Overview ............................19 ................................20 Introduction ......................20 Application—Convert Legacy PBX to VoIP SmartNode Installation............................ - Page 5 SmartNode 4170 User Manual Table of Contents ................................32 Introduction Contact information..............................32 ...................32 Contacting Patton Technical Services for Free Support Warranty Service and Returned Merchandise Authorizations (RMAs)..............32 ............................32 Warranty coverage ..............................33 RMA numbers Compliance Information ........................... 34 ................................35 Compliance ................................35 ................................35 Safety ............................35...
- Page 6 SmartNode 4170 User Manual Table of Contents ................................51 3. Term ............................51 4. Grant of License ..............................51 5. Warranty ..............................52 6. Termination ............................52 7. Other Licenses...
-
Page 7: List Of Figures
SmartNode 4170 front panel ........ -
Page 8: List Of Tables
SmartNode 4170 LED Definitions ........ -
Page 9: About This Guide
About this guide This guide describes the SmartNode 4170 hardware, installation and basic configuration. For detailed software configuration information refer to the Trinity Command Line Reference Guide and the available Wizard. Audience This guide is intended for the following users: •... - Page 10 SmartNode 4170 User Manual About this guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per- sonal injury.
-
Page 11: Safety When Working With Electricity
SmartNode 4170 User Manual About this guide Safety when working with electricity • This device contains no user serviceable parts. The device can only be repaired by qualified service person- nel. WARNING • Do not open the device when the power cord is con- nected. -
Page 12: Preventing Electrostatic Discharge Damage
SmartNode 4170 User Manual About this guide Preventing electrostatic discharge damage When starting to install interface cards place the interface card on its shielded plastic bag if you lay it on your bench. Electrostatic Discharge (ESD) can damage equipment and impair electrical circuitry. -
Page 13: General Conventions
SmartNode 4170 User Manual About this guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. General conventions The procedures described in this manual use the following text conventions: Table 1. General conventions... -
Page 14: General Information
Chapter 1 General Information Chapter contents SmartNode 4170 Overview ...........................15 SmartNode 4170 Rear Panel ...........................15 Ports descriptions ............................16 SmartNode 4170 Front Panel .........................18... -
Page 15: Smartnode 4170 Overview

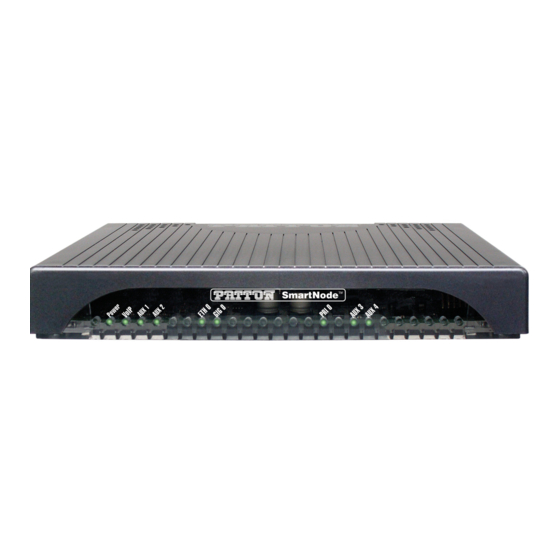

Figure 1. SmartNode 4170 (Front) The SmartNode 4170 series consists of several models: see the complete SKU list on the corresponding product page on www.patton.com. All the SN4170 models come equipped with one 10/100/1000 Base-T Ethernet port and 1PRI (E1/T1) port. -
Page 16: Sn4170 Rear Panel
SmartNode 4170 Rear Panel The SmartNode 4170 is a compact VoIP Gateway that supports 15 up to 30 VoIP or Fax calls, by using either G.711, G.722, T.38 or any other codec as indicated under Voice Processing in Appendix B, “Specifications”... -
Page 17: Rear Panel Ports (Continued)
SmartNode 4170 User Manual 1 • General Information Table 3. Rear Panel Ports (Continued) Port Description Console figure 2 Used for service and maintenance, the console port (see page 16) an RS-232 RJ-45 connector, connects the product to a serial terminal such as a PC or ASCII Terminal (also called a dumb terminal). -
Page 18: Smartnode 4170 Front Panel
SmartNode 4170 User Manual 1 • General Information Figure 3. SmartNode 4170 front panel SmartNode 4170 Front Panel Figure 3 shows SmartNode 4170 LEDs, the LED definitions are listed in table 4 Table 4. SmartNode 4170 LED Definitions Description Note... -
Page 19: Applications Overview
Chapter 2 Applications Overview Chapter contents Introduction ................................20 Application—Convert Legacy PBX to VoIP ......................20 How it works: ............................20... -
Page 20: Introduction
SmartNode 4170 User Manual 2 • Applications Overview Introduction SmartNode products provide seamless network integration, continuous trouble-free operation and cost effective deployment to protect your investments for the future. Preserve investments in legacy phone equipment while taking the next steps toward unified communications with the SN4170 VoIP Gateway. -
Page 21: Smartnode Installation
Chapter 3 SmartNode Installation Chapter contents Planning the Installation............................22 Site log ................................22 Network information ............................22 Network Diagram ............................22 IP related information .............................22 Software tools ..............................23 Power source ..............................23 Location and mounting requirements ......................23 Installing the Patton SmartNode VoIP Gateway....................23 Placing the SmartNode ...........................23 Installing cables ...............................24... -
Page 22: Planning The Installation
Draw a network overview diagram that displays all neighboring IP nodes, connected elements and telephony components. IP related information Before you can set up the basic IP connectivity for your SmartNode 4170 you should have the following infor- mation: •... -
Page 23: Software Tools
SmartNode 4170 User Manual 3 • SmartNode Installation • Login and password for PPPoE Accesss • Login and Password for SIP based telephony services • IP addresses of central TFTP server used for configuration upload and download (optional) Software tools You will need a PC (or equivalent) with Windows Telnet or a program such as Tera Term Pro or Putty to con- figure the software on your SmartNode gateway.... -
Page 24: Installing Cables
D, “Port pin-outs” on page Connecting the 10/100/1000Base-T Ethernet cable The SmartNode 4170 has automatic MDX (auto-cross-over) detection and configuration on the Ethernet port. The port can be connected to a host or hub/switch with a straight-through wired cable. •... -
Page 25: Power Led
2 on page 16). There are no user-serviceable parts in the power supply section of the model SN4170. Contact Patton Electronics Technical Support at support@patton.com for more information CAUTION 2. Verify that the AC power cord included with your device is compatible with local standards. If it is not, refer to “Contacting Patton for Assistance”... -
Page 26: Initial Configuration
Chapter 4 Initial Configuration Chapter contents Introduction ................................27 Connecting the SmartNode to Your Laptop PC ....................27 Configure the Desired IP Address..........................28 Factory-default IP Settings ..........................28 Login ................................28 Changing the WAN IP address ........................28 Connecting the SmartNode to the Network ......................29 Loading the Configuration (optional)........................30 Additional Information... -
Page 27: Introduction
POTS line. CAUTION The SmartNode 4170 Series is equipped with an Auto-MDX Ethernet port, so you can use straight-through cables for host or hub/switch connections (see figure 6). Figure 6. Connecting the SmartNode to your Laptop PC... -
Page 28: Configure The Desired Ip Address
SmartNode 4170 User Manual 4 • Initial Configuration The SmartNode comes with a built-in DHCP client and a fixed IP address to simplify configuration. The SmartNode will receive an IP address from the DHCP server in the network or it can be directly accessed using the static IP address. -
Page 29: Connecting The Smartnode To The Network
Connecting the SmartNode to the Network In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port. The SmartNode 4170 Series is equipped with an Auto-MDX Ethernet port, so you can use straight through or crossover cables for host or hub/switch connections. -
Page 30: Loading The Configuration (Optional)
SmartNode 4170 User Manual 4 • Initial Configuration DHCP Server Laptop PC WAN (ETH 0/0) Network Figure 7. Connecting the SmartNode to the network Loading the Configuration (optional) The Patton Community provides several WebWizards to help with setting up your SmartNode configuration. -
Page 31: Contacting Patton For Assistance
Chapter 5 Contacting Patton for Assistance Chapter contents Introduction ................................32 Contact information..............................32 Contacting Patton Technical Services for Free Support ...................32 Warranty Service and Returned Merchandise Authorizations (RMAs)..............32 Warranty coverage ............................32 Out-of-warranty service ..........................33 Returns for credit ............................33 Return for credit policy ..........................33 RMA numbers ..............................33... -
Page 32: Introduction
(RMA). Contact information Patton Electronics offers a wide array of free technical services. If you have questions about any of our other products we recommend you begin your search for answers by using our technical knowledge base. Here, we have gathered together many of the more commonly asked questions and compiled them into a searchable database to help you quickly solve your problems. -
Page 33: Rma Numbers
SmartNode 4170 User Manual 5 • Contacting Patton for Assistance Out-of-warranty service Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastro- phes may require replacement. -
Page 34: Compliance Information
Appendix A Compliance Information Chapter contents Compliance ................................35 ................................35 Safety ................................35 Radio and TV interference ............................35 CE Declaration of Conformity ..........................35 Authorized European Representative ........................35 ISDN Compliance ..............................36... -
Page 35: Compliance
AC outlet (such that the computing equipment and receiver are on different branches). CE Declaration of Conformity Patton Electronics, Inc declares that this device is in compliance with the essential requirements and other pro- visions of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recognition of their conformity. -
Page 36: Isdn Compliance
SmartNode 4170 User Manual A • Compliance Information ISDN Compliance The device is approved for connection to the public ISDN telecommunication network. For the ISDN connection to a carrier network, it shall be con- nected to a network termination device and not connected directly to an outside POTS line. -
Page 37: Specifications
Appendix B Specifications Chapter contents DSP..................................38 Voice Connectivity ..............................38 Data Connectivity ..............................38 Voice Processing (signalling dependent) ........................38 Fax and modem support............................39 Voice Signalling..............................39 Voice Routing—session gateway..........................39 IP Services ................................40 Management .................................40 System ...................................40 Physical .................................40... -
Page 38: Dsp
SmartNode 4170 User Manual B • Specifications Note Refer to the software feature matrix for the most up-to-date specifications. Two 16 channel DSP Voice Connectivity 1 ISDN PRI port, 4-wire RJ45 port NT/TE configurable per port (layer 1 pin-out does not change) -
Page 39: Fax And Modem Support
SmartNode 4170 User Manual B • Specifications Fax and modem support Automatic fax and modem detection Codec fallback for modem-bypass T.38 Fax-Relay (Gr. 3 Fax, 9.6 k, 14.4 K) G.711 Fax-Bypass Voice Signalling SIPv2, SIPv2 over TLS SIP call transfer, redirect... -
Page 40: Ip Services
SmartNode 4170 User Manual B • Specifications IP Services IPv4 gateway; IPv6 basic functionalities Programmable static routes and policy-routing ICMP redirect (RFC 792); Packet fragmentation DiffServe/ToS set or queue per header bits Packet Policing discards excess traffic DHCP client and server... -
Page 41: Cabling
Appendix C Cabling Chapter contents Introduction ................................42 Serial Console................................42 Ethernet ................................43 ISDN PRI (E1/T1) ...............................44... -
Page 42: Introduction
SmartNode 4170 User Manual C • Cabling Introduction This section provides information on the cables used to connect the SmartNode to the existing network infra- structure and to third party products. Serial Console The SmartNode can be connected to a serial terminal over its serial console port, as depicted in figure 8. -
Page 43: Ethernet
SmartNode 4170 User Manual C • Cabling Ethernet Ethernet devices (10/100/1000 Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. The Ethernet port on the SN4170 is Auto-MDX. Use any straight or crossover cable to a host, hubs, switches, PCs or other devices. -
Page 44: Isdn Pri (E1/T1)
SmartNode 4170 User Manual C • Cabling ISDN PRI (E1/T1) The E1/T1 PRI port 0/0 uses the (LE) pinout. In most cases, a straight-through RJ-45 to RJ-45 can be used to connect the device to a PSTN NT. However, pinouts may vary depending on the pinout being used by the NT. -
Page 45: Port Pin-Outs
Appendix D Port pin-outs Chapter contents Introduction ................................46 Console port................................46 Ethernet ................................46 ISDN PRI (E1/T1) Port Pin-outs..........................47... -
Page 46: Introduction
SmartNode 4170 User Manual D • Port pin-outs Introduction This section provides pin-out information for the ports of the SmartNode. Console port (N/C) (N/C) (N/C) Pins 1 & 3 are connected together Figure 13. EIA-561 (RJ-45 8-pin) port Note N/C means no internal electrical connection. -
Page 47: Isdn Pri (E1/T1) Port Pin-Outs
SmartNode 4170 User Manual D • Port pin-outs Table 8. 1000Base-T RJ-45 Socket Signal TRD0+ TRD0- TRD1+ TRD1- TRD2+ TRD2- TRD3+ TRD3- ISDN PRI (E1/T1) Port Pin-outs Table 9. Port 0/0 Signal RX_TIP RX_RING TX_TIP TX_RING Note Pins not listed are not used... -
Page 48: Smartnode 4170 Factory Configuration
Appendix E SmartNode 4170 Factory Configuration Chapter contents Introduction ................................49... -
Page 49: Introduction
SmartNode 4170 User Manual E • SmartNode 4170 Factory Configuration Introduction The factory configuration settings for SmartNode 4170 series can be obtained with the following command through the CLI; login: admin password: <Enter> 192.168.1.1>show config:shipping-config Please see Chapter 4, "Initial Configuration"... -
Page 50: F End User License Agreement
Appendix F End User License Agreement Chapter contents End User License Agreement ..........................51 1. Definitions ..............................51 2. Title ................................51 3. Term ................................51 4. Grant of License ............................51 5. Warranty ..............................51 6. Termination ..............................52 7. Other Licenses ............................52... -
Page 51: End User License Agreement
Program(s), even if Patton Electronics Company has been advised of the possibility of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you. -
Page 52: Termination
The End user may terminate this agreement by returning the Designated Equipment and destroying all copies of the licensed Program(s). Patton Electronics Company may terminate this Agreement should End User violate any of the provi- sions of section, “4. Grant of License”...
