SmartNode 1000 and 2000 Series Getting Started Guide

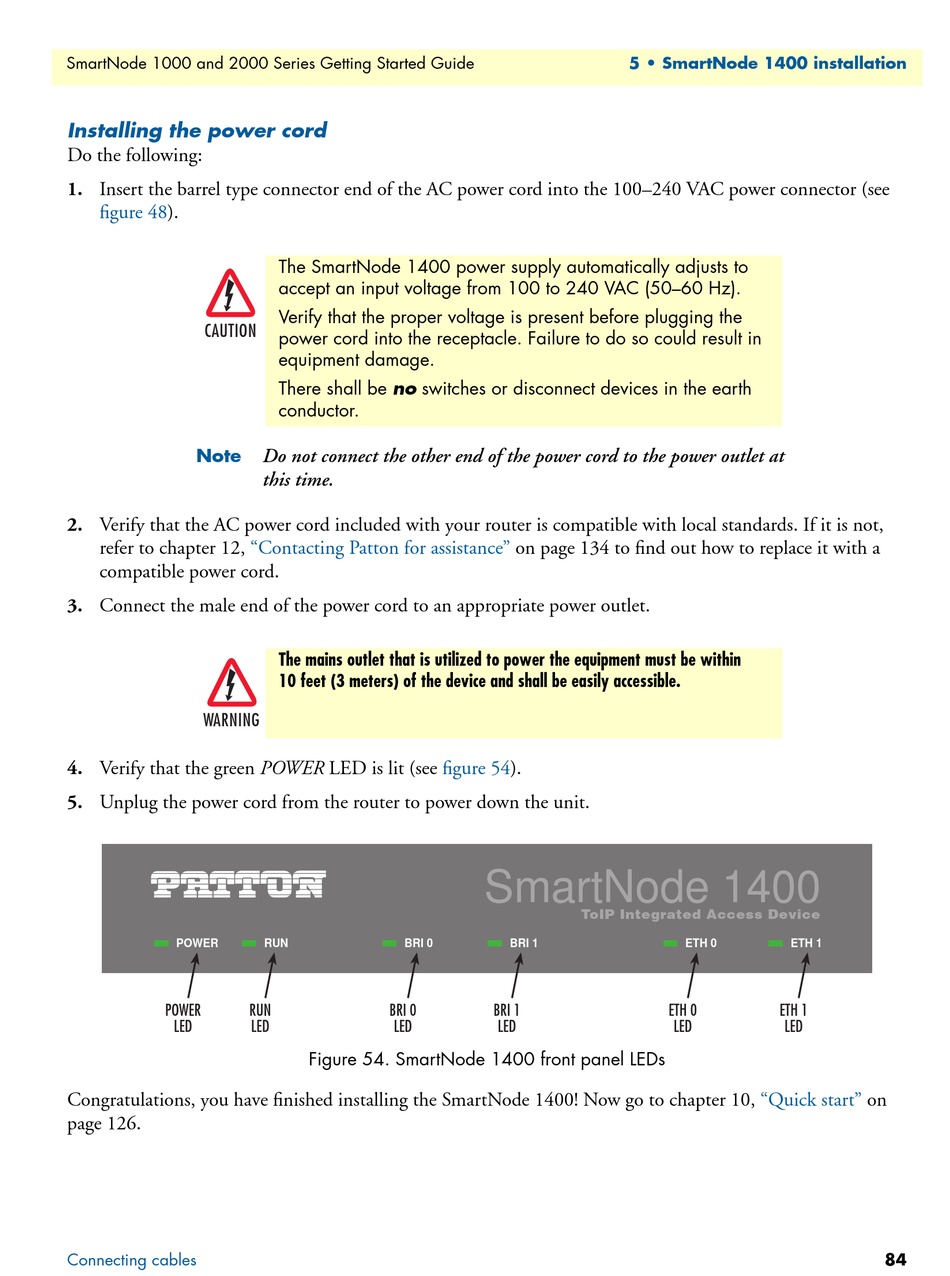

Installing the power cord

Do the following:
1. Insert the barrel type connector end of the AC power cord into the 100–240 VAC power connector (see
figure 48).
CAUTION
Note
2. Verify that the AC power cord included with your router is compatible with local standards. If it is not,
refer to chapter 12,
compatible power cord.
3. Connect the male end of the power cord to an appropriate power outlet.
WARNING
4. Verify that the green POWER LED is lit (see
5. Unplug the power cord from the router to power down the unit.
POWER
POWER
LED
Congratulations, you have finished installing the SmartNode 1400! Now go to chapter 10,
page 126.
Connecting cables
The SmartNode 1400 power supply automatically adjusts to
accept an input voltage from 100 to 240 VAC (50–60 Hz).
Verify that the proper voltage is present before plugging the
power cord into the receptacle. Failure to do so could result in
equipment damage.
There shall be no switches or disconnect devices in the earth
conductor.
Do not connect the other end of the power cord to the power outlet at
this time.
"Contacting Patton for assistance"
The mains outlet that is utilized to power the equipment must be within
10 feet (3 meters) of the device and shall be easily accessible.
RUN BRI 0
RUN BRI 0
LED LED
Figure 54. SmartNode 1400 front panel LEDs
on page 134 to find out how to replace it with a
figure 54).
SmartNode 1400
ToIP Integrated Access Device
BRI 1
BRI 1
LED
5 • SmartNode 1400 installation
ETH 0 ETH 1
ETH 0 ETH 1
LED LED
"Quick start" on
