Quadra-Fire 57ST-ACC Installation Manual

5700 step top wood stove series
Hide thumbs Also See for 57ST-ACC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

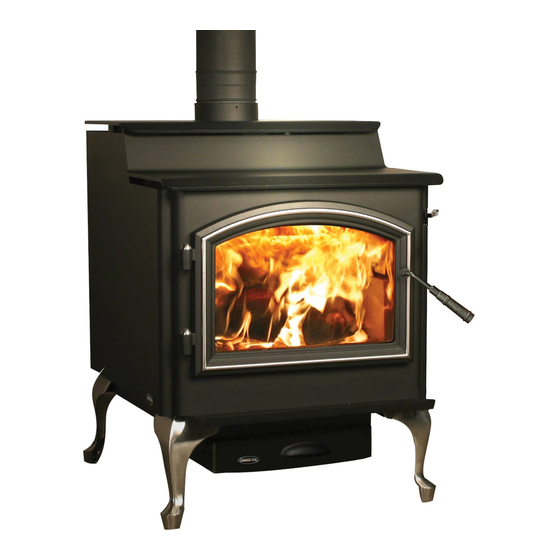

5700 STEP TOP WOOD STOVE SERIES
Automatic Combustion Control (ACC)
Model(s):
57ST-ACC
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfi re and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should
be performed by qualifi ed personnel. Hearth &
Home Technologies recommends NFI certifi ed
professionals, or technicians supervised by an NFI
certifi ed professional.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
Tested and
Portland
O-T L
Listed by
Oregon USA
C
US
OMNI-Test Laboratories, Inc.
If the information in these instruc-
tions is not followed exactly, a
fi re could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafi re.com
7038-206E
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
NOTE
August 3, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57ST-ACC and is the answer not in the manual?

Questions and answers

Related Manuals for Quadra-Fire 57ST-ACC

Summary of Contents for Quadra-Fire 57ST-ACC

  • Page 1 Model(s): • Do not store or use gasoline or other fl am- 57ST-ACC mable vapors and liquids in the vicinity of this or any other appliance. • Do not overfi re - If heater or chimney con- nector glows, you are overfi...

  • Page 2: Table Of Contents

    D. Chimney Termination Requirements ........9 G. Outside Air Kit Installation ..........22 E. 2-10-3 Rule ..............10 H. Blower (Optional) ..............23 Mobile Home Installation ....24 Accessory List .........25 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7038-206E August 3, 2015...

  • Page 3: Important Safety Information

    UL1482-96 and ULC S627-00 and (UM) Hearth & Home Technologies disclaims any 84-HUD, Mobile Home Approved. responsibility for, and the warranty will be voided The Quadra-Fire 5700 Series Wood Stove (ACC) meets the by, the following actions: U.S. Environmental Protection Agency’s crib wood emission •...

  • Page 4: Getting Started

    5700 STEP TOP Install Guide Getting Started A. Design and Installation Considerations B. Fire Safety Consideration must be given to: o provide reasonable fi re safety, the following should be given serious consideration: • Safety • Convenience Install at least one smoke detector on each fl oor of •...

  • Page 5: Negative Pressure

    5700 STEP TOP C. Negative Pressure E. Inspect Appliance and Components • Remove appliance and components from packaging and WARNING inspect for damage. • Vent system components and doors are shipped in Asphyxiation Risk. separate packages. • Negative pressure can cause spillage of combus- •...

  • Page 6: Install Checklist

    5700 STEP TOP F. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. Customer: Date Installed: Lot/Address: Location of Fireplace: Installer:...

  • Page 7: Dimensions And Clearances

    5700 STEP TOP Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 5700 Pedestal Model 5700 Leg Model 27.0 in. (686mm) 10-1/4 in. 13-1/2 in. (260mm) (343mm) 14-15/16 in. 17-1/8 in. (435mm) (380mm) 9-3/16 in.

  • Page 8: Clearances To Combustibles

    5700 STEP TOP B. Clearances to Combustibles (UL and ULC) NOTE: A, C and F measurements are to center of fl ue INSTALLATION: Full Vertical or Horizontal with Vertical Rise SINGLE WALL PIPE - A, B, C and D dimensions are based off of standard 18” stove pipe clearances to combustibles or unit certifi ed clerances, which- ever is greater SINGLE WALL PIPE 15-1/2 [394]...

  • Page 9: Locating Your Stove & Chimney

    5700 STEP TOP C. Locating Your Stove & Chimney • Consider the appliance location in order to avoid fl oor Location of the appliance and chimney will affect perfor- and ceiling attic joists and rafters. mance. As shown in Figure 9.1 the chimney should: •...

  • Page 10: 2-10-3 Rule

    5700 STEP TOP E. 2-10-3 Rule These are safety requirements and are not meant to assure proper fl ue draft. This appliance is made with a 6 inch (152mm) diameter chimney connector as the fl ue collar on the unit. •...

  • Page 11: Chimney Systems

    5700 STEP TOP Chimney Systems A. Venting Systems 3. Construct a 17 inch x 17 inch (432mm x 432mm) outside dimension frame from 2 x 2 framing lumber to fi t into wall The venting system consists of: opening. Inside opening of frame should be no less than •...

  • Page 12: Chimney Systems

    5700 STEP TOP • The Listed connectors must conform to each other to Solid Pack Chimney with Metal Supports as a Thimble ensure a proper fi t and seal. C. Chimney Height / Rise and Run Fire Clay Flue • This product was designed for and tested on a 6 inch Liner (152mm) chimney, 14 to 16 feet (427-487cm) high, (in- with Airspace...

  • Page 13: Factory-Built Chimney

    5700 STEP TOP E. Factory-Built Chimney Listed Termination Cap The chimney can be new or existing, and must meet the following minimum requirements. Storm Collar • Must be a 6 inch (152mm) diameter (ID) high temperature chimney listed to UL 103 HT (2100 F) or Flashing ULC S629M.

  • Page 14: Masonry Chimney

    5700 STEP TOP F. Masonry Chimney Spark Arrestor Cap Fireclay Flue Liner Concrete Cap With Air Space Rafter Flashing 1 in. (25mm) Clearance With Firestop Ceiling Joist Eave Combustible Wall Thimble, 12 in. (305mm) Of Brick Sheathing Outside Air Rear Vent Outside Air Floor Termination Cap...

  • Page 15: Masonry Chimney Liner

    5700 STEP TOP G. Masonry Chimney Liner Wood Stud 2 in. For optimal performance, masonry chimneys used to vent (51mm) this appliance should be: Clearance from chimney wall Fireclay liner 5/8 in. 1. Lined with a 6 inch (152mm) stainless steel liner. (16mm) Minimum •...

  • Page 16: Securing Chimney Components

    (male) end pointing toward the insert. Figure 16.1. J. Chimney Height / Rise and Run LINER CONNECTOR To be sure that your Quadra-Fire insert burns properly, the chimney draft (static pressure) should be approximately -0.10 inches water column (W.C.) during a high burn and -0.04 inches W.C.

  • Page 17: Appliance Set-Up

    5700 STEP TOP Appliance Set-Up Pedestal Assembly and Ash Removal System (ARS) Installation NOTE: The Ash Removal System, must be installed fi rst before installing the pedestal. ARS Cover Included in Kit: Door assembly, door handle & magnet, ash drawer, fastener package. A cover plate that is required for a fl...
  • Page 18 5700 STEP TOP Pedestal and Ash Removal System (Cont’d) Installing Pedestal Assembly 1. Slide pedestal over adapter on bottom of stove and secure with screws supplied with the kit. Figure 18.1. 2. Line up holes in sides of pedestal with holes in adapter. 3.

  • Page 19: Leg Kit And Ash Removal System (Ars) Installation

    5700 STEP TOP Leg Kit and Ash Removal System (ARS) Installation Leg Brackets packaged inside firebox NOTE: The Ash Removal System, must be installed fi rst before installing the legs. Included in Kit: Door assembly, door handle & magnet, ash drawer, fastener package.

  • Page 20: Door Handle Assembly

    5700 STEP TOP C. Door Handle Assembly E. Calculating Alternate Floor Protection 1. Install washer on door handle shaft. Material Thermal Conductivity: k value 2. Slide door handle through door. 3. Install second washer(s) as shown. The k value indicates the amount of heat (in BTU’s) that will fl ow 4.
  • Page 21 5700 STEP TOP fuel loading door. Open the door and measure 8 inches WARNING (203mm) from the side edge of the opening in the face of the appliance. *See exception. Fire Risk. Hearth pads must be installed exactly as specifi ed. In Canada, it is necessary to install a fl...

  • Page 22: Outside Air Kit Installation

    5700 STEP TOP G. Outside Air Kit Installation 5. Floor Installation Alternative: In some instances you may not be able to install the fl ex pipe as show in Figure A source of air (oxygen) is necessary in order for combustion 22.2.

  • Page 23: Blower (Optional)

    5700 STEP TOP H. Blower (Optional) CAUTION 1. Align holes in mounting fl ange of blower with bolt holes in appliance. Blower should be positioned at bottom of rear Shock Risk. outer skin as shown in Figure 23.1. • Do NOT remove grounding prong from plug. 2.

  • Page 24: Mobile Home Installation

    5700 STEP TOP Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part Spark Arestor Cap OAK-ACC (depending on fl oor installation) for installation in a mobile home. 1. An outside air inlet must be provided for combustion See Storm Collar page 22 for installation information.

  • Page 25: Accessory List

    5700 STEP TOP Accessory List 57ST-ACC Service Parts Beginning Manufacturing Date: April 2009 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 26 5700 STEP TOP 7038-206E August 3, 2015...
  • Page 27 5700 STEP TOP August 3, 2015 7038-206E...

  • Page 28: Contact Information

    Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL...
