Quadra-Fire 57ST-ACC Owner's Manual

5700 step top wood stove series
Hide thumbs Also See for 57ST-ACC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Installation Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with question on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL

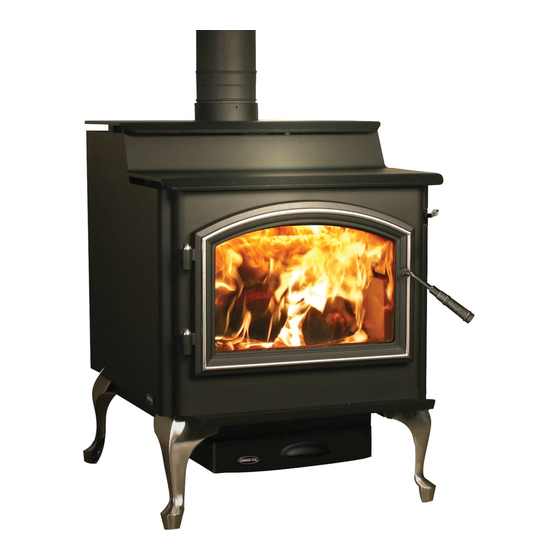

5700 STEP TOP WOOD STOVE SERIES
Automatic Combustion Control (ACC)
Model(s):
57ST-ACC
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfi re and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies recommends NFI certifi ed profession-
als, or technicians supervised by an NFI certifi ed
professional.
1
Owner's Manual
Operation & Care
Tested and
Portland
O-T L
Oregon USA
Listed by
C
US
OMNI-Test Laboratories, Inc.
7038-207E
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafi re.com
February 25, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57ST-ACC and is the answer not in the manual?

Questions and answers

Related Manuals for Quadra-Fire 57ST-ACC

Summary of Contents for Quadra-Fire 57ST-ACC

  • Page 1 • Do not store or use gasoline or other fl am- mable vapors and liquids in the vicinity of Model(s): this or any other appliance. 57ST-ACC • Do not overfi re - If heater or chimney con- nector glows, you are overfi ring. Overfi ring will void your warranty.

  • Page 2: Congratulations

    Hearth & Home Technologies welcomes you to our tradition tion of our stoves, inserts and fi replaces. And yet we are of excellence! In choosing a Quadra-Fire appliance, you old-fashioned when it comes to craftsmanship. Each unit have our assurance of commitment to quality, durability, and is meticulously fabricated and gold and nickel surfaces are performance.

  • Page 3: Table Of Contents

    5700 STEP TOP ACC Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. •...

  • Page 4: Warranty Policy

    5700 STEP TOP ACC Hearth & Home Technologies Inc. C. Warranty Policy LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...
  • Page 5 5700 STEP TOP ACC WARRANTY CONDITIONS: ‡ 7KLV ZDUUDQW\ RQO\ FRYHUV ++7 DSSOLDQFHV WKDW DUH SXUFKDVHG WKURXJK DQ ++7 DXWKRUL]HG GHDOHU RU GLVWULEXWRU $ OLVW RI ++7 DXWKRUL]HG GHDOHUV LV DYDLODEOH RQ WKH ++7 EUDQGHG ZHEVLWHV ‡ 7KLV ZDUUDQW\ LV RQO\ YDOLG ZKLOH WKH ++7 DSSOLDQFH UHPDLQV DW WKH VLWH RI RULJLQDO LQVWDOODWLRQ ‡...

  • Page 6: Quick Start Guide

    5700 STEP TOP ACC D. Quick Start Guide Note: These are generic drawings and may not represent your specifi c model. 10 Pieces of Newspaper, 10-20 Pieces of Dry Kindling ITEMS NEEDED FOR FIRST FIRE: and a Few Pieces of Dry Split Wood. OPEN AIR CONTROLS ADD NEWSPAPER LOAD WOOD...

  • Page 7: Listing And Code Approvals

    For assistance or additional information, consult a qualifi ed installer, service agency or your dealer. The Quadra-Fire 5700 Series Wood Stove (ACC) meets the U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2015.

  • Page 8: Operating Instructions

    In order to • Chimney fi re improve the situation, we at Quadra-Fire have developed cleaner-burning wood stoves that surpass the requirements 2. What To Do if Your Stove is Over-Firing for emissions established by our governing agencies.

  • Page 9: Automatic Combustion Control (Acc)

    5700 STEP TOP ACC The second function of the Start-Up Air Control is operation 2. Second Stage of the rear air system. The rear air is used primarily during The next stage of burning, the secondary stage, is the period a High Burn Rate.

  • Page 10: Burn Rates And Operating Effi Ciency

    5700 STEP TOP ACC Start-Up Air Control all the way back until it stops (HI 2. Burn Rate Air Control marker) and then pull forward until it stops. This activates This air supply enters at the upper front of the fi rebox, near the timer system (ACC).

  • Page 11: Building A Fire

    5700 STEP TOP ACC Operate appliance on High Burn 15 minutes a NOTE: Baffle Board & Blanket even day to help keep fl ue/chimney clean. with front tube & resting on all tubes G. Building A Fire Before lighting your fi rst fi re in the stove: 1.

  • Page 12: Correct Baffl E & Blanket Placement

    5700 STEP TOP ACC H. Correct Baffl e & Blanket Placement INCORRECT POSITIONS WARNING Fire Risk Firebox damage due to improper baffl e place- ment is not covered by warranty. Operate the wood burning appliance with the baffl e in the correct position only.

  • Page 13: Blower Operating Instructions

    5700 STEP TOP ACC I. Blower Operating Instructions Down (Closed) NOTE: If your Quadra-Fire wood stove is equipped with an optional blower, you should follow these guidelines: Up (Open) 1. Initial (cold) startup: Open both controls fully by rais- ing the Burn Rate Air Control all the way up until it stops and slide the Start-up Air Control back until it stops.

  • Page 14: Clear Space

    5700 STEP TOP ACC K. Clear Space • Do NOT place combustible objects within 4 ft (1.2 m) of the front of appliance. See Figure 14.1. • Mantel - avoid placing candles and other heat-sensitive objects on mantel or hearth. Heat may damage these objects.

  • Page 15: Maintenance And Service

    5700 STEP TOP ACC Maintenance and Service Start the fi rst inspection after the fi rst 2 months of use, or if A. Quick Reference Maintenance Guide performance changes, and adjust your schedule according- CAUTION! Allow the appliance to completely cool ly.

  • Page 16: General Maintenance

    5700 STEP TOP ACC B. General Maintenance 2. Ash Removal System (ARS) Operating and Cleaning 1. Creosote (Chimney) Cleaning Frequency: As necessary • By: Homeowner • Frequency: Every 2 months during heating season or • a. The stove and ashes must be completely cooled down as recommended by a certifi...
  • Page 17 5700 STEP TOP ACC 3. Disposal of Ashes Operating the appliance with the Burn Rate Air Control and Frequency: When ash is within 1-3/4 in. (44mm) of firebox • Start-Up Air Control all the way open for 15-20 minutes should remove the built up coating.

  • Page 18: Troubleshooting Guide

    5700 STEP TOP ACC Troubleshooting Guide With proper installation, operation, and maintenance your wood stove will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualifi ed service person in the diagnosis of a problem and the corrective action to be taken.

  • Page 19: Service Part Replacement

    Snap Disc Location Replace the door on the appliance. Figure 20.1 Quadra-Fire stoves are equipped with ceramic super heat- resistant glass, which can only be broken by impact or misuse. Do not slam stove door or impact the glass. When...

  • Page 20: Baffl E Removal

    5700 STEP TOP ACC D. Firebrick Replacement C. Baffl e Removal Replace the fi rebrick if they become crumbly and/or if there Remove all ash from the fi rebox, and extinguish all hot is a 1/4 inch (6.35mm) gap between the bricks. embers before disposal into a metal container.

  • Page 21: Tube Channel Assembly Replacement

    5700 STEP TOP ACC F. Tube Channel Assembly Replacement Removing Tube Channel Assembly 1. Remove the right side shield by removing 2 screws in the back using a Phillips head screw driver. NOTE: Service Space 2. Remove 4 screws from channel access cover and remove In order to replace the tube channel assembly a clearance cover.

  • Page 22: Reference Materials

    5700 STEP TOP ACC Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 7038-207E February 25, 2016...

  • Page 23: Service Parts & Accessories

    5700 STEP TOP ACC B. Service Parts & Accessories 57ST-ACC Service Parts Beginning Manufacturing Date: April 2009 Step Top Wood Stove Ending Manufacturing Date: Active Advanced Combustion Control Part number list on following page. 02/16 February 25, 2016 7038-207E...
  • Page 24 Gold 200-3180 Logo, Quadra-Fire Nickel 200-3240 436-5350 Black & Gold Doors Component Pack (Includes Nickel Spring Handles (1) 1/2” & (2) 1/4”, (2) Nickel Hinge Pins, Quadra-Fire Logo) Nickel Doors 436-5360 Spring Handle 832-0540 Door Handle Assemblies Fiber Handle SRV7033-071...
  • Page 25 5700 STEP TOP ACC 57ST-ACC Service Parts Beginning Manufacturing Date: April 2009 Ending Manufacturing Date: Active #18 Brick Set 18.5 18.8 18.8 18.4 18.1 18.8 18.1 18.8 18.1 18.1 18.2 18.1 18.1 18.1 18.7 18.1 18.6 18.1 18.6 18.1 18.7 18.1...
  • Page 26 5700 STEP TOP ACC 57ST-ACC Service Parts Beginning Manufacturing Date: April 2009 Ending Manufacturing Date: Active #29 Pedestal Assembly #30 Legs Assembly #28 Burn Rate Control Assembly 28.9 28.8 29.1 28.1 28.7 28.6 30.1 28.2 28.5 28.4 28.3 29.3 30.4 29.2...
  • Page 27 5700 STEP TOP ACC 57ST-ACC Service Parts Beginning Manufacturing Date: April 2009 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.

  • Page 28: Contact Information

    Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL...
