INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

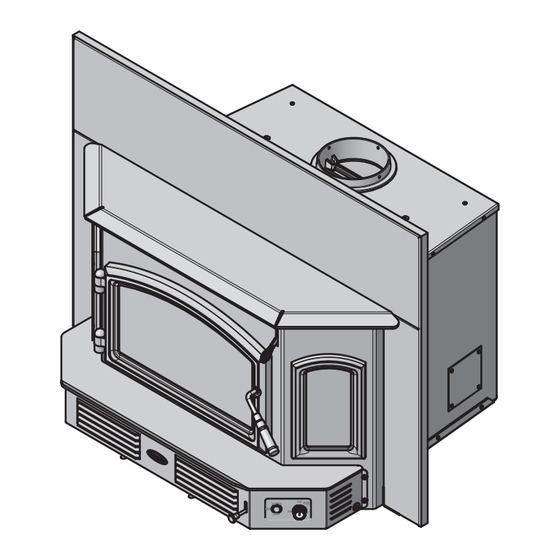

51-I ACC WOOD INSERT
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL:
51I-ACC-BK
This appliance has been retired.
Service parts pages within have been removed.
For replacement parts, please refer to the individual service parts
list located on the brand websites.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
R
If the information in these instructions is not
followed exactly, a fire could result causing
property damage, personal injury, or death.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
•
Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void your
warranty.
•
Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house
fire.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
•
Do not touch glass until it is cooled
•
Use leather gloves when reloading fuel
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
appliance.
•
Alert children and adults to hazards of high
temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate
poisonous gases (i.e. carbon monoxide).
To obtain a French translation of this manual, please contact
your dealer or visit
www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez
7047-910J
WARNING
WARNING
WARNING
NOTE
www.quadrafire.com
January 13, 2020
Advertisement
Table of Contents
Related Manuals for Quadra-Fire 51I-ACC-BK
Summary of Contents for Quadra-Fire 51I-ACC-BK
- Page 1 Do not over fire - If appliance or chimney connector MODEL: glows, you are over firing. Over firing will void your warranty. 51I-ACC-BK • Comply with all minimum clearances to combustibles as specified. Failure to comply may cause house This appliance has been retired.
-
Page 2: Table Of Contents
M. Altering The Fireplace ..... . .16 N. Zero-Clearance Fireplace ....16 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7047-910J... -
Page 3: Important Safety Information
(UM) 84-HUD and NPFA211 in the U.S.A. and the ULC S628-93 and CAN/CSA-B365 Installation Codes in Canada. The Quadra-Fire 5100 Wood Insert (ACC) meets the U.S. Environmental Protection Agency’s crib wood emission limits for wood appliances sold after May 15, 2015. -
Page 4: Mobile Home Approved
5100 Insert ACC C. Mobile Home Approved WARNING • This appliance is approved for mobile home installations; when not installed in a sleeping room and Fire Risk. when an outside combustion air inlet is provided. Hearth & Home Technologies disclaims any •... -
Page 5: Getting Started
5100 Insert ACC Install Guide Getting Started A. Design and Installation Considerations B. Draft Draft is the pressure difference needed to vent appliances CAUTION successfully. When a appliance is drafting successfully, all combustion byproducts are exiting the home through the Check building codes prior to installation. -
Page 6: Negative Pressure
5100 Insert ACC C. Negative Pressure WARNING WARNING Fire Risk. Hearth & Home Technologies disclaims any Asphyxiation Risk. responsibility for, and the warranty will be voided • Negative pressure can cause spillage by, the following actions: of combustion fumes, soot and carbon monoxide. -
Page 7: Install Checklist
5100 Insert ACC F. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual. _________________________________________________________________________________ Customer: ______________________________________________________________________________ Date Installed: ______________________________________________________________________________ Lot / Address:... -
Page 8: Dimensions And Clearances
5100 Insert ACC Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 29-1/8 in [740mm] 25-1/2 in [648mm] 17-5/8 in [448mm] 13-1/8 in [333mm] Figure 8.1 - Top View with Steel Surround 12-3/8 in 43 in [1092mm] [314mm] 22 in... -
Page 9: Clearances To Combustibles
5100 Insert ACC B. Clearances to Combustibles United States and Canada (UL and ULC) TOP TRIM 32-1/4 27-1/4 819mm 692mm 40-11/16 1033mm Minimum Opening Dimensions Inches Millimeters Height 22-1/4 Front Width 29-3/8 Back Width 25-3/4 USA 16-3/4 HEARTH CANADA EXTENSION Depth 17-7/8 24-3/4 (629mm) -
Page 10: Calculating Alternate Floor Protection
5100 Insert ACC C. Calculating Alternate Floor Protection Material Thermal Resistance: R value The R value is a measure of a material’s resistance to heat transfer. R value is convenient when more than one material is used since you can add the R values together, whereas you can not do this for k value. -
Page 11: Chimney Systems
5100 Insert ACC Chimney Systems A. Locating Your Appliance & Chimney and ceiling attic joists and rafters. • Locate termination cap away from trees, adjacent Location of the appliance and chimney will affect structures, uneven roof lines and other obstructions. performance. -
Page 12: Chimney Termination Requirements
5100 Insert ACC B. Chimney Termination Requirements NOTICE: Locating the appliance in a basement or in a location of considerable air movement can cause Follow manufacturer’s instructions for clearance, intermittent smoke spillage from appliance. Do securing flashing and terminating the chimney (Figure not locate appliance near: 12.1 &... -
Page 13: Venting Systems
5100 Insert ACC D. Venting Systems WARNING Chimney Connector: It is also known as flue pipe or stove pipe. It must be Improper installation, adjustment, alteration, service or 6 inches (152mm) minimum diameter stainless steel maintenance can cause injury or property damage. Refer connector pipe. -
Page 14: Masonry Chimney
5100 Insert ACC I. Masonry Chimney • An equivalent liner must be a listed chimney liner system or other approved material. This insert conforms with the UL 1482 and ULC S628 • No dilution air is allowed to enter the chimney. (Canada) in all respects, and is approved to UL &... -
Page 15: Metal Heat Circulating Masonry
5100 Insert ACC J. Metal Heat Circulating Masonry • No dilution air is allowed to enter the chimney. a. Secure the fireplace damper in the open position. This insert conforms with the safety standard UL-1482 and If this cannot be accomplished, it will be necessary ULC S628 (Canada) in all respects and is approved to UL to remove the damper and ULC safety standards for installation and use within a... -
Page 16: Ovalizing Round Stainless Steel Liners
5100 Insert ACC L. Ovalizing Round Stainless Steel Liners N. Zero-Clearance Fireplace Ovalizing round stainless steel liners to accommodate the A permit may be required for installations, final approval is liner passing through the damper region of a fireplace is an contingent of the authority having local jurisdiction. -
Page 17: Appliance Set-Up
5100 Insert ACC Appliance Set-Up A. Outside Air Kit Installation A source of air (oxygen) is necessary in order for combustion to take place. Whatever combustion air is Outside Air consumed by the fire must be replaced. Air is replaced via Cover Plate air leakage around windows and under doors. -
Page 18: Securing Stove Pipe/Liner To Flue Collar
5100 Insert ACC B. Securing Stove Pipe/Liner to Flue Collar 1. There are 4 already drilled holes in the flue collar 90 degrees apart. Attach the flue collar to the stove pipe/ liner. f the seal is questionable use high temperature sealant such as stove mastic (Figure 19.1). -
Page 19: Leveling Legs
5100 Insert ACC D. Leveling Legs F. Surround & Trim Kit Installation 1. Remove the 2 screws already installed on each leg. 1. Lay surround face down on a protected surface to 2. Move legs to the desired height. prevent scratching. 3. -
Page 20: Blower Cord Installation On Left Side
5100 Insert ACC G. Blower Cord Installation on Left Side 11. Reconnect the wire harness to the snap disc that is located on the heat shield. Rotate the heat shield into The blower cord is shipped to be installed on the right side position and reinstall the flat head screws and the of the appliance. - Page 21 5100 Insert ACC Remove Control Plate Disconnect Wires to theSnap Disc Figure 21.1 Figure 21.4 Remove Strain Relief Place Harness Under Tabs Figure 21.2 Figure 21.5 Figure 21.3 Figure 21.6 January 13, 2020 7047-910J...
-
Page 22: Zero Clearance Adjustable Trim Support
5100 Insert ACC H. Zero Clearance Adjustable Trim Support EXPLODED VIEW OF SCISSORS 2” - 10” Part No. 841-0990, size 9” x 45” and Part No. ADJSPT-12, size 12” x 50” Included in Kit: (1) Trim Top, (1) Trim Front, (2) Trim SCREWS ARE CIRCLED Sides, Double-Sided Tape (already installed) Tools Needed: Phillips Head Screwdriver, Sheet Metal... -
Page 23: Mobile Home Installation
5100 Insert ACC Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part #: Spark Arestor Cap OAK-ACC 1. An outside air inlet must be provided for combustion Storm Collar and must remain clear of leaves, debris, ice and/or Roof Flashing snow. -
Page 24: Reference Materials
5100 Insert ACC Reference Materials A. Service and Maintenance Log Date of Service Performed By Description of Service 7047-910J January 13, 2020... -
Page 25: Accessories List
5100 Insert ACC B. Accessories List January 13, 2020 7047-910J... - Page 26 Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL •...
