Quadra-Fire 21M-ACC Installation And Operation Manual

Hearth & home technologies 2100 millennium wood stove advanced combustion control (acc) owner's manual installation and operation
Hide thumbs Also See for 21M-ACC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
•
Important operating
a n d m a i n t e n a n c e
instructions included.
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney con-
nector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies recommends NFI certified
professionals, or technicians supervised by an
NFI certified professional.
www.quadrafire.com

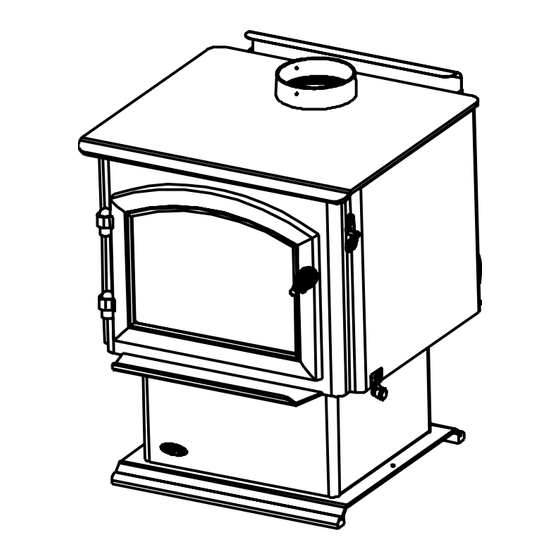

2100 MILLENNIUM WOOD STOVE
Advanced Combustion Control (ACC)
Owner's Manual

Installation and Operation

DO NOT DISCARD THIS MANUAL
• Read, understand and
follow these instructions
for safe installation and
operation.
WARNING
Model:
21M-ACC
NOTICE
• Leave this manual with
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room
as fireplace.
•
Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
7039-131F
R
O-T L
Tested and
Listed by
C
OMNI-Test Laboratories, Inc.
party responsible for
use and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
Portland
Oregon USA
US
September 1, 2008

Advertisement

Table of Contents
loading

Related Manuals for Quadra-Fire 21M-ACC

Summary of Contents for Quadra-Fire 21M-ACC

  • Page 1: Installation And Operation

    Home Technologies recommends NFI certified professionals, or technicians supervised by an NFI certified professional. www.quadrafire.com Owner’s Manual Installation and Operation Model: 21M-ACC NOTICE DO NOT DISCARD THIS MANUAL • Read, understand and follow these instructions for safe installation and operation.
  • Page 2 8.75 (222) 5.75 (146) 20 (508) 10.5 (267) 7.5 (191) 16 (406) 43 (1092) INSTALLATION: HORIZONTAL WITH MINIMUM 2 FT VERTICAL OFF STOVE TOP INSTALLATION: HORIZONTALE AVEC 609mm VERTICAL MINIMUM DU HAUT DU POÊLE SINGLE WALL PIPE 14 (356) 10 (254) 20.5 (521) 12 (305) 8.5 (216)

  • Page 3: Table Of Contents

    D. Flue Draft Considerations ...7 E. Venting Systems ...7 F. Tools and Supplies Needed...7 G. Inspect Appliance & Components...7 H. Typical Stove System ...8 Section 3: Dimensions & Clearances A. Appliance Dimensions ...9 B. Clearances to Combustibles ...10 Section 4: Installation Consideration Hearth Requirements ...11...

  • Page 4: Section 1: Listing And Code Approvals

    Outside Air Kit, part OAK-ACC must be installed in a mobile home installation C. Glass Specifications This stove is equipped with 5mm ceramic glass. Replace glass only with 5mm ceramic glass. Please contact your dealer for replacement glass. NOTE: This installation must conform with local codes. In the absence of local codes you must comply with the UL1482, (UM) 84-HUD and NPFA211 in the U.S.A.

  • Page 5: Section 2: Getting Started

    (42mm) is required on the right side of stove in order to remove the tubes with the stove in place. If space is not available, the stove will have to be discon- nected from the chimney to proceed with the tube replace- ment.

  • Page 6: Negative Pressure

    • Preventing negative pressure • Location of appliance and chimney Negative pressure results from the imbalance of air avail- able for the stove to operate properly. Causes for this imbal- ance include: • Exhaust fans (kitchen, bath) etc.) • Range hoods •...

  • Page 7: Flue Draft Considerations

    E. Venting Systems The venting system consists of a chimney connector (also known as stove pipe) and a chimney. These get extremely hot during use. Temperatures inside the chimney may exceed 2000°F (1100°C) in the event of a creosote fire. To...

  • Page 8: Typical Stove System

    2100 Millennium Wood Stove (ACC) H. Typical Stove Systems Stove system with masonry chimney consists of: • Stove • Chimney Connector (stove pipe) • Thimble • Masonry Chimney • Hearth Pad Floor Protection Stove system with prefabricated metal chimney consists of: •...

  • Page 9: Appliance Dimensions

    Figure 9.1 Front View 26-7/16 in. (671mm) 24-5/16 in. (618mm) 6-11/16 in. (170mm) 16 in. (406mm) 20-3/4 in. (527mm) 7039-131F 2100 Millennium Wood Stove (ACC) 23-3/8 in. (594mm) 11-11/16 in. (297mm) 9-1/4 in. (235mm) 12-3/4 in. 13-1/2 in. (342mm) (324mm) 17 in.

  • Page 10: Clearances To Combustibles

    NOTE: Service Space In order to replace the tube channel assembly a clearance of 17 inches (42mm) is required on the right side of stove in order to remove the tubes with the stove in place. If space is not available, the stove will have to be discon- nected from the chimney to proceed with the tube replace- ment.

  • Page 11: Hearth Requirements

    In Canada, similar floor protection must be provided 18 inches (457mm) in front and 8 inches (20mm) from the sides and rear of the stove. *See exception. *ExCEPTION: Non-combustible floor protections must extend beneath the flue pipe when installed with horizontal venting and extend 2 inches (51mm) beyond each side.

  • Page 12: Outside Air

    1. Remove all materials from packing box. 2. Using a #2 Phillips screw driver attach the flex adapter to the stove using 4 screws. Figure 12.1. . Remove circular “knock-out” in the base of the pedestal. 4. Floor & Rear Installation: Cut a 4 inch (102mm) hole in outside wall or floor to accommodate outside air piping.

  • Page 13: Blower Installation

    Secure wires with wire tie MANUAL AUTO HIGH 7039-131F 2100 Millennium Wood Stove (ACC) CAUTION Shock Risk. • Do NOT remove grounding prong from plug. • Plug directly into properly grounded  prong receptacle. • Route cord away from appliance.

  • Page 14: Section 5: Chimney Requirements

    Chimney Connector: It is also known as flue pipe or stove pipe. The chimney connector joins the stove to the chimney. It must be a 6 inch (152mm) minimum diameter 24 gauge mild steel black or 26 gauge blued steel, or an approved air-insulated double wall venting pipe.
  • Page 15 9. Seal the end of the chimney connector to the clay liner with refractory mortar. 10. Install trim collar around the sold pack chimney section. September 1, 2008 2100 Millennium Wood Stove (ACC) ceiling Minimum18.0” NFPA 211 17.0” OD 14.0”...

  • Page 16: Installing Chimney Components

    This must be at least 24 gauge mild steel or 26 gauge blue steel. The sections must be attached to the appliance and to each other with the crimped (male) end pointing toward the stove. All joints, including the connection at the flue collar, 1 inch (25mm) Air Space to Chimney should be secured with  sheet metal screws.

  • Page 17: Chimney Termination Requirements

    10 ft. (305cm) To Nearest Roofline Pitched Roof 3 ft. (91cm) Minimum 3 ft. (91cm) Minimum Flat Roof 7039-131F 2100 Millennium Wood Stove (ACC) 2 ft. (61cm) 3 ft. (91cm) Minimum Less than 10 ft. (305cm) 2 ft. (61cm)Minimum Page 17...

  • Page 18: Section 6: Mobile Home

    UL10 HT chimney, and terminal cap with spark arrestor. Never use a single wall connector (stove pipe) in a mobile home installation. Use only double-wall connector pipe, Dura-Vent DVL, Selkirk metalbestos DS or Security DL double-wall connector or any listed double-wall connector pipe.

  • Page 19: Section 7: Appliance Set-Up

    Handle Door Handle Square Key 7039-131F 2100 Millennium Wood Stove (ACC) it will click on to high speed. Continue to turn the speed control clockwise to decrease the speed. At full clockwise, the blower should blow gently, but should not stop.

  • Page 20: Section 8: Operating Instructions

    1. Kindling or First Stage It helps to know a little about the actual process of burning in order to understand what goes on inside a stove. The first stage of burning is called the kindling stage. In this stage, the wood is heated to a temperature high enough to evaporate the moisture which is present in all wood.

  • Page 21: Automatic Combustion Control (Acc)

    This activates the ACC system and opens the front air channel and allows air to enter the front of the stove for approximately 25 minutes. The front air channel gradually shuts down until it is completely closed at the end of the 25 minutes.

  • Page 22: E. Air Controls

    Open both controls fully by raising the Burn Rate Air Control all the way up until it stops and slide the Start-up Air Control back until it stops. After loading the stove with wood and starting the fire, set both controls to the desired setting by following the burn rate instructions below.

  • Page 23: Building A Fire

    G. Building A Fire Before lighting your first fire in the stove: 1. Confirm the baffle is correctly positioned. It should be even with the front tube and resting on all tubes. Figure 23.1. Remove all labels from glass. There are many ways to build a fire. The basic principle...

  • Page 24: Correct Baffle & Blanket Placement

    2100 Millennium Wood Stove (ACC) H. Correct Baffle & Blanket Placement WARNING Fire Risk Firebox damage due to improper baffle place- ment is not covered by warranty. Operate the wood burning appliance with the baffle in the correct position only.

  • Page 25: Blower Operating Instructions

    The blower fan is turned on and off by a snap disc. When your stove has reached a certain temperature the blower will turn on and when your stove has cooled down to a certain temperature it will turn off.

  • Page 26: Frequently Asked Questions

    2100 Millennium Wood Stove (ACC) K. Frequently Asked Questions ISSUES Odor from appliance When first operated, this appliance may release an odor for the first several hours. This is caused by the curing of the paint and the burning off of any oils remaining from manufacturing.

  • Page 27: Maintaining & Servicing Appliance

    • Remove creosote to reduce risk of chimney fire. • Ignited creosote is extremely HOT. September 1, 2008 2100 Millennium Wood Stove (ACC) WARNING Fire Risk. • Do not use chimney cleaners or flame colo- rants in your appliance.

  • Page 28: Glass Replacement

    Quadra-Fire stoves are equipped with ceramic super heat- resistant glass, which can only be broken by impact or misuse. Do not slam stove door or impact the glass. When closing door, make sure that logs do not protrude against the glass.

  • Page 29: Firebrick Replacement

    Use Part 82-0550 when ordering individual brick. Provide brick dimension or copy this page, mark the desired brick and take it to your authorized dealer. September 1, 2008 2100 Millennium Wood Stove (ACC) 8-1/2 inches (216mm) 6-1/4 inches (159mm) 7 inches (178mm) 8-1/2 inches (216mm) Figure 29.1...

  • Page 30: Baffle Removal

    1. Locate the snap disc bracket assembly at the bottom left rear corner of the stove. Figure 30. 3. 2. A magnet holds the bracket to the stove. Pull the bracket down away from the stove to expose the snap disc.

  • Page 31: Tube Channel Replacement

    In order to replace the tube channel assembly a clear- ance of 17 inches (42mm) is required on the right side of stove in order to remove the tubes with the stove in place. If space is not available, the stove will have to be dis- connected from the chimney to proceed with the tube replacement.

  • Page 32: Section 10: Troubleshooting

    2100 Millennium Wood Stove (ACC) Troubleshooting Start Fire Problems Can’t get fire started Not enough kindling/paper or no Excessive smoke or spillage kindling/paper Burns too slowly Not enough air for fire to ignite Smolders, sizzles Wood condition is too wet, too large...

  • Page 33: Section 11: Reference Material

    Figure 33.1 - Door, Glass And Door Handle Assembly Figure 33.2 - Burn Rate Air & Start-Up Air Controls September 1, 2008 Item Item 7039-131F 2100 Millennium Wood Stove (ACC) Description Part No. Door, Cast not sold sep. Spring Handle, 1/2 inch...
  • Page 34 2100 Millennium Wood Stove (ACC) SIZES (#0) Baffle Board: 8-1/8” w x 1” h, each (#29) Ceramic Blanket: 19” w x 1-/4” h, 1/2” thick Figure 34.1 Item Oak Strip for Pedestal Pedestal Base Pedestal Riser Knob, Start-Up Air Control...

  • Page 35: Service Parts & Accessories

    Knob, Start-Up Air Control Label for Burn Rate Air Control Label for Start-Up Air Control Logo, Quadra-Fire, Gold Logo, Quadra-Fire, Nickel Magnet for Air Control September 1, 2008 2100 Millennium Wood Stove (ACC) ACCESSORIES SERVICE PARTS 7039-131F PART NO. BK-ACC SRV709-008...
  • Page 36 2100 Millennium Wood Stove (ACC) ITEM # Nut, Locking (Door Handle) see page 12 Outside Air Cover Plate & Sealing Rope, 1 inch x 4 ft Paint, Touch-Up, Matte Black Panel Assembly, Side, Left Panel Assembly, Side, Right Pedestal Base...

  • Page 37: Service & Maintenance Log

    2100 Millennium Wood Stove (ACC) C. Service And Maintenance Log Date of Service Performed By Description of Service Page 7 September 1, 2008 7039-131F...
  • Page 38 2100 Millennium Wood Stove (ACC) C. Service And Maintenance Log (Cont’d) Date of Service Performed By Description of Service Page 8 7039-131F September 1, 2008...

  • Page 39: Homeowner's Notes

    2100 Millennium Wood Stove (ACC) D. Homeowner’s Notes Page 9 September 1, 2008 7039-131F...

  • Page 40: D. Homeowner's Notes

    2100 Millennium Wood Stove (ACC) D. Homeowner’s Notes (Cont’d) Page 40 7039-131F September 1, 2008...

  • Page 41: Warranty Policy

    4021-645A 09-01-08 September 1, 2008 Wood Pellet Electric Wood 7039-131F 2100 Millennium Wood Stove (ACC) Components Covered Venting All Parts and Material Except as covered by Conditions, Exclusion, and Limitations listed Igniters, Electronic Compo-...
  • Page 42 2100 Millennium Wood Stove (ACC) Hearth & Home Technologies LIMITED WARRANTY (Cont’d)  HHT’s obligation under this warranty does not extend to damages resulting from: (1) installation, operation or maintenance of the appliance not in accordance with the installation instructions; operating instructions and the listing agent identification label furnished with the appliance;...
  • Page 43 2100 Millennium Wood Stove (ACC) This page is left blank intentionally Page 4 September 1, 2008 7039-131F...

  • Page 44: Contact Information

    Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer, We recommend that you record the following pertinent information for your 2100 MILLENNIUM WOOD STOVE (ACC) Date purchased/installed: Serial Number: Dealership purchased from:...
