INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

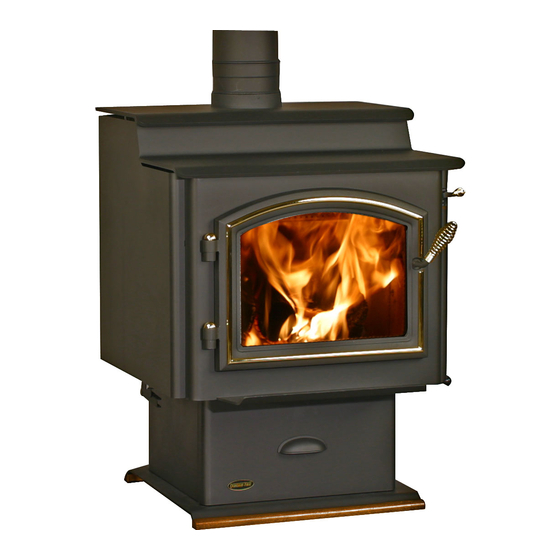

4300 WOOD APPLIANCE SERIES
AUTOMATIC COMBUSTION CONTROL
MODELS:
43M-ACC-MBK
43ST-ACC-B
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
(ACC)
If the information in these instructions is not
followed exactly, a fire could result causing
property damage, personal injury, or death.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
•
Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void your
warranty.
•
Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house
fire.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
•
Do not touch glass until it is cooled
•
Use leather gloves when reloading fuel
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
appliance.
•
Alert children and adults to hazards of high
temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate
poisonous gases (i.e. carbon monoxide).
To obtain a French translation of this manual, please contact
your dealer or visit
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez
7037-172G
WARNING
WARNING
WARNING
NOTE
www.quadrafire.com
www.quadrafire.com
August 13, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quadra-Fire 4300 Series

Summary of Contents for Quadra-Fire 4300 Series

  • Page 1 Installation Manual Installation & Appliance Set-Up INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. NOTICE: DO NOT DISCARD THIS MANUAL WARNING If the information in these instructions is not followed exactly, a fire could result causing 4300 WOOD APPLIANCE SERIES property damage, personal injury, or death.

  • Page 2: Table Of Contents

    H. Proper Draft......19 Quadra-Fire is a registered trademark of Hearth & Home Technologies.

  • Page 3: Important Safety Information

    NOTE: This installation must conform with local codes. In the absence of local codes you must comply with (UM) 84-HUD and NFPA211 in the U.S.A. and CAN/CSA-B365 Installation Codes in Canada. The Quadra-Fire 4300 Series Wood Appliance meets the U.S. Environmental Protection Agency’s crib wood emission limits for wood appliances sold after May 15, 2015.

  • Page 4: Mobile Home Approved

    4300 Wood Appliance Series ACC C. Mobile Home Approved WARNING • This appliance is approved for mobile home installations; when not installed in a sleeping room and when an outside Fire Risk combustion air inlet is provided. Hearth & Home Technologies disclaims any •...

  • Page 5: Getting Started

    4300 Wood Appliance Series ACC Install Guide Getting Started A. Design and Installation Considerations B. Fire Safety To provide reasonable fire safety, the following should be Consideration must be given to: given serious consideration: • Safety 1. Install at least one smoke detector on each floor of •...

  • Page 6: Tools And Supplies Needed

    4300 Wood Appliance Series ACC To minimize the effects of negative air pressure: F. Removal of Appliance from Shipping • Install optional outside air kit with the intake facing Materials prevailing winds during the heating season Millennium: • Ensure adequate outdoor air for all combustion •...

  • Page 7: Install Checklist

    4300 Wood Appliance Series ACC G. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjuction with, not istead of, the instructions contained in this installation manual. _________________________________________________________________________________ Customer: ______________________________________________________________________________ Date Installe:...

  • Page 8: Dimensions And Clearances

    4300 Wood Appliance Series ACC Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 4300 Millennium Pedestal Model 26-1/4 in [667mm] 3-5/8 in 13-1/8 in [92mm] [333mm] 6-3/4 in 11 in [170mm] [278mm] 30-1/2 in [773mm] 15-1/8 in [ 383mm]...
  • Page 9 4300 Wood Appliance Series ACC 4300 Step Top Pedestal Model 26 in (660mm) 26 in (660mm) 3-1/2 in 13 in [87mm] [330mm] 6-3/4 in [170mm] 11 in 11 in (278mm) (278mm) 34-1/4 in 34-1/4 in (868mm) (868mm) 15-1/8 in (383mm) 15-1/8 in (383mm) 21 in (533mm) 21 in (533mm)
  • Page 10 4300 Wood Appliance Series ACC 4300 Step Top Q Anne Leg Model 26 in [660mm] 3-1/2 in 13 in [87mm] [330mm] 6-3/4 in [170mm] 11 in [278mm] 32-7/8 in [834mm] 15-1/8 in [383mm] 25 in [636mm] Figure 10.1 - Front View Figure 10.3 - Top View 28-5/8 in [728mm] 26-3/8 in [668mm]...
  • Page 11 4300 Wood Appliance Series ACC 4300 Step Top Traditional Leg Model 26 in [660mm] 3-1/2 in 13 in [87mm] [330mm] 6-3/4 in [170mm] 11 in [278mm] 32-7/8 in [834mm] 15-1/8 in [383mm] 23-3/8 in [595mm] Figure 11.3 Top View Figure 11.1 - Front View 28-5/8 in [728mm] 26-3/8 in [668mm] 34-1/8 in...

  • Page 12: Hearth Protection Requirements

    4300 Wood Appliance Series ACC B. Hearth Protection Requirements In Canada, similar floor protection must be provided 18 inches (457mm) in front and 8 inches (203mm) from the EMBER PROTECTION: It is necessary to install a Type I sides and rear of the appliance unless the hearth pad is floor protector.
  • Page 13 4300 Wood Appliance Series ACC STEP-TOP UNI-BODY MODEL USA, minimum flat wall hearth pad dimensions 31-5/8 in minimum Corner hearth pad dimensions with single wall pipe 41 in 1440mm 54-3/4 in minimum Fuel loading door 8 in 33-1/8 in 785mm 8 in 16 in 16 in...

  • Page 14: Clearances To Combustibles

    4300 Wood Appliance Series ACC C. Clearances to Combustibles MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters) Note: A, C, and F Dimensions are to the center of the flue collar 4300 WOOD APPLIANCE INSTALLATION: FULL VERTICAL SINGLE WALL PIPE MILLENNIUM 18-1/2 (470) 11-3/4 (298)

  • Page 15: Chimney Systems

    4300 Wood Appliance Series ACC Chimney Systems A. Locating Your Appliance & Chimney • Consider the appliance location in order to avoid floor and ceiling attic joists and rafters. Location of the appliance and chimney will affect • Locate termination cap away from trees, adjacent performance.

  • Page 16: Chimney Termination Requirements

    4300 Wood Appliance Series ACC B. Chimney Termination Requirements NOTICE: LOCATING THE APPLIANCE IN A BASEMENT OR IN A LOCATION OF CONSIDERABLE AIR Follow manufacturer’s instructions for clearance, securing MOVEMENT CAN CAUSE INTERMITTENT flashing and terminating the chimney (Figure 16.1 & 16.2). SMOKE SPILLAGE FROM APPLIANCE.

  • Page 17: Chimney Height / Rise And Run

    4300 Wood Appliance Series ACC D. Chimney Height / Rise and Run Chimney: The chimney can be new or existing, masonry or This product was designed for and tested on a 6 inch prefabricated and must meet the following minimum (152mm) chimney, 14 to 16 feet (420-480cm) high, requirements and as specified in Section 4F.
  • Page 18 4300 Wood Appliance Series ACC Thimble Listed Termination Cap Site constructed for masonry chimney installation: Storm Collar Components A minimum length of 12 inches [305mm] (longer for thicker Flashing walls) of solid insulated factory-built chimney length constructed to UL 103 Type HT 6 inch (152mm) inside diameter.

  • Page 19: Installing Chimney Components

    Wall Spacer Masonry Chimney H. Proper Draft Constructed to NFPA 211 To be sure that your Quadra-Fire insert burns properly, the Figure 19.2 chimney draft (static pressure) should be approximately -0.10 inches water column (W.C.) during a high burn and -0.04 inches W.C.

  • Page 20: Appliance Set-Up

    4300 Wood Appliance Series ACC Appliance Set-Up A. Pedestal Assembly & ARS Installation WARNING NOTE: The Ash Removal System, must be installed first Do NOT operate before fully assembling before installing the pedestal. components. Burning your appliance without a pedestal or leg kit attached: Included in Kit: ARS door assembly, ARS latch assembly, •...
  • Page 21 4300 Wood Appliance Series ACC Ash Removal Spacer Figure 21.4 Figure 21.1 Door latch with the ash door rod locked in place Ped Kit and Ash Removal System (Cont’d) Installing Ped Kit Knob 1. Follow Begin installing the ARS System instructions provided on page 21.

  • Page 22: Leg Kit & Ars Installation

    4300 Wood Appliance Series ACC B. Access Cover Handle Ash Removel Insert Access Cover Handle handle into slot of ARS Cover to Drawer remove ARS Cover for cleaning ash out of firebox (Figure 21.4). Adapters Figure 22.1 Figure 22.4 ARS Access C.
  • Page 23 4300 Wood Appliance Series ACC 6. Remove knock out from bottom of firebox by using a hammer (Figure 20.2 on page 20). 7. Install ash door assembly by sliding the rod at an angle into the slot on the left side (Figure 20.3 on page 20). Align top holes and repeat;...

  • Page 24: Traditional Leg Installation

    4300 Wood Appliance Series ACC D. Traditional Leg Installation CAUTION! Included with Appliance: Leg brackets; inside firebox. CHECK BAFFLE BOARDS & CERAMIC BLANKET! Tools Required: 9/16 socket wrench and Phillips screw • Verify that the baffle boards and ceramic blanket are driver.

  • Page 25: Door Handle Assembly

    4300 Wood Appliance Series ACC E. Door Handle Assembly Installation Instructions: 1. Remove all materials from packing box. Installation of Door Handle: 2. Floor & Rear Installation: Cut a 4 inch (102mm) hole 1. Slide door handle shaft through hole on door. in outside wall or floor to accommodate outside air 2.

  • Page 26: Blower (Optional)

    4300 Wood Appliance Series ACC H. Adjusting The Blower Speed Control G. Blower (Optional) Tools Required: #2 Phillips head screwdriver The blower speed control for this appliance is adjusted at the factory, and normally does not require further adjustment. 1. Locate bolts supplied with the blower. 1.

  • Page 27: Mobile Home Installation

    4300 Wood Appliance Series ACC Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part 10. Burn seasoned cord wood only. Other types of fuels may generate poisonous gases (e.g., carbon OAK-ACC; which is available from you dealer, for monoxide).

  • Page 28: Reference Materials

    4300 Wood Appliance Series ACC Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 7037-172G August 13, 2018...
  • Page 29 4300 Wood Appliance Series ACC Date of Service Performed By Description of Service August 13, 2018 7037-172G...

  • Page 30: 4300 Millennium Accessories

    SRV7033-298 812-4900 Blower Assembly BK-ACC Gasket, Manifold Pkg of 4 7038-168/4 Blower Control Box W/Switch Gold SRV7000-194 200-3180 Logo, Quadra-Fire Component Pack Nickel 7033-051 200-3240 Snap Disc Bracket Assembly 7033-036 Paint Touch-Up Black 812-0910 Outside Air Kit, Floor & Rear...

  • Page 31: 4300 Step Top Accessories

    Door Handle Assembly 832-0540 Gasket, Manifold Pkg of 4 7038-168/4 ITEM DESCRIPTION COMMENTS PART NUMBER Logo, Quadra-Fire, Black Pkg of 10 7000-694/10 Baf e Protection Channel SRV7033-298 Outside Air Collar Assembly 7033-039 Blower, Convection - Replacement Blower 812-4900 Outside Air Kit, Floor & Rear...
  • Page 32 Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
