Capturing snapshots

The snapshot feature, which is disabled by default, allows
snapshots captured by your video system to be displayed
on the Call Control page. Captures from your video system's
camera as well as from its presentation channel will be
displayed.
This feature might come in handy when administering the
video system from a remote location, e.g. to check the
camera view.
To use web snapshots you have to sign in with ADMIN
credentials.
Enabling the snapshot feature
The snapshot feature is disabled by default. The feature must
be enabled using the remote control and on screen menu, or
the Touch controller. The Touch controller must be directly
connected to the codec's second Ethernet port.
• Touch controller: Tap Settings ( ) > Administrator
Settings > Web Snapshots and choose On.
• Remote control and on screen menu: Go to the
Advanced configuration menu, navigate to
AllowWebSnapshots and choose On.
Far end snapshots while in a call
While in a call, snapshots of the remote participant's main
camera and presentation channel (far end) will be captured

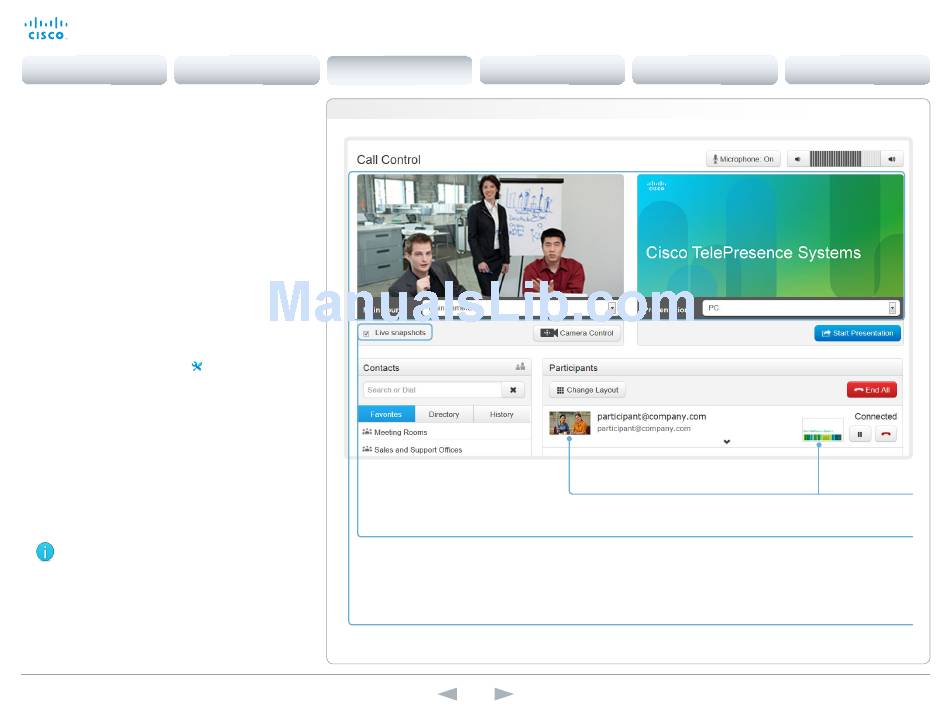

and displayed as shown in the illustration. The snapshots are
updated approximately every 20 seconds.
Far end snapshots are captured even if web
snapshots are disallowed on the far end video
system. Web snapshots are prohibited only for
encrypted calls.
