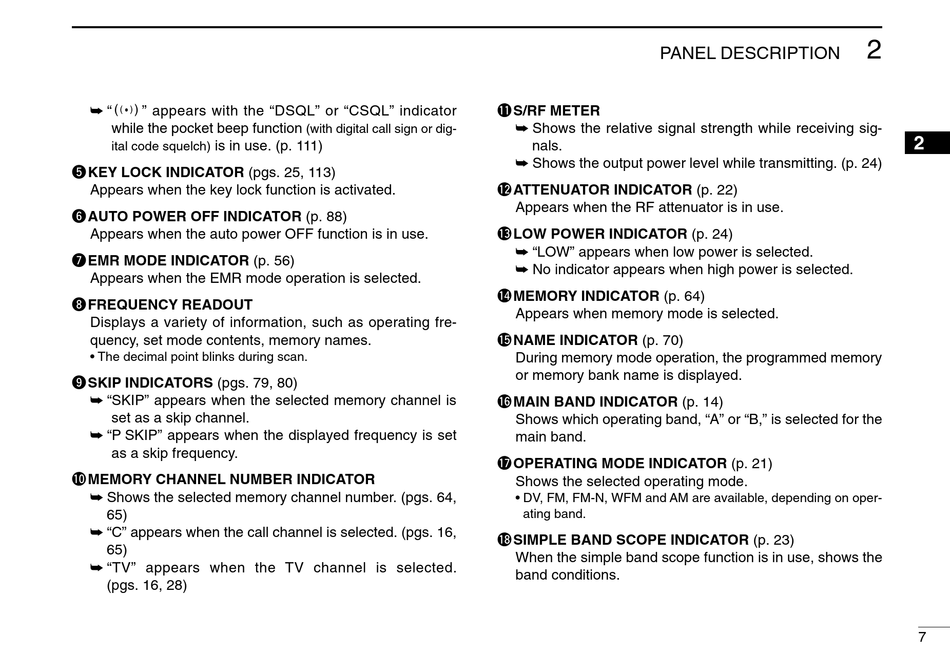

Icom IC-E91 Instruction Manual page 13

➥ "S" appears with the "DSQL" or "CSQL" indicator
while the pocket beep function
is in use. (p. 111)
ital code squelch)
t KEY LOCK INDICATOR (pgs. 25, 113)
Appears when the key lock function is activated.
y AUTO POWER OFF INDICATOR (p. 88)
Appears when the auto power OFF function is in use.
u EMR MODE INDICATOR (p. 56)
Appears when the EMR mode operation is selected.
i FREQUENCY READOUT
Displays a variety of information, such as operating fre-
quency, set mode contents, memory names.
• The decimal point blinks during scan.
o SKIP INDICATORS (pgs. 79, 80)
➥ "SKIP" appears when the selected memory channel is
set as a skip channel.
➥ "P SKIP" appears when the displayed frequency is set
as a skip frequency.
!0 MEMORY CHANNEL NUMBER INDICATOR
➥ Shows the selected memory channel number. (pgs. 64,
65)
➥ "C" appears when the call channel is selected. (pgs. 16,
65)
➥ "TV" appears when the TV channel is selected.
(pgs. 16, 28)
(with digital call sign or dig-
PANEL DESCRIPTION
!1 S/RF METER
➥ Shows the relative signal strength while receiving sig-
nals.
➥ Shows the output power level while transmitting. (p. 24)
!2 ATTENUATOR INDICATOR (p. 22)
Appears when the RF attenuator is in use.
!3 LOW POWER INDICATOR (p. 24)
➥ "LOW" appears when low power is selected.
➥ No indicator appears when high power is selected.
!4 MEMORY INDICATOR (p. 64)
Appears when memory mode is selected.
!5 NAME INDICATOR (p. 70)
During memory mode operation, the programmed memory
or memory bank name is displayed.
!6 MAIN BAND INDICATOR (p. 14)
Shows which operating band, "A" or "B," is selected for the
main band.
!7 OPERATING MODE INDICATOR (p. 21)
Shows the selected operating mode.
• DV, FM, FM-N, WFM and AM are available, depending on oper-
ating band.
!8 SIMPLE BAND SCOPE INDICATOR (p. 23)
When the simple band scope function is in use, shows the
band conditions.
