5
BASIC OPERATION

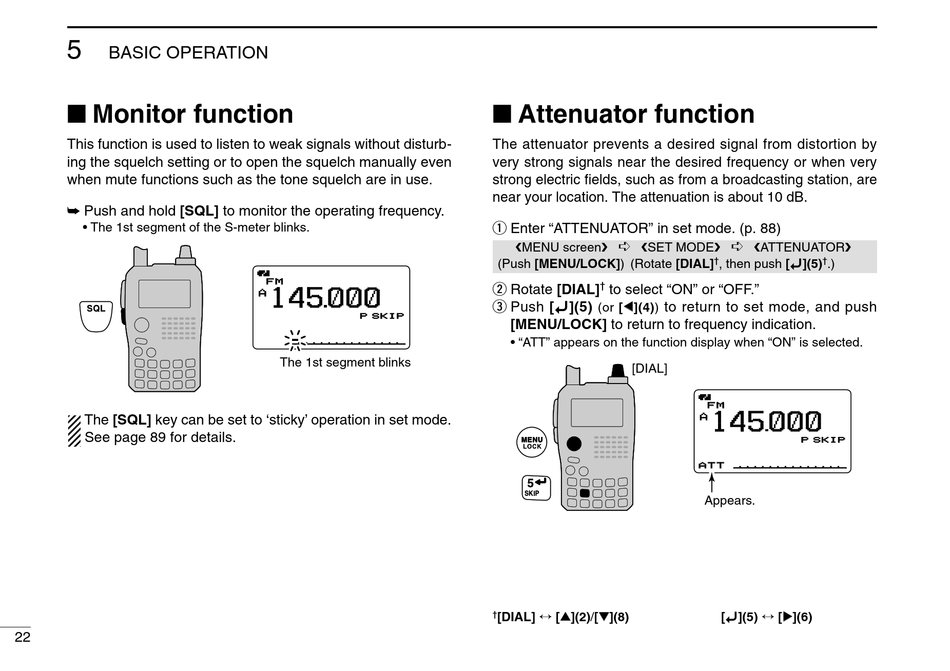

I Monitor function

This function is used to listen to weak signals without disturb-
ing the squelch setting or to open the squelch manually even
when mute functions such as the tone squelch are in use.
➥ Push and hold [SQL] to monitor the operating frequency.
• The 1st segment of the S-meter blinks.
The [SQL] key can be set to 'sticky' operation in set mode.
See page 89 for details.
22
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
145 000
25
A
MemoName MemoName
P SKIP
µ 000 000
LOW LOW
ATT ATT
The 1st segment blinks

I Attenuator function

The attenuator prevents a desired signal from distortion by
very strong signals near the desired frequency or when very
strong electric fields, such as from a broadcasting station, are
near your location. The attenuation is about 10 dB.
q Enter "ATTENUATOR" in set mode. (p. 88)
➪
MENU screen SET MODE
(Push [MENU/LOCK]) (Rotate [DIAL]
w Rotate [DIAL]
†
to select "ON" or "OFF."
e Push [ï](5)
to return to set mode, and push
(or [Ω Ω ](4))
[MENU/LOCK] to return to frequency indication.
• "ATT" appears on the function display when "ON" is selected.
[DIAL]
[DIAL] ↔ [∫ ∫ ](2)/[√ √ ](8)
†
➪
ATTENUATOR
† †
, then push [ï](5) .)
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
145 000
25
A
MemoName
P SKIP
µ 000 000
LOW LOW
ATT ATT
Appears.
[ï](5) ↔ [≈ ≈ ](6)
