7

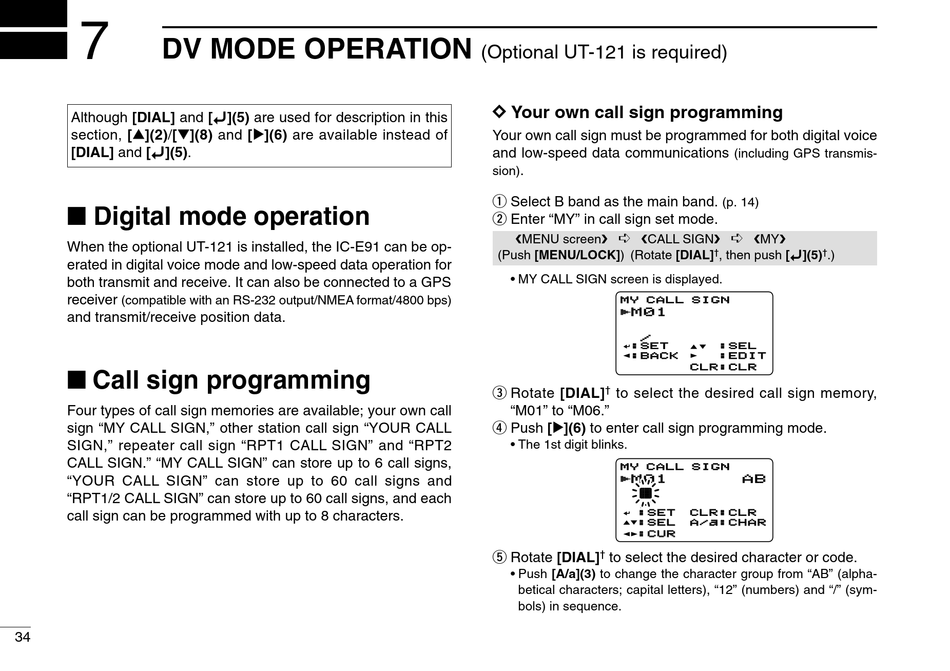

DV MODE OPERATION
Although [DIAL] and [ï](5) are used for description in this
section, [∫ ∫ ](2)/[√ √ ](8) and [≈ ≈ ](6) are available instead of
[DIAL] and [ï](5).

I Digital mode operation

When the optional UT-121 is installed, the IC-E91 can be op-
erated in digital voice mode and low-speed data operation for
both transmit and receive. It can also be connected to a GPS
receiver
(compatible with an RS-232 output/NMEA format/4800 bps)
and transmit/receive position data.

I Call sign programming

Four types of call sign memories are available; your own call
sign "MY CALL SIGN," other station call sign "YOUR CALL
SIGN," repeater call sign "RPT1 CALL SIGN" and "RPT2
CALL SIGN." "MY CALL SIGN" can store up to 6 call signs,
"YOUR CALL SIGN" can store up to 60 call signs and
"RPT1/2 CALL SIGN" can store up to 60 call signs, and each
call sign can be programmed with up to 8 characters.
34
(Optional UT-121 is required)
D D Your own call sign programming
Your own call sign must be programmed for both digital voice
and low-speed data communications
.
sion)
q Select B band as the main band.
w Enter "MY" in call sign set mode.
➪
MENU screen CALL SIGN
(Push [MENU/LOCK]) (Rotate [DIAL]
• MY CALL SIGN screen is displayed.
MY CALL SIGN
M01 M01
r
/
:SET
:BACK
e Rotate [DIAL]
†
to select the desired call sign memory,
"M01" to "M06."
r Push [≈ ≈ ](6) to enter call sign programming mode.
• The 1st digit blinks.
MY CALL SIGN
M01 M01
r
†
/
:SET :SET
:SEL :SEL
:CUR :CUR
t Rotate [DIAL] †
to select the desired character or code.
• Push [A/a](3) to change the character group from "AB" (alpha-
betical characters; capital letters), "12" (numbers) and "/" (sym-
bols) in sequence.
(including GPS transmis-
(p. 14)
➪
MY
† †
, then push [ï](5) .)
:SEL
:EDIT
CLR:CLR
AB
CLR:CLR CLR:CLR
A/a:CHAR A/a:CHAR
