F I X T U R E M E N U
ON-BOARD SYSTEM MENU
The fixture comes with an easy to navigate system menu. The next section will detail
the functions of each command in the system menu.
LCD MENU CONTROL PANEL

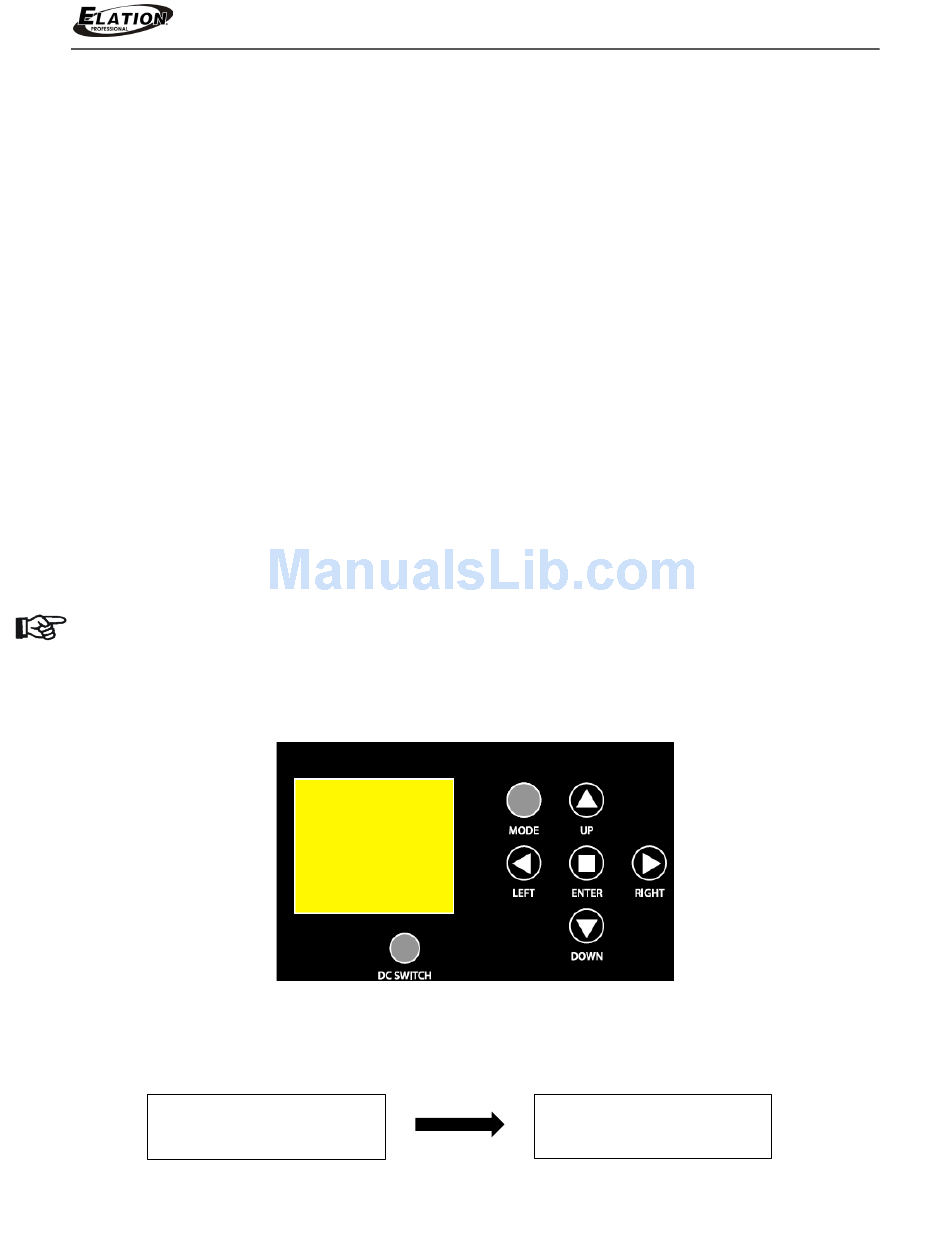

The control panel (see image below) located on back of the fixture allows you to
access the main menu and make all necessary adjustments to the fixture. During
normal operation, pressing MODE button once will access the fixture's main menu.
Once in the main menu you can navigate through the different functions and
access the sub-menus with the UP, DOWN, RIGHT, and LEFT buttons. Once you reach
a field that requires adjusting, press the ENTER button to activate that field and use
the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more
will confirm your setting. You may exit the main menu at any time without making
any adjustments by pressing the MODE/ESC button.
NOTE: To access the LCD Menu Control Display via the internal battery, press and
hold the DC SWITCH button for 3 seconds. The LCD Menu Control Display will shut
OFF automatically about 1 minute from the last button press.
INFORMATION DISPLAYED DURING INITIAL POWER ON
When the fixture is initially powered ON, the display shows the following information:
Software Update Motor Reset
Please Wait... Please Wait...
