Function – Fixture ID - RDM PID
Select various submenus via RDM.
RDM stands for "Remote Device Management", which provides the ability to control
the device remotely while connected to a DMX-bus. ANSI E1.20-2006 by ESTA
specifies the RDM standard as an extension of the DMX512 protocol. Manual settings
like adjusting the DMX starting address are no longer needed. This is especially useful
when the device is installed in a remote area.
RDM ready and conventional DMX devices can be operated in one DMX line. The
RDM protocol sends its own packages in the DMX512 data feed and does not
influence conventional devices. If DMX splitters are used and RDM control is to be
used, these splitters must support RDM. The number and type of RDM parameters
depend on the RDM controller being used.

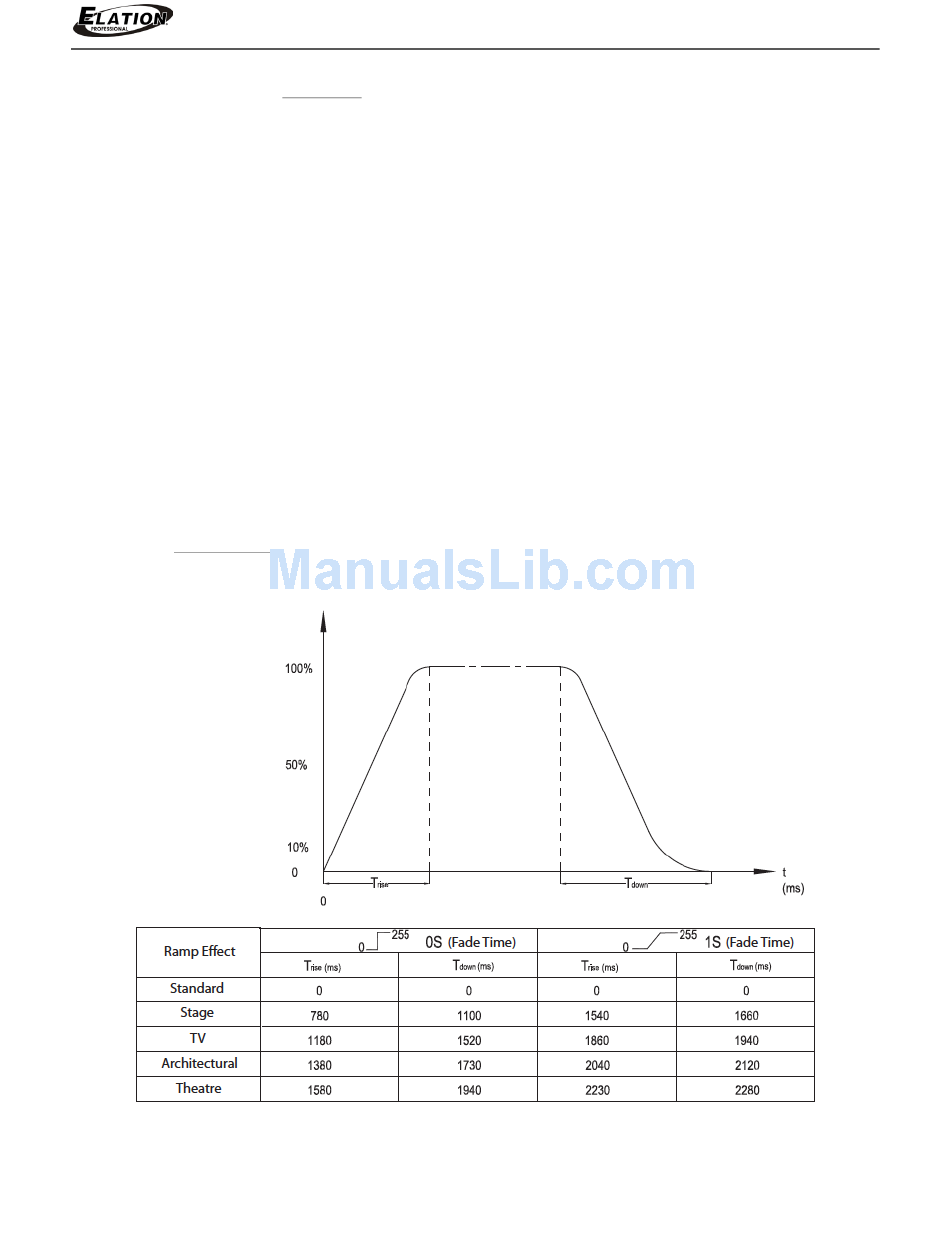

Function - Dim Curve
Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre).
