POWER LINKING
Max number of units that can be power linked is 3 units @110V and 6 units @240V.

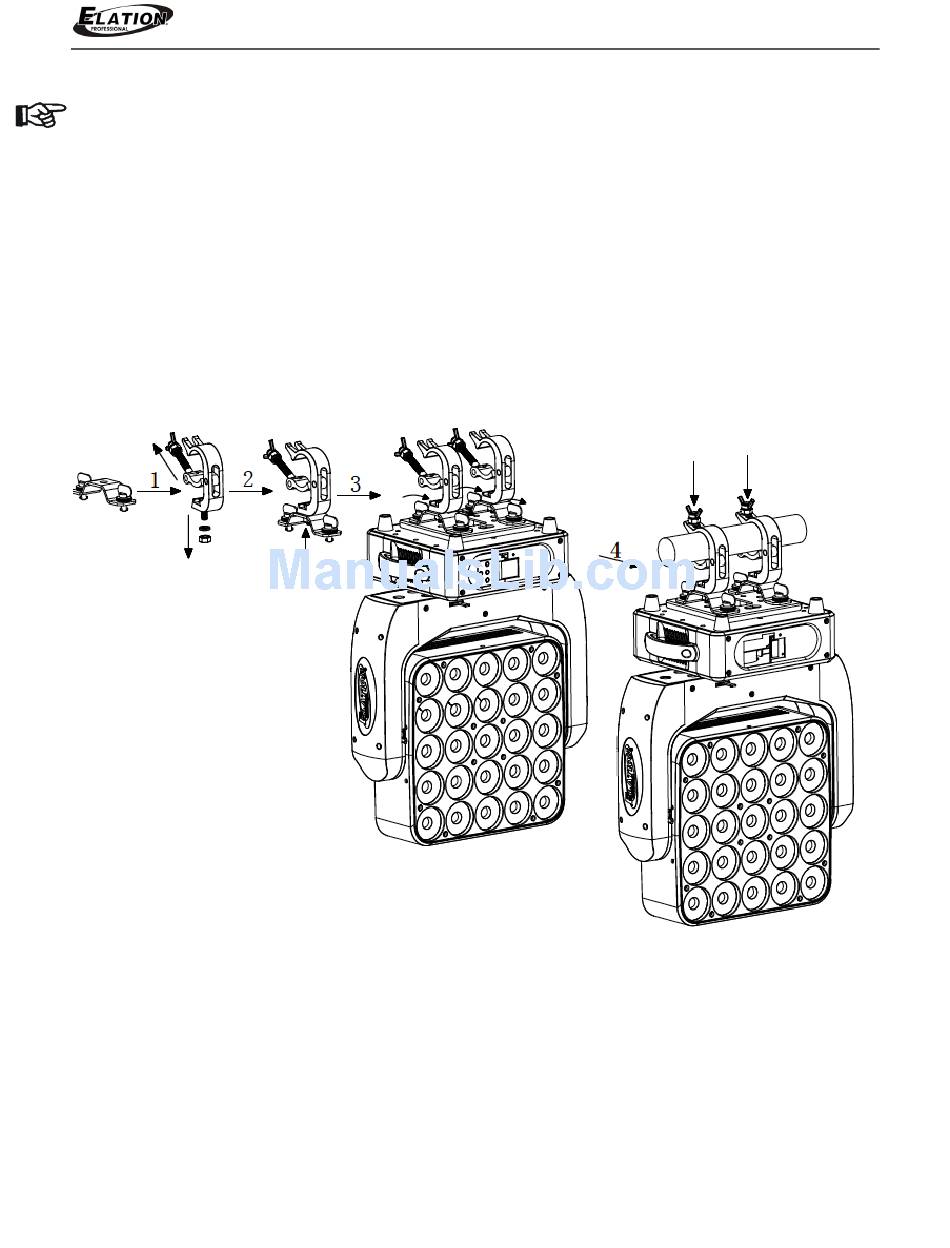

CLAMP MOUNTING
The fixture provides a unique mounting assembly (2x Omega Brackets) that
integrates the bottom of the base. (See the illustration below). When mounting this
fixture to truss be sure to secure an appropriately rated clamp to the included
Omega Brackets using a M10 screw fitted through the center hole of the Omega
Bracket. Be sure to attach an appropriate Safety Cable (not included) to the fixture
using the safety cable rigging point integrated in the base assembly.
SECURING
Regardless of the rigging option you choose for your fixture always be sure to secure
your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable. Be sure to only use the designated rigging point for the safety cable
and never secure a safety cable to a carrying handle.
12
ACL 360 MATRIX™ User Manual Ver 1
