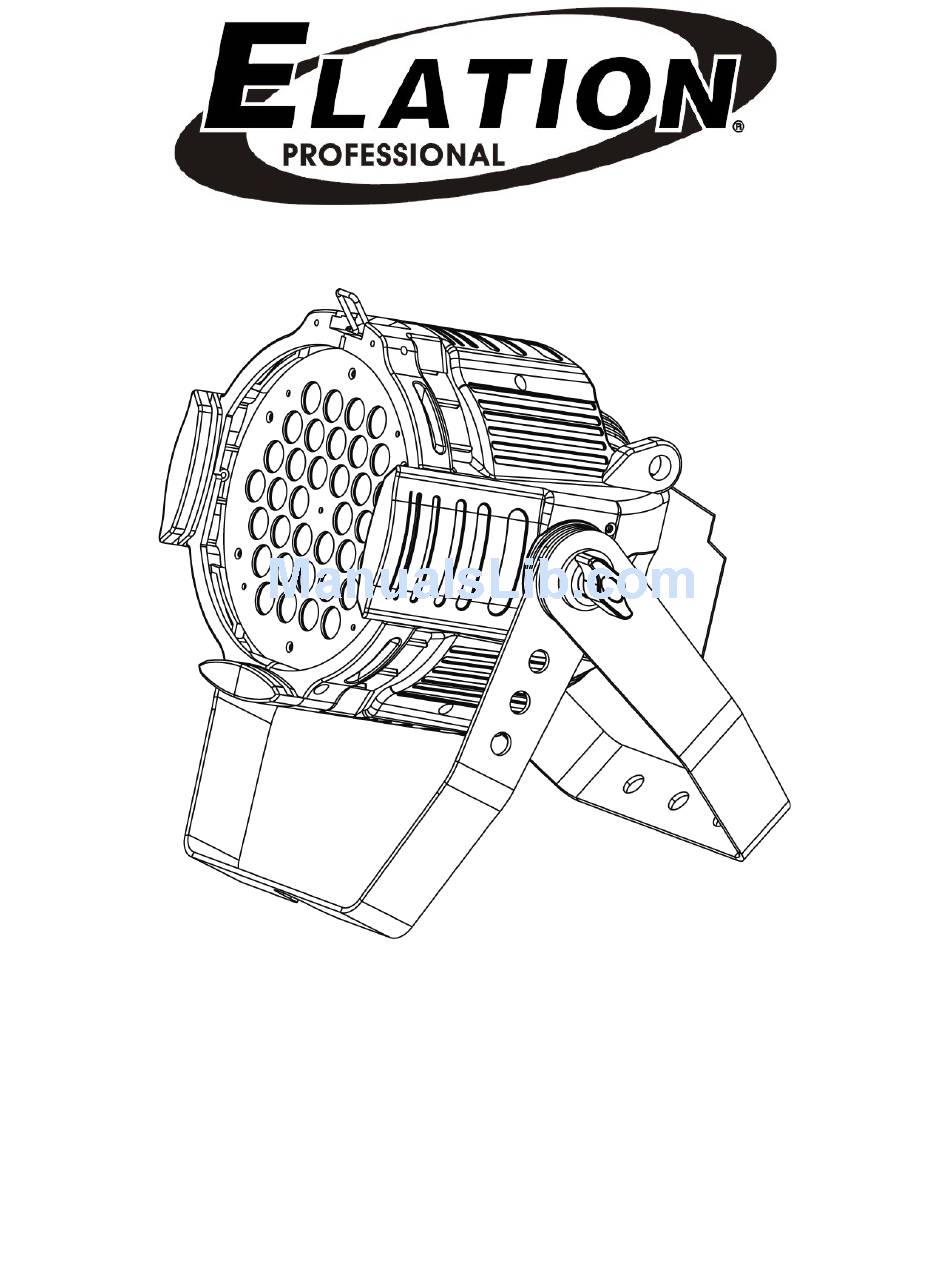

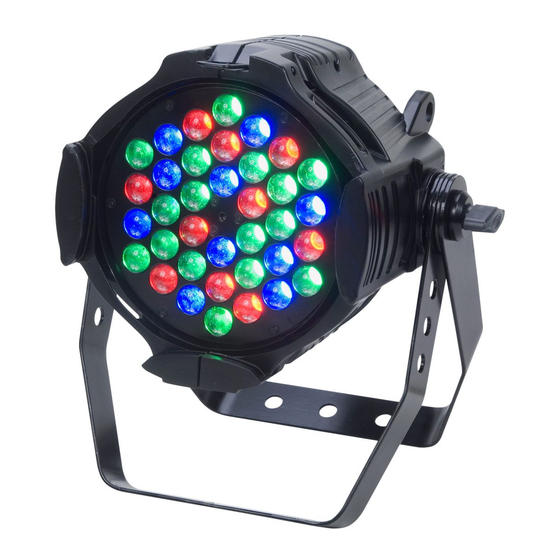

DLED Par Zoom
Elation Professional™
6122 S. Eastern Ave.
Los Angeles, Ca 90040
www.elationlighting.com
Rev. 03/24/2010 – visage
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLED Par Zoom and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation DLED Par Zoom

Summary of Contents for Elation DLED Par Zoom

  • Page 1 DLED Par Zoom Elation Professional™ 6122 S. Eastern Ave. Los Angeles, Ca 90040 www.elationlighting.com Rev. 03/24/2010 – visage Version 1.2...
  • Page 2 DLED Par Zoom ™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 3: Table Of Contents

    12. Working with Built-In programs…………………………………………………………. 30 13. Barn Door / Gel Frame Installation……………………………………………….……. 33 14. Cleaning and Maintenance……………………………………………………………… 34 15. Warranty…………………………………………………………………………………... 35 16. Photometric Data………………………………………………………………………… 37 17. Dimensional Drawings………………………………………………….……………….. 39 18. Circuit Schematic………...………………………………………………………………. 40 19. Technical Specifications…………………………………………...………….………… 41 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 4: General Information

    INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The DLED PAR ZOOM™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit.

  • Page 5: Warranty Registration

    Doing so will void your manufactures warranty. Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The DLED PAR ZOOM™ carries a two-year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 6: Safety Instructions

    4. For safe operation, follow the Installation guide described in chapter six of this manual. Operating the DLED PAR ZOOM™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury.
  • Page 7 15. Please be aware that damages caused by modifications to the device are not subject to warranty. Important Notice: Damages resulting from the disregard of safety and general user instructions found in this user manual are not subject to any warranty claims. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 8: Features

    Electronic Switching Power Supply 100v~240v • Flicker-free operation for television and film • Durable Cast Aluminum Case Design • 0%~100% Dimming (two dimming options; linear & standard) • Optional Accessories: Barn Door Assembly Frost Filter ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 9: General Guidelines

    Most damages are the result of improper operation. Please use the original packaging to transport the fixture in for service. For your own safety, please read this user manual carefully before installing the device. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 10: Fixture Overview

    5) Up Button 6) Down Button 7) Enter Button 8) Power input 9) DMX Output Jack 10) DMX Input Jack 1. Fixture Casing Assembly – Durable cast aluminum casing designed to take the rigors of touring. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 11 DMX signal to the next fixture in the DMX chain. Always use a proper DMX cable for data transfer 10. DMX In Jack – 3-pin Female XLR connector. This lead is the main DMX input lead. Always use a proper DMX cable for data transfer ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 12: Mounting And Installation

    Improper installation can result in bodily injury. CAUTION! Be sure a qualified electrician performs all electrical connections. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 13 See the image below. Clamp Mounting The DLED PAR ZOOM™ provides a unique mounting bracket assembly that allows the unit to stand on a flat surface or to be hung on truss via a clamp in any safe position (see the illustration above).
  • Page 14 See illustrations below. Securing the DLED PAR ZOOM™ Always be sure to secure your fixture with a safety cable when suspending the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above.

  • Page 15: Understanding Dmx

    1 to that fixture no matter where it is located in the DMX chain. The DLED PAR ZOOM™ can be controlled via DMX-512 protocol. The DLED PAR ZOOM™ is a fixture that operates with 8 DMX channels (see pages 28-35 for the different DMX traits). The DMX address is set electronically using the controls on the bottom of the fixture.
  • Page 16 Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 17: Dmx Terminator

    All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control information sent ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 18 In the case of the DLED PAR ZOOM™, which is a eight channel fixture, you should set the starting DMX address of the first unit to 1, the second unit to 9 (8 + 1), the third unit to 17 (8 + 9), and so on.

  • Page 19: Display Indicators

    ™ 8. DISPLAY LED INDICATOR. The DLED PAR ZOOM ™ has a LED indicator on the display. This indicator is designed to give a quick visual indication of the fixtures’ DMX status. The illustration below details the functionality of the LED indicators.

  • Page 20: Display Menu

    SLAV Slave setting (SLAV) Change DMX address via RDMX ON/OFF external controller ALON Automatic Run in Stand (AU-A) Alone AUTO MAST Automatic Run as Master (AU-M) ALON Sound-controlled Run in SOUN (SO-A) Stand Alone ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 21 The addressing feature is what allows DMX to function properly. The DMX address of a fixture is what allows it to communicate with a controller properly. The DMX addressing also allows the fixture to ignore any DMX information coming from the ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 22 “Edit scenes”. With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. 9.1.3 <DISP> - Menu Display Settings This function allows the internal programs to run in either stand-alone or master/salve ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 23 Use this function in the event the zoom motor was physically bumped out of place. <DFSE> - Restore Default This function is used to restore the factory settings of the device. All settings will be set ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 24 DMX controller. For detailed instructions on how to complete this task please see “Working with Built-In Programs” Section 12/ Page 30. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 25: Dmx Addressing

    4. “Address via DMX” is the function that turn the RDMX function on and off. Press ENTER and be sure the function is turned on. 5. Press the UP button to display “ON” to activate this function, or “OFF” to deactivate this function. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 26 420, set channel 1 to a value of “7,” channel 2 to "8" and channel 3 to "164" (256+164=420). 4. Wait for approximately 20 seconds for the unit to complete the address reset function. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 27: Dmx Traits

    This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off. DMX CHANNEL TRAITS The chart below outlines the different DMX. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 28 104-111 R59 Indigo 112-119 R361 Hemsley Blue 120-127 R362 Tipton Blue 128-135 R64 Light Steel Blue 136-143 R67 Light Sky Blue 144-151 R68 Sky Blue 152-159 R69 Brilliant Blue 160-167 R76 Light Green Blue ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 29 Led turn on 64-95 Strobe effect slow to fast 96-127 Led turn on 128-159 Pulse-effect in sequences 160-191 Led turn on 192-223 Random strobe effect slow to fast 224-255 Led turn on General dimming/speed: ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 30 DLED Par Zoom ™ 0-255 Dimming (0-Black, 255- 100% ) Speed from slow to fast /when running internal programs Speed from slow to fast /when running gradient effect Zoom: 0-255 Continuous adjustment from near to far ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 31: Working With Built-In Programs

    With this function you can automatic save the number of steps in the Program Run. 1. Select “REC” by pressing [UP] or [DOWN] button. 2. Press [ENTER], the display shows “RE.XX”, “XX” stands for the number from 1 to 400. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 32 9. Repeat steps 5-9 until you finish setting all the DMX values for all channels of this scene. 10. Once all the channels completed, the display will flash “TIME” 11. Press [ENTER] to edit the time needed, the display shows “TXXX” , “XXX” stands for ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 33 9. Call up the second scene in your controller now. 10. Repeat steps 5-11 until all desired scenes are downloaded. 11. Press [MODE/ESC] to exit. The number of steps can be defined under “STEP” and the scenes can be called up under “RUN”. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 34: Barn Door / Gel Frame Installation

    ™ 13. BARN DOOR / FILTER INSTALLATION The DLED PAR ZOOM can be fitted with a barn door and gel frame for a frost filter. The instructions listed below will detail the procedure for installing both options. 1. To install the gel frame holder only, simply rotate the retaining clip up and insert the gel frame, then rotate the retaining clip down again to secure the gel frame in place.

  • Page 35: Cleaning And Maintenance

    There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 36: Warranty

    United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All ®...
  • Page 37 ® liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. G. This warranty is the only written warranty applicable to Elation Professional Products ® and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

  • Page 38: Photometric Data

    DLED Par Zoom ™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 39 DLED Par Zoom ™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 40: Dimensional Drawings

    DLED Par Zoom ™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 41: Circuit Schematic

    DLED Par Zoom ™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 42: Technical Specifications

    (79 x 76.5 x 60) mm 31” x 30” x 23.6” Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 43 DLED Par Zoom ™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 44 Elation Professional 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-3322 / 323-832-9142 fax www.ElationLighting.com / Info@ElationLighitng.com Rev. 03/24/2010 – visage Version 1.2...
