User Instructions
3/04
Elation Professional
©
4295 Charter Street
Los Angeles Ca. 90058
www.elationlighting.com
Protron Color™
Unpacking:
Thank you for purchasing the Protron Color™ by Ela-
tion Professional
. Every Protron Color™ has been thoroughly tested
®
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during ship-
ping. If the carton appears to be damaged, carefully inspect your unit
for damage and be sure all accessories necessary to operate the unit
have arrived intact. In the event damage has been found or parts are
missing, please contact our customer support number for further
instructions. Please do not return this unit to your dealer without first
contacting customer support at the number listed below.
Introduction:
To optimize the performance of this product, please
read these operating instructions carefully to familiarize yourself with

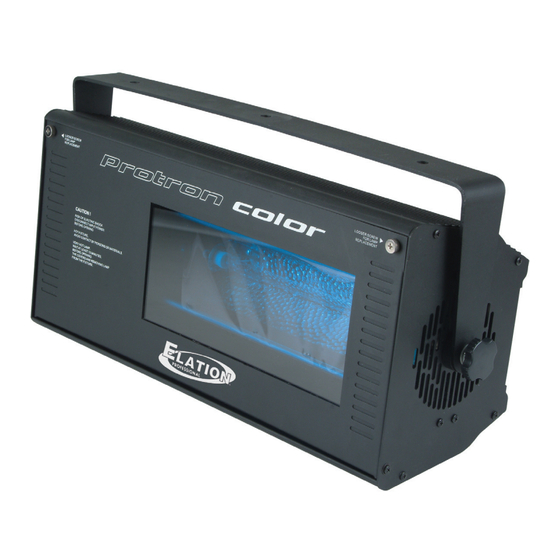

the basic operations of this unit. The Protron Color™ is a 750 watt
strobe, with a color wheel for colorful strobing. Up to 16 units may be
linked together and controlled by single controller. The units' intensity,
flash rate, and flash duration can be manually adjusted using the dip-
switches. For remote control operation an optional remote control is
available from Elation Professional
Customer Support:
port line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.elationlighting.com for any com-
ments or suggestions. For service related issue please contact Elation
Professional
. Service Hours are Monday through Friday 9:00 a.m. to
®
5:00 p.m. Pacific Standard Time.
Voice:
Fax:
E-mail:
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty.
®
Please do not discard the shipping carton in the trash. Please recycle
when ever possible.
Elation Professional
www.elationlighting.com - Protron Color™ Instruction Manual Page 2
©
® -
.
®
Elation Professional
provides a customer sup-
®
(323) 582-3322
(323) 582-3108
support@elationlighting.com
