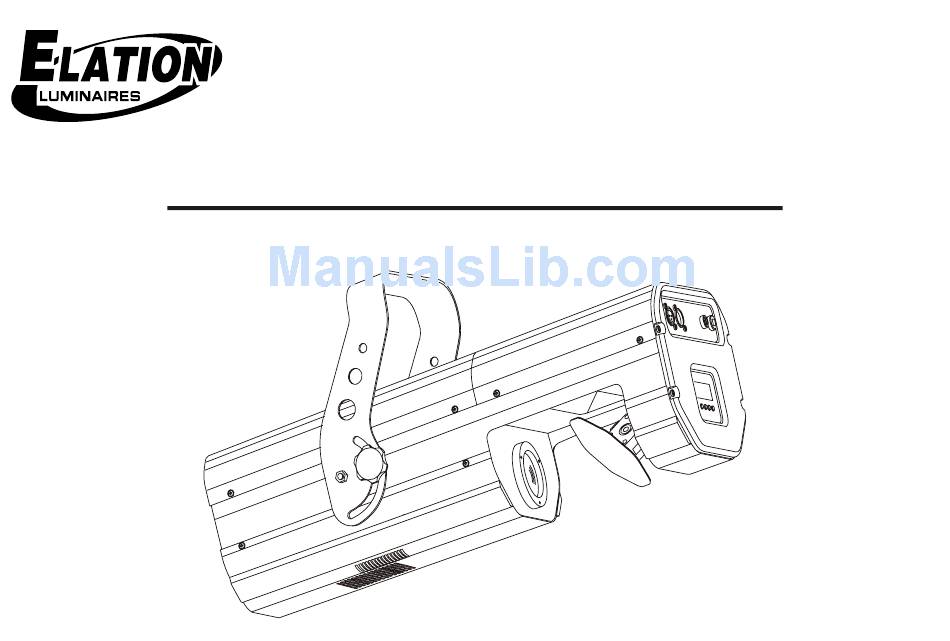

  • Page 1 Service manual V 1 Vision 575...
  • Page 2 PSL20 BLOCK MOTORS WIRING DIAGRAM: E2 W20/45 V1.0 W10/18 V1.0 AWG 28-10 PSL10 PSL10 PSL20 W20/40 V1.0 W20/45 V1.0 NAME: VISION 575 AWG 28-20 AWG 28-20 PSL20 PSL20 PSL20 PSL20 TITLE: Wiring Diagram E1 115V DOCUMENT: Wiring Diagram E1 VERSION: DATE: 30.11.2001...
  • Page 3 OF PRISM FOCUS GOBOWHEEL OF GOBOS GOBOWHEEL HAL506 HAL506 HAL506 HAL506 HAL506 PCB7 PCB8 PCB9 PCB10 PCB11 PSL20 PSL20 PSL20 L932P3BT PCB3 NAME: VISION 575 TITLE: Wiring Diagram E2 DOCUMENT: Wiring Diagram E2 VERSION: DATE: 30.11.2001 SHEET: 2 OF 5...
  • Page 4 OUT3Y 7805 CON1.5 Circuit Diagram 2 IN1A OUT4Y EI1,2 EI3,4 100M/16V 2G2/25V 100n 100n VCC1 VCC2 L293D NAME: VISION 575 P600B TITLE: EZ 783 P600B T6.3A DOCUMENT: Circuit Diagram 1 ARK500/2 P600B 2G2/16V 2G2/16V 2G2/16V VERSION: V 1.0 DATE: 30.11.2001...
  • Page 5 OUT1Y IC21 IN2A OUT2Y IN3A OUT3Y 74HC04 IN1A OUT4Y EI1,2 EI3,4 VCC1 T6.3A VCC2 ARK500/2 L293D NAME: VISION 575 KBU08J TITLE: EZ 783 DOCUMENT: Circuit Diagram 2 2G2/16V 2G2/16V 2G2/16V 2G2/16V 2G2/16V 2G2/16V VERSION: V 1.0 DATE: 30.11.2001 SHEET: 4 OF 5...
  • Page 6 RB1/CAP2 RE1/OE 220R RB2/PWM1 RE2/WR 220R 270R RB3/PWM2 100R RB4/TCLK12 RA0/INT RB5/TCLK3 RA1/RT BC807-40 RA4/RX/TX 16MHz OSC1 RA5/TX/CK OSC2/CLKO MCLR PSL10 TEST 100M/16V 100n PIC17C43 NAME: VISION 575 TITLE: EZND41 DOCUMENT: Circuit Diagram VERSION: DATE: 30.11.2001 SHEET: 5 OF 5...
  • Page 7 15 16 28 29 NAME: VISION 575 Covers TITLE: DOCUMENT: VERSION: DATE: 28.11.2001 SHEET: 1 OF 10...
  • Page 8 NAME: VISION 575 TITLE: Assembly of Ballast DOCUMENT: VERSION: DATE: 28.11.2001 SHEET: 2 OF 10...
  • Page 9 NAME: VISION 575 TITLE: Module of optic DOCUMENT: VERSION: DATE: 29.11.2001 SHEET: 3 OF 10...
  • Page 10 16 17 NAME: VISION 575 TITLE: Module Iris DOCUMENT: VERSION: DATE: 29.11.2001 SHEET: 4 OF 10...
  • Page 11 12 11 NAME: VISION 575 Module of rotating gobos TITLE: 11 11 DOCUMENT: VERSION: DATE: 28.11.2001 SHEET: 5 OF 10...
  • Page 12 NAME: VISION 575 Module of prism TITLE: DOCUMENT: VERSION: DATE: 28.11.2001 SHEET: 6 OF 10...
  • Page 13 NAME: VISION 575 Main panel - exploded TITLE: DOCUMENT: VERSION: DATE: 28.11.2001 SHEET: 7 OF 10...
  • Page 14 NAME: VISION 575 TITLE: Weel Gobo R1 DOCUMENT: VERSION: DATE: 30.11.2001 SHEET: 8 OF 10...
  • Page 15 NAME: VISION 575 TITLE: Wheel Color 3 DOCUMENT: 99010045 VERSION: DATE: 30.11.2001 SHEET: 9 OF 10...
  • Page 16 NAME: VISION 575 TITLE: Wheel Gobo S3 DOCUMENT: VERSION: DATE: 30.11.2001 SHEET: 10 OF 11...
  • Page 17 NAME: VISION 575 TITLE: Wheel Effect 2 DOCUMENT: VERSION: DATE: 30.11.2001 SHEET: 11 OF 11...
