SureCall DualForce User Manual page 10

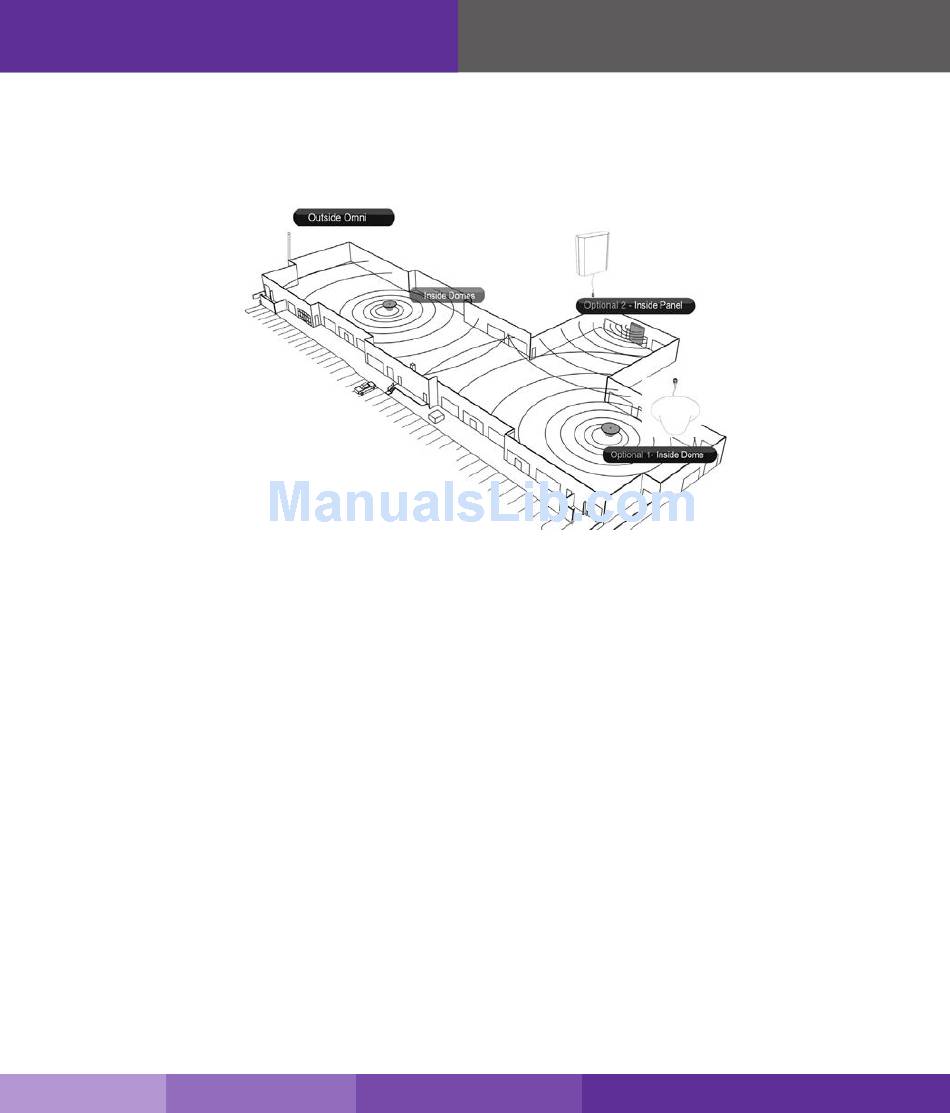

Installing Your Hardware
DualForce's omni antenna comes with equipment for mounting on a vertical wall. For best
results the antenna should be mounted in an upright position.
Step 1: Slide both mounting brackets over the mounting sleeve leaving them loose.
Step 2: Remove the plastic thread protector cap from the bottom of the antenna.
Step 3: Slide the coax cable (not included) through the mounting sleeve (with mounting
brackets) and snugly hand tighten the coax cable connector onto the threads at
the bottom of theantenna.
Step 4: Slip the mounting sleeve over the base of the antenna. Align the hole in the
mounting sleeve with the screw hole in the antenna and fasten the two together
using a small machine screw and washer.
Step 5: Space the mounting brackets as wide apart as possible on the mounting slee-
veand afterensuring that both brackets are facing the same direction, tighten the
brackets using theset screws.
Step 6: Two Options
(Option one, pole mounting): Mount the entire assembly to a 1 to 2 inch diameter
pole (not included) by placing the U bolts around the pole and tightening them
through the holes in the mounting brackets using the nuts and washers. The
antenna should be mounted with the chrome tip pointing toward the sky (perpen-
dicular to the ground). For best results, the white fiberglass portion of the antenna
should be mounted above the roofline and unobstructed in all directions.
10
