Summary of Contents for SureCall EZ 4G

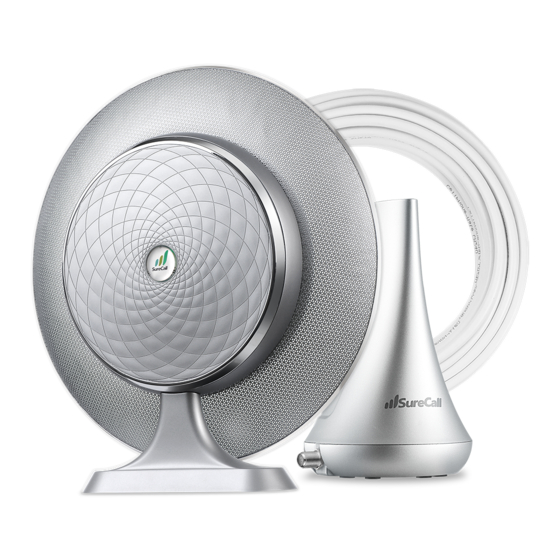

- Page 1 EZ 3G and EZ 4G ™ ™ Home Signal Booster Kit User Guide...
- Page 2 Thank you for your purchase of the EZ 3G or EZ 4G. With this easy set-up guide this booster can be installed in as little as 10 minutes, in which time, you can be enjoying a reliable and consistent cellular connection.
-
Page 3: Table Of Contents
Installing the Insides Anntenna Pg. 9 Booster Hardware Pg. 10 Configure Gain Setting Pg. 11 Troubleshooting Pg. 12 Specification Pg. 13 Warranty Pg. 14-15 Safety Information Pg. 15 SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 4: How It Works
• An antenna built into the back of the booster that communicates with the cell tower. Signals sent from a cell tower are received by EZ 3G or EZ 4G, amplified and then broadcast to your phone via the inside antenna. When your phone transmits, the signal is sent to the inside antenna, amplified and then sent to the cell tower via the EZ 3G or EZ 4G. -
Page 5: Package Contents
Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 6: Before You Install
AC power source ( See page 9 for instruction). Step 3. Install the inside antenna (See page 8 for instruction). Step 4. Configure gain settings on the signal booster if needed. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 7: Installing Your Hardware
Where you install your booster in relation to the carrier’s cell phone tower also determines signal strength. Although cell phone carriers try to place towers for maximum coverage, local ordinances and terrain features can restrict tower locations, which can limit signal strength at your location. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 8: Installing The Signal Booster
1710-1755 MHz band are limited to a maximum antenna height of 10 meters above ground. Mobile and portable stations operating in these bands must employ a means for limiting power to the minimum necessary for successful communications. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 9: Installing The Insides Anntenna
Warning: Window films that are used to block UV rays also block cellular signals. When using a cellular signal booster with a home comprised of film-coated windows a booster that comes with an outdoor antenna must be used. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 10: Booster Hardware
Yellow light blinking Red light blinking: Shut down due to over-powering. OFF: Working properly. Red light yellow light alternately Red light and yellow light blinking: Self-oscillating. blinking OFF: Working properly. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 11: Configure Gain Setting
1. EZ 3G : Find the PCS and Cellular dials on the top of the signal booster. 2. EZ 4G : Find the LTE-A, LTE-V, PCS, Cellular and AWS dials on top of the signal booter. Set the dials according to the coverage area and the distance between the indoor antenna and boost. -
Page 12: Troubleshooting
If the green POWER LED on the signal booster is OFF, return the power supply to SureCall. Contact tech support at 1-888-365-6283 or support@surecall.com, or go to www. -
Page 13: Specification
*All equivalent antennas and cables are suitable for use with the EZ 3G or 4G. Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. -
Page 14: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workman- ship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s... -
Page 15: Safety Information
SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers.SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or... - Page 16 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
