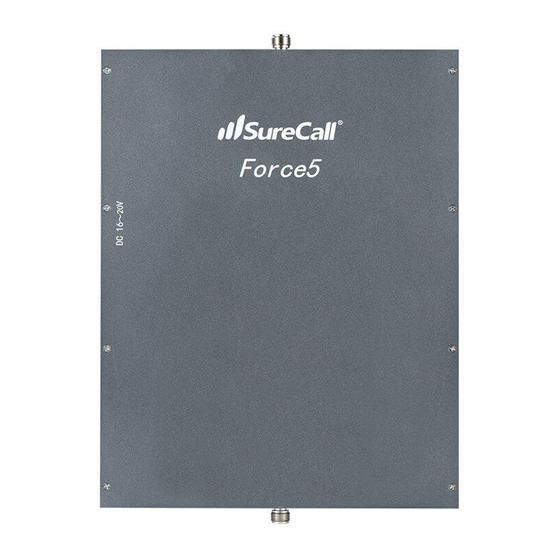

SureCall Force5 User Manual

5-band cellular booster for commercial offices, institutions and housing complexes.
Hide thumbs Also See for Force5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Force5 Industrial
5-Band Cellular Booster for Commercial
Offices, Institutions and Housing Complexes.

User Guide

WARNING
This is NOT a CONSUMER device. It is designated for installation
by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST
have an FCC LICENSE or express consent of an FCC Licensee to
operate this device. Unauthorized use may result in significant
forfeiture penalties, including penalties in excess of $100,000
for each continuing violation.
