CA
Fusion5S
™
Voice & 4G Data Five-Band Signal Booster
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fusion5S CA and is the answer not in the manual?

Questions and answers

Related Manuals for SureCall Fusion5S CA

Summary of Contents for SureCall Fusion5S CA

  • Page 1 Fusion5S ™ Voice & 4G Data Five-Band Signal Booster User Guide...

  • Page 2: Table Of Contents

    Table of Contents Thank you for purchasing SureCall’s Fusion5s cellular signal booster kit. Fusion5s was specifically designed to eliminate frustrations over dropped calls, limited range and slow data rates by amplifying incoming and outgoing cellular signals up to 35,000 square feet.
  • Page 3 How It Works SureCall’s Fusion5s is a high-quality bidirectional signal booster that enhances cellular signals to areas that are prone to weak cellular coverage. Fusion5s works with two antennas: • An inside antenna that communicates with your cell phone. • An outside antenna that communicates with the cell tower.
  • Page 4 Sufficient low loss 50 ohm interior/exterior cable • Cable splitter if installing multiple antennas • Grounded surge suppressor for DC power supply • Multiple antennas (such as the SC-222W-TNC, omni-directional domes by SureCall) SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...
  • Page 5 Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 6: Installation Overview

    1710-1755 MHz band are limited to a maximum antenna height of 10 meters above ground. Mobile and portable stations operating in these bands must employ a means for limiting power to the minimum necessary for successful communications. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 7: Step 1. Find The Area With The Strongest Signal

    You can also go to www.antennasearch.com to find the general location of carrier towers. Signal Strength Poor Good Excellent Outside Antenna Cell Tower SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 8: Step 2. Install The Outdoor Antenna

    Once you have identified your install location, assemble the u-bolt, bracket, nuts and washers onto a pole or pipe (not provided) as shown in the illustration. Keep the connections loose enough to allow the antenna to rotate until SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 9: Installing An Omni Antenna

    5. Remove screws from antenna base and use to secure antenna onto horizontal plate. 6. Connect antenna to end of cable and run along route to planned location of your booster. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 10: Step 3. Install The Indoor Antenna(S)

    For Each Indoor Dome Antenna: Drill a 20 mm diameter hole in the ceiling. The ceiling thickness should be 20 mm, maximum. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...
  • Page 11 This antenna should not be used near open fire or flame. Omni Yagi Splitter Indoor Dome SC-400 INDOOR CABLE Outdoor Cable Indoor Cable RF CABLE THREADED MOUNT CEILING PLASTIC NUT Planned booster location Indoor Cables Indoor Dome SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 12: Installing Panel Antenna(S)

    5. Connect antenna to an indoor cable (1 per antenna) of and run along route to planned location of your booster’s cable splitter. 6. Once all indoor antennas and cables are in place, connect cable runs from indoor antennas to the splitter SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 13: Step 4. Install The Signal Booster

    6. Connect the AC power cord to the signal booster. 7. Connect the plug on the other end of the 110V AC power outlet. 8. Turn the booster’s power switch on. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

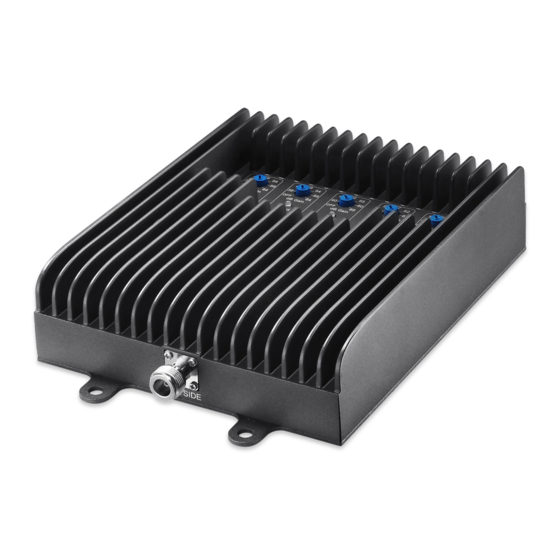

  • Page 14: Booster Hardware

    • As highlighted in the following table, all of the following conditions indicate normal operation: lights off, flashing yellow, or solid yellow. • Only the presence of red LEDs indicate an unresolved issue. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...
  • Page 15 Red Flashing condition until overpowering has been corrected. Note: This can also happen when the gain dial for a frequency band has been turned all the way down. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 16: Troubleshooting

    Verify that the power source is not controlled by a switch that has removed power from the outlet. If the POWER LED on the signal booster is OFF, return the power supply to SureCall. Contact tech support to receive an RMA at: 1-888-365-6283 or support@surecall.com, or go to www.surecall.com 7:00 am –...

  • Page 17: Specifications

    RF Connectors: N Female (both ends ) Power Consumption: <25W Operation Temperature: -4º F to +158º F Dimensions: 9.25 x 6.375 x 1.375 inches Weight: 3 lbs 7784A-FUSION5HP SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 18: Kitting Information

    *Input power level is decreased before reaching AGC-0.5 dB to maintain compliance with the intermodulation product of -13 dBm. Mean power: Measurements obtained on section 6.2 where Pmean = P01+3 dB SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...

  • Page 19: Three-Year Product Warranty

    Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit for signal boosters, all accessories originally included in the signal booster box must be returned with the signal booster.
  • Page 20 Industry Canada and for its customers. SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or errors. The information and specifications in this document are subject to change without notice. © 2017. All Rights Reserved. All trademarks and registered trademarks are the property of their respective owners.
  • Page 21 SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | support@surecall.com...
  • Page 22 48346 Milmont Drive Fremont, California 94538, USA 888.365.6283 www.surecall.com...
