Summary of Contents for EverFocus ENVR8304X 04CH

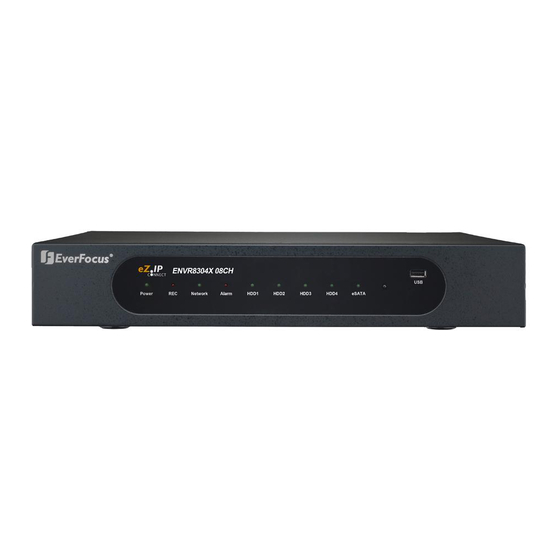

- Page 1 ENVR8304X 04CH / 08CH / 16CH 4 / 8 / 16-Channel NVR, Megapixel Recording, H.264 User’s Manual Copyright © EverFocus Electronics Corp, Release Date: February, 2015 Notice: This content is subject to be changed without notice.
- Page 2 All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. Release Date: February, 2015 QuickTime is a registered trademark of the Apple Computer, Inc.
-
Page 3: Safety Precautions
Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use the NVR at temperatures within 0°C~40°C / 32°F~104°F (Storage). The input power source of ENVR8304X 04CH is 12VDC / 36W max. while the input power source of ENVR8304X 08CH/16CH is 100-240 VAC~ / 150W max. - Page 4 Follow Instructions All operating and use instructions should be followed. Cleaning Unplug the unit from the outlet before cleaning. Do not use liquid cleaners, abrasive or aerosol cleaners. Use a damp cloth for cleaning Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards.
- Page 5 This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and WEEE components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
-
Page 6: Table Of Contents
Installation ......................... 11 2.1 Hard Disk Drive Installation ..................11 2.1.1 Hard Disk Compatibility List ................15 2.2 VESA Monitor Mount (For ENVR8304X 04CH Only) ............ 16 2.3 Basic Connection ......................18 2.3.1 Monitor Connection ..................20 2.3.2 Display Aspect Ratio ..................21 2.3.3 Alarm I/O ...................... - Page 7 4.5 Sequence ........................48 4.6 Zoom ..........................48 4.7 Archiving the Recordings or Log Data to the USB............50 4.8 Logout .......................... 53 Search and Playback ....................54 5.1 Quick Playback ......................54 5.2 Playback Bar ......................... 55 5.3 Searching the Recordings for Playing Back ..............57 5.3.1 Time Search .......................
- Page 8 6.6 Network ........................105 6.6.1 LAN & WAN ..................... 105 6.6.2 Email ........................ 108 6.6.3 DDNS ....................... 109 6.6.3.1 EverFocus DDNS ................. 110 6.6.3.2 www.dyndns.org ................111 6.6.4 FTP ........................112 6.6.5 Alarm Server ....................113 6.6.6 Network Test ....................114 Schedule ........................
- Page 9 7.3.5.2 PTZ ...................... 150 PTZ ..........................157 8. Specifications......................159 Appendix A: Network Overview ..................163 Appendix B: Linksys & D-Link Port Forwarding ..............167 Appendix C: IR Remote Control ..................171 viii...
-
Page 10: Introduction
NVRs which support four 3.5” hard disk drives with up to 16TB storage capacity and also provides one eSATA port for external storage device. When paired with our powerful EverFocus Genie XMS (CMS), the ENVR8304X 04CH / 08CH / 16CH can be used in complex multi-site installations with centralized management. The ENVR8304X... -
Page 11: Overview
ECOR HD 16X1 DVR 1.1 Overview ENVR8304X 04CH: IR Remote 2.5" HDD x 1 Control Mobile App: Mouse / Line Level Line Level MobileFocus Audio Cable EKB200 / USB Audio Out Audio In MobileFocusHD Network EKB500 Power Main Monitor Alarm In / Out or... -
Page 12: Front View
ECOR HD 16X1 DVR ENVR8304X 08CH / 16CH: This figure uses ENVR8304X 16CH as an example. Front View 3.5" HDD IR Remote Control Mouse / USB / EKB200 Rear View Mobile App: eSATA HDD Mouse / USB Line Level Alarm In / Out MobileFocus Expansion / EKB200... -
Page 13: Features
• Free EverFocus DDNS Service – static IP address is not required for reliable remote access • Supports live monitoring and playback of video from mobile devices via MobileFocus / MobileFocusPlus Apps •... -
Page 14: Packing List
ECOR HD 16X1 DVR 1.3 Packing List ENVR8304X 04CH: • ENVR8304X 04CH x 1 • QIG x 1 • CD x 1 (Please see Note 3.) • Mouse x 1 • Power Cord x 1 • Power Adaptor x 1 •... - Page 15 Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.
-
Page 16: Optional Accessories
ECOR HD 16X1 DVR 1.4 Optional Accessories • EKB200 (USB controller keyboard: connect to the PC or the NVR to control the PTZ cameras connected to the NVR). Please refer to 6.8.6 EKB200 Setting and the User Manual of the EKB200 Keyboard. •... -
Page 17: Front Panel
ECOR HD 16X1 DVR 1.5 Front Panel ENVR8304X 04CH: No. Name Description Power Indicates the power is on. Indicates the NVR is connected to the network. Indicates an alarm input is triggered. IR Receiver Receiver for signals from the IR remote control. -
Page 18: Rear Panel
Connection. The USB2.0 port for connecting to a mouse, USB memory stick or EKB200 keyboard. Connects to the RS-485 device, such as EverFocus’ EKB500 RS-485 Port keyboard. Please refer to 2.3.4 RS-485 Port. Connects to the power using the supplied Power Adaptor and Power Port Power Cord. - Page 19 Connects to the Main monitor using a VGA cable. Please refer to 2.3.1 VGA Port Monitor Connection. Connects to the Main monitor using a HDMI cable. Please refer to HDMI Port 2.3.1 Monitor Connection. Connects to the RS-485 device, such as EverFocus’ EKB-500 keyboard. RS-485 Port Please refer to 2.3.4 RS-485 Port.
-
Page 20: Installation
ECOR HD 16X1 DVR Chapter Installation 2.1 Hard Disk Drive Installation ENVR8304X 04CH: 1. Make sure the NVR is power-off. 2. Unscrew the housing screws on the NVR, and open the housing. 3. Unscrew the HDD bracket from the NVR. - Page 21 ECOR HD 16X1 DVR 4. Screw a 2.5" HDD onto the HDD bracket using four supplied HDD Bracket Screws. 5. Connect the SATA Cable to the SATA port on the 2.5” HDD, and connect the internal power cable to the HDD. Power Cable SATA Cable 6.
- Page 22 ECOR HD 16X1 DVR ENVR8304X 08CH / 16CH: 1. Make sure the NVR is power-off. 2. Unscrew the ten housing screws on the NVR, and open the housing. 3. Screw two HDD brackets on both sides of the HDDs using the Sliver Screws. Silver Screw HDD Bracket 4.
- Page 23 ECOR HD 16X1 DVR 5. Connect the internal power cable to the HDD. Note: The internal power cable is connected to the Main board inside the NVR. The power cable features two connectors, which can be used to connect to two HDDs. 6.
-
Page 24: Hard Disk Compatibility List
ECOR HD 16X1 DVR 2.1.1 Hard Disk Compatibility List Please use the hard disk models recommended in the list below to ensure your hard disks will be compatible. SATA Hard Disk Model Capacity Barracuda SATA3 / ST1000DM003 Constellation ES.3SATA3 / ST4000NM0033 Constellation CS SED SATA3 / ST3000NC000 CE-Video SATA3 / ST1000VM002 Seagate... -
Page 25: Vesa Monitor Mount (For Envr8304X 04Ch Only)
2.2 VESA Monitor Mount (For ENVR8304X 04CH Only) You can simply place ENVR8304X 04CH on the desk or install it behind a VESA monitor. (VESA Mount Bracket: 50mmx 50mm / 75mm x 75mm / 100mm x 100mm / 200mm x 200 mm). - Page 26 ECOR HD 16X1 DVR 2. You just need to use two Washer Head Screws to fix the ENVR8304X 04CH onto the back of the monitor, and the front panel of the ENVR8304X 04CH has to be facing UPWARD. Note: VESA mount (50x50 / 75x75 / 100x100 mm): Use the Washer Head Sliver Screws.
-
Page 27: Basic Connection
ECOR HD 16X1 DVR 2.3 Basic Connection ENVR8304X 04CH: Network Power Mouse / Audio Cable supply EKB200 Main Monitor Main Monitor (VGA) (HDMI) CMS: Line Level Web Remote IP Camera Genie XMS Audio In 1~5 Client 1. To view videos, connect a monitor to the HDMI or VGA port using the HDMI or VGA cable supplied by the monitor manufacturer. - Page 28 ECOR HD 16X1 DVR ENVR8304X 08CH / ENVR8304X 16CH: Line Level Mouse / EKB200 Audio In Network Power Cord Router / Switch Main Monitor Main Monitor CMS: IP Cameras Web Remote Line Level (VGA) (HDMI) Genie XMS Client Audio Out 1.
-
Page 29: Monitor Connection
VGA or HDMI port on the rear panel of the NVR. Both of the VGA and HDMI video outputs can be used simultaneously and deliver full HD resolution (1920 x 1080, progressive, 60 Hz. Vert., 68 KHz hor.). ENVR8304X 04CH: HDMI Cable VGA Cable... -
Page 30: Display Aspect Ratio
ECOR HD 16X1 DVR 2.3.2 Display Aspect Ratio It is recommended to select the same ratio of the screen resolution and the camera live view display to avoid black bars showing on the live view screen as the images below. If you select 1920x1080 (16:9) screen resolution in the Screen Mode drop-down list (see 6.5.1 Monitor OSD), it is recommended to also change the camera live view display to 16:9 aspect ratio in the Ratio drop-down list (see 6.1.8 Adjust). -
Page 31: Alarm I/O
ECOR HD 16X1 DVR 2.3.3 Alarm I/O The ENVR8304X 04CH provides 4 alarm inputs and 1 alarm outputs; The ENVR8304X 08CH / 16CH provide 4 alarm inputs and 4 alarm outputs Please refer to the table below for PIN assignment. The NVR supports the radio-controlled clock which will automatically synchronize to the time standard so that you won’t need to reset the time manually. -
Page 32: Port
The RS-485 port, located on the rear panel of the NVR, can be used to connect to an RS-485 keyboard, such as EverFocus’ EKB500, for controlling NVR and HD PTZ cameras. For details on the RS-485 configurations on the NVR, please refer to 6.8.5 I/O Control. The RS-485 pin assignment is... -
Page 33: Connecting The Nvr To The Network
ECOR HD 16X1 DVR 2.5 Connecting the NVR to the Network There are three methods to connect the NVR to the network: Router or LAN Connection, Direct High‐Speed Connection and One‐to‐One Connection. For more information of the network, please refer to Appendix A. Network Overview. 2.5.1 Router or LAN Connection This is the most common connection in which the NVR is connected to a router and allows... - Page 34 Once you have a straight through cable, plug one end into the LAN port on the back of the recorder and the other into the router. Log into the EverFocus NVR menu and go to the Network Setting Menu. To let the router automatically assign an address: ...
- Page 35 ECOR HD 16X1 DVR change the last number of the IP address. For example, if the IP address of the computer is 192.168.2.101, the NVR’s IP address should be 192.168.2.50. To access the NVR from a computer simply open Internet Explorer and in the address ...
-
Page 36: Direct High-Speed Connection
the recorder and the other into the high speed modem. Log into the EverFocus NVR menu and go to the Network Setting Menu. Input the Static IP address, the Subnet Mask, and the Gateway that you obtained from ... -
Page 37: One-To-One Connection
NVR and the other into the network card on the back of the computer. Log into the EverFocus NVR menu and go to the Network Setting Menu. You must use the Static IP option for this type of connection. - Page 38 ECOR HD 16X1 DVR Go to Start. Double-click on Control Panel. Click Network and Sharing Center. Click Local Area Connection. ...
- Page 39 ECOR HD 16X1 DVR Click Properties. Click on Internet Protocol Version 4(TCP/IPv4) and then click Properties. ...
- Page 40 ECOR HD 16X1 DVR Select Use the following IP address. Assign an IP address of 192.168.1.2, a Subnet Mask of 255.255.255.0, and a Default Gateway of 192.168.1.1 and then click OK. Restart both of the computer and the NVR. ...
-
Page 41: Checking The Dynamic Ip Address
You can look up the IP address and access the Web interface of the NVR using the IP Utility (IPU) program, which is contained in the CD. It can also be downloaded from EverFocus’ Website: http://www.everfocus.com/HQ/Support/DownloadCenter_p1.aspx. Please connect the NVR in the same LAN of your computer. - Page 42 ECOR HD 16X1 DVR b. Type the Username and Password. Click the OK button, the status of the selected camera will display Login. Note: 1. The default user ID is admin and the default password is 11111111. 2. If you select more than one NVRs that have the same user ID / password, you will be able to log in several NVRs at once.
- Page 43 ECOR HD 16X1 DVR If you log in for the first time, follow the instruction steps on the interface to update the latest Plugin version (ePlayer). After reloading the webpage, the login window pops up again. Type the user ID and password to log in again. By default, the user ID is admin and the password is 11111111.
- Page 44 ECOR HD 16X1 DVR If you encounter the following problem or still can’t access the remote Web interface, please see below: If the Error window appears, please be sure to close ALL the Web browser windows first then click Retry. When the Completing the ePlayer Setup Wizard window shows up, click Finish.
- Page 45 ECOR HD 16X1 DVR You may need to turn User Account Control off if you still can’t see the Remote Live View. On the computer, click Start > Control Panel > System and Security > Action Center (click Change User Account Control Settings), the User Account Control Settings window appears. Adjust the slide bar to Never Notify and then click OK.
-
Page 46: General Operation
ECOR HD 16X1 DVR Chapter 3. General Operation There are three ways to control the ENVR8304X series: with a Mouse, the handheld IR Remote Controller, or the optional device EKB500 Keyboard. For details on the IR remote control, please refer to Appendix C, IR Remote Control. This chapter will discuss the basic operations using the mouse and the front panel buttons. -
Page 47: Forget Your Password
1. If you forget your password, please email the Serial Number of the NVR to techsupport@everfocus.com, and then EverFocus will send you a verification code. 2. Input this verification code in the Password field of the Login window within 24 hours, and check the Verification Mode box. -
Page 48: Field Input Option
ECOR HD 16X1 DVR 3.4 Field Input Option You may found the following fields in the Configuration menu. Follow the instructions below to configure the settings. Text Box: Click on the box and an on-screen keyboard will appear. On-Screen Keyboard: Click on a button to input that character. The buttons on the right and bottom have the following functions: Caps Switch to capital letters... -
Page 49: Camera Selection
ECOR HD 16X1 DVR 3.5 Camera Selection You can control each camera individually by selecting that camera. To select a camera, follow the instructions below: 1. Click a camera on the screen, and the selected camera will be highlighted with a red frame. 2. -
Page 50: Osd Root Menu
ECOR HD 16X1 DVR Chapter 4. OSD Root Menu Note: ALL the FIGURES in the following chapters and sections are using the OSD of ENVR8304X 8CH as examples; the only one difference among the three models of the ENVR8304X series is the numbers of channels which are 4, 8 and 16 respectively. - Page 51 ECOR HD 16X1 DVR Click to display the Layout Bar. Select a layout type for the live view Layout display on the Main Monitor. For details, please refer to 4.2 Layout Switching. Click to display the Channel Changing Bar. To switch the selected camera Channel to a specific channel, please refer to 4.3 Channel Switching.
-
Page 52: Ptz
ECOR HD 16X1 DVR 4.1 PTZ You can use the PTZ Control Panel to control the connected PTZ cameras. To bring up the PTZ control panel, on the OSD Root Menu, click the PTZ button The following actions can be performed using the PTZ Control Panel: 1. - Page 53 9. To operate the Auto Pan function, click the Auto Pan button. 10. To operate the Pattern function, click the Pattern button. The Pattern is the “0” Tour in EverFocus and Pelco PTZ cameras. 11. To operate the Tour function: a.
-
Page 54: Express Control Of Ptz
ECOR HD 16X1 DVR 4.1.1 Express Control of PTZ If the PTZ Control Panel has first been opened and then hidden, the mouse can be used to control basic PTZ functions. Move your mouse cursor on the screen, the mouse cursor will turn into a control icon (direction, focus or zoom) in different areas of the screen. -
Page 55: Layout Switching
ECOR HD 16X1 DVR 4.2 Layout Switching The ENVR8304X 4CH / 8CH / 16CH have different layout options. To change layout, follow the steps below: Right-click to bring up the OSD Root Menu and click the Layout icon. Click on the desired layout. 4.3 Channel Switching You can switch the selected camera to a specific channel. -
Page 56: Display
ECOR HD 16X1 DVR 4.4 Display You can display system and camera status on the live view screen. Follow the steps below: 1. Click the Display button on the OSD Root Menu to display the system and camera status. Click the button to choose the desired display mode: 2. -
Page 57: Sequence
ECOR HD 16X1 DVR 4.5 Sequence The sequence function is used to display each channel in sequence mode. To enable this function: Click the Sequence button to enter the sequential switching mode. The NVR will display one channel at a time in full screen. The channels will be displayed in the sequence and for the amount of time as configured in the System >... - Page 58 ECOR HD 16X1 DVR To enter the Zoom mode: Select a camera and then click the Zoom button on the OSD Root Menu to zoom in the camera view to 2X. The ZOOM 2X stamp will be displayed on the top screen. Navigate the camera view to the desired position by moving your mouse cursor over the camera view.
-
Page 59: Archiving The Recordings Or Log Data To The Usb
ECOR HD 16X1 DVR 4.7 Archiving the Recordings or Log Data to the USB You can archive the recordings or log data (event and motion) to the USB storage device. On the OSD Root Menu, click the Copy icon , the following menu appears. Camera: Select the desired cameras. - Page 60 ECOR HD 16X1 DVR EFPlayer: Unzip the EFPlayer file and double-click to open it as below. The EFPlayer can only display up to 16 channels at one time. Figure 4-9 No. Name Function Description Shows the recording information of the device, including Information model of the recorder, recording start time / date, current playback time, recording end time / date.
- Page 61 ECOR HD 16X1 DVR : Click to reverse play /play. : Click to pause play backing. Click to take a snapshot of the channels displayed on the UI. Snapshot You can save the snapshot file to a desired location. Mute Click to mute;...
-
Page 62: Logout
ECOR HD 16X1 DVR 4.8 Logout You can log out the NVR by clicking the Logout icon on the OSD Root Menu to bring up the Logout Confirmation window as below. Press “Yes” when you are ready to logout of the system. You will need to login again before accessing the OSD Root Menu. -
Page 63: Search And Playback
ECOR HD 16X1 DVR Chapter 5. Search and Playback You can use the Quick Playback function to play back the recordings start from the pre-configured time or use the Search functions to search for the desired recordings for playing back. 5.1 Quick Playback To start using the Quick Playback function, follow the steps below: 1. -
Page 64: Playback Bar
ECOR HD 16X1 DVR 5.2 Playback Bar The playback bar is the fastest way to show video from the exact time which users want to see. The playback bar allows users to see both a timeline and the current playback indicator. Users can then click the timeline to move the indicator to the desired position. - Page 65 ECOR HD 16X1 DVR No. Name Description Click to play the recorded data forward. Click this button again to Play/Pause Pause the playback. Click the Stop button to stop all playback actions and exit the playback area. Fast Forward Click to play the recorded data in fast forward. L1: Entire Time Bar scale is 30 days.
-
Page 66: Searching The Recordings For Playing Back
ECOR HD 16X1 DVR 5.3 Searching the Recordings for Playing Back You can search the recordings for playing back by using the Search menu. On the left side of the Search menu, select Time Search, Event Search, Smart Search, or Snapshot Search to enter to the setup menu. -
Page 67: Event Search
ECOR HD 16X1 DVR 5.3.2 Event Search Start Date / End Date: Click to select the start / end date. Start Time / End Time: Click to select the start / end time. Camera: Select the desired cameras to be searched. Event: Select an event type to be searched. -
Page 68: Snapshot Search
ECOR HD 16X1 DVR 5.3.3 Snapshot Search You can display video frames in snapshot and resume a video from where the snapshot has been set up. Search Date: Click to bring up the on-screen keyboard to select the date. Search Time: Click to bring up the on-screen clock to select time. Search Direction: Click to search forward / backward based on the setup time above. - Page 69 ECOR HD 16X1 DVR To resume the video: 1. Click the Search button, the search results are displayed in 16 screen division. In this picture, you can see the time layouts on the upper-left corner of each snapshot, which are set up with 5-minute interval.
-
Page 70: Pos Search
ECOR HD 16X1 DVR 5.3.4 POS Search The POS Search function allows users to search and play back the recordings with the POS transaction data within a specific time. Start Date / End Date: Click to bring up the on-screen keyboard to select the start / end date. Start Time / End Time: Click to bring up the on-screen clock to select the start / end time. - Page 71 ECOR HD 16X1 DVR You need to set up the POS settings before searching the video with POS transaction data. Please follow the steps below: Connect the POS system to the RS-485 port at the rear panel of the DVR. Make sure the RS-485 settings of the DVR are the same as those of the POS system.
-
Page 72: Configuration
ECOR HD 16X1 DVR Chapter 6. Configuration The ENVR8304X series can be configured through a series of menus on screen by using a Mouse, the supplied IR Remote Control, or the optional device EKB500 keyboard. The following operations are examples of using a Mouse. This chapter describes the functions and options of the Configuration Setting in the on-screen display (OSD) menus. - Page 73 ECOR HD 16X1 DVR List of Configuration Options: Please find the topic of interest by referring to the section prefixed to each option. 6.1.1 Camera Status 6.1.2 Auto Search 6.1.3 Basic 6.1.4 Advanced 6.1 Camera 6.1.5 PTZ 6.1.6 Tracking 6.1.7 Pattern Tour 6.1.8 Adjust 6.1.9 eZ Hopper 6.2.1 Record...
-
Page 74: Camera
ECOR HD 16X1 DVR 6.1 Camera You can view the camera status, search the connected IP cameras and configure the Basic, Advanced, PTZ, Tracking, Pattern Tour and Adjust in the following setting pages. 6.1.1 Camera Status This page displays added IP cameras’ status. Channel: Displays the channel number. -
Page 75: Auto Search
ECOR HD 16X1 DVR 6.1.2 Auto Search The function allows users to automatically search and add cameras in the same network. To search cameras: 1. Click the Search button. 2. The IP cameras connected in the same network will show up in the Camera List. - Page 76 ECOR HD 16X1 DVR To add cameras: (A). You can add 4 / 8 / 16 cameras automatically assigned by the NVR to the channels at one time or (B). you can also add cameras one by one. A. Click Auto Assign, the system will automatically add the first eight cameras shows on the list to channel 1~4 / 1~8 / 1~16.
-
Page 77: Basic
ECOR HD 16X1 DVR 6.1.3 Basic The function allows users to manually add IP cameras. Address: Type the IP address of the camera. Port: The default port is 80. ID: Enter the account username of the camera. Password: Enter the password of the camera. Add to Channel: Select a channel number to add this camera to that channel. - Page 78 ECOR HD 16X1 DVR To successfully add the IP camera, you need to click the Save button in this page. You can also configure the detailed settings as follows. 【 Main / Sub Stream Parameter 】 You can separately configure the settings for the Main / Sub Streams.
-
Page 79: Advanced
ECOR HD 16X1 DVR 6.1.4 Advanced The Advanced Setting is for users to view, add, delete or modify the cameras in the Camera List. Add: Click the button to add camera manually. To add the cameras, please see 6.1.3 Basic. Delete: Click button to delete the camera. -
Page 80: Ptz
ECOR HD 16X1 DVR 6.1.5 You can set up the Preset and Auto Pan settings in this page. 【 Camera 】 : Select a PTZ camera. 【 Speed 】 : Select a pan and tilt speed from the Speed drop-down list for the camera to move to the directions when you use the direction buttons during the configuration period 【... - Page 81 ECOR HD 16X1 DVR Preset: You can configure up to 192 preset positions in this field. To set up a Preset Positions: 1. Adjust the camera view to a desired position using the direction button. You can select the pan / tilt speed from the Speed drop-down list for controlling the direction buttons. Adjust zoom, focus and Iris if necessary.
- Page 82 ECOR HD 16X1 DVR Auto Pan: You can only configure one Auto Pan sequence. The configured Auto Pan (A to B Pan) sequence will always be numbered as “1”. The number “2” will always be an endless pan around the given (not preconfigured) X/Y tilt axis. Endless Mode: The Endless Mode is always numbered as “99”...
-
Page 83: Tracking
ECOR HD 16X1 DVR 6.1.6 Tracking To set up the Auto Tracking function: Auto Tracking Start Point: Check the box to enable a camera position to which the camera will return to after a tracking operation. Use the direction buttons to adjust the camera view to a desired position where you want to set up the position as the Auto Tracking Start Point. - Page 84 ECOR HD 16X1 DVR Note: Please note that if enabling the Pan/Tilt Limits function, the position of the Start Point should be within the range of the Pan/Tilt Limits, or there will be a pop-up message showing “Setting error: Start Point is not inside Pan/Tilt Limits”. Zoom control on tracking: ...
-
Page 85: Pattern Tour
ECOR HD 16X1 DVR 6.1.7 Pattern Tour Pattern: You are given 90 seconds to move the camera (via the PTZ buttons) to different positions (and different zoom / focus / Iris positions). The camera then saves that sequence under the Pattern No. - Page 86 ECOR HD 16X1 DVR Tour: You can combine up to 16 preconfigured camera positions and patterns into one long sequence. Up to 16 Tour sequences can be set up. To set up a Pattern Sequence: 1. Select a number from the Tour No drop-down list. 2.
-
Page 87: Adjust
ECOR HD 16X1 DVR 6.1.8 Adjust You can adjust detail camera settings in this page. Camera: Select a desired camera for adjusting the following settings. Device Title: Enter a camera title. Record Dual Stream: Select to enable or disable the dual streams recording function. Record Mode: Select a recording mode from the drop-down list. - Page 88 ECOR HD 16X1 DVR Contrast: Move the bar to adjust the contrast. Color: Move the bar to adjust the color. Sharpness: Move the bar to adjust the sharpness. Apply To: Click the button to apply the same settings to the desired cameras. Save: Click to save the settings.
-
Page 89: Ez Hopper
ECOR HD 16X1 DVR 6.1.9 eZ Hopper You can just use one mouse to control up to 16 DVRs/NVRs in the same LAN network by enabling the eZ Hopper function. Note: Before using this function, you need to set up all the monitors to be the same resolution, please refer to 6.5.1 Monitor OSD. - Page 90 ECOR HD 16X1 DVR 2. The position of each device on the OSD layout represents the physical positions of your monitors which you should arrange and place in the setup environment. Main Server Sub Server Monitor Monitor 3. Click an IP address field to enter the IP address of a Sub Server and the first Sub Server must be adjacent to Main Server on the OSD layout (NVR 2 or NVR 5), or it won’t work.
- Page 91 ECOR HD 16X1 DVR For the Sub Server: 1. Select Sub Server in the Mode drop-down list, and check the Enable box. 2. Enter the IP address of the Main Server, and click Save. 3. When the message pops up as below, the eZ Hopper function is enabled. So, you can now use the mouse connected to the Main Server to control this Sub Server’s OSD.
-
Page 92: Record & Playback
ECOR HD 16X1 DVR 6.2 Record & Playback You can configure the basic recording settings on the hard disk. You can also configure the settings for Quick Archive and Quick Playback. 6.2.1 Record Record Overwrite: Check the box to overwrite the hard disk when it is full. Note that unless this box is checked, or the NVR will stop recording when the hard disk is full. -
Page 93: Quick Archive
ECOR HD 16X1 DVR 6.2.2 Quick Archive You can quickly archive all the recordings to the USB storage device 1. Plug an USB storage device before quick archiving. 2. Click the Quick Archive Interval drop-down list and select an interval time (1, 5, 10, 15, 20, 30 or 60 minutes). -
Page 94: Playback
ECOR HD 16X1 DVR 6.2.3 Playback Quick Playback: Check the box to enable the configured playback start time in the below field. Playback from X seconds ago: Set up a time between 60 and 3600 seconds for the playback start time. When you click the Playback button on the DSD Root menu, the system will play back the recordings start from the setup time. -
Page 95: Event
Network Alarm: Check the box to send out a network alarm to a client PC when an alarm event occurs. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). - Page 96 ECOR HD 16X1 DVR Auto Lock: Check the box and the events will be recorded in a write protected segment of the hard disk (will not be overwritten). The NVR will lock a period of time when the alarm occurs. The length of the time depends on NVR setting (see 6.4.2 Lock / Format).
-
Page 97: Connect A Radio Clock To The Nvr
ECOR HD 16X1 DVR The following time synchronization function must work with the radio-controller clock. Time Sync Enable: Check to enable the time synchronization with the connected radio-controlled clock. Time Sync Interval: Select a time sync interval time (by hour) for the NVR to synchronize the time with the radio-controlled clock. -
Page 98: Connection Loss
Network Alarm: Check the box to send out a network alarm to a client PC when video loss event occurs. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). - Page 99 ECOR HD 16X1 DVR Output Type: Select an output type when an alarm is triggered. Timeout: Select this option and then set up the Timeout Duration in the field below, the alarm output will last for the setup duration time (10 ~ 150 seconds). Permanent: Alarm will remain active until the user presses the “Enter”...
-
Page 100: Motion
Network Alarm: Check the box to send out a network alarm to a client PC when motion occurs. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). - Page 101 ECOR HD 16X1 DVR FTP Upload: Check the box to enable uploading recordings to the FTP server function. To setup the FTP server, please refer to 6.6.4 FTP. FTP Upload File Type: Select MP4 file type to upload 10-second videos to FTP server; select JPEG file type to upload snapshots to the FTP server.
- Page 102 ECOR HD 16X1 DVR To Edit the Motion Grids: 1. Click the Edit Motion Grid button, the Motion Setting menu appears. 2. Click on the image and the grid will be displayed. 3. To set up a motion area, drag a rectangle with your mouse (from top to bottom / upper- left to lower-right).
-
Page 103: Other
Network Alarm: Check the box to send out a network alarm to a client PC when an alarm event occurs. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). -
Page 104: Disk Temperature
Network Alarm: Check the box to send out a network alarm to a client PC. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). -
Page 105: Disk Failure
Network Alarm: Check the box to send out a network alarm to a client PC when HD fails. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). -
Page 106: Disk Full
Network Alarm: Check the box to send out a network alarm to a client PC when HD is full. This feature works with EverFocus’ CMS software, including PowerCom and PowerVideo Plus. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). -
Page 107: Disk Off
Network Alarm: Check the box to send out a network alarm to a client PC when HD is off. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). -
Page 108: Power Loss
Network Alarm: Check the box to send out a network alarm to a client PC when power has been restored. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 6.6.5 Alarm Server). -
Page 109: Network Loss
ECOR HD 16X1 DVR 6.3.4.7 Network Loss Log: Check the box to record alarm events to log data. Buzzer: Check the box to enable buzzer when network is lost. Alarm Output: Select an alarm output number. When an alarm is triggered, the signal will be transmitted through the selected alarm output relay. -
Page 110: Disk
ECOR HD 16X1 DVR 6.4 Disk The Disk menu is used to review the NVR’s hard drive settings and status. No value in this menu can be configured by the operator. 6.4.1 Disk Record Time (Start): Shows the earliest recording time of the NVR. Record Time (End): Shows the latest or most current time on the NVR. -
Page 111: Lock / Format
ECOR HD 16X1 DVR 6.4.2 Lock / Format Maximum Lock (%): Sets the maximum percentage of the hard disk space reserved for Locked Event Recordings. To set up the Locked Event Recordings, please select the Auto Lock item in 6.4.3 Motion or 6.4.1 Alarm. -
Page 112: Display Setting
ECOR HD 16X1 DVR 6.5 Display Setting You can configure the settings for displaying the camera / NVR information on the live view image. You can also set up the sequencing order for the Main monitor. 6.5.1 Monitor OSD Main Monitor Title: Check the box to display camera titles. -
Page 113: M/T Seq
ECOR HD 16X1 DVR 6.5.2 M/T SEQ You can configure up to 20 steps of the sequencing order for the Main monitor. The Sequence will repeat continuously from step 1 to step 20 until interrupted. Monitor: Select Main or Call Monitor to configure the sequencing order. Step: The sequencing order. -
Page 114: Network
ECOR HD 16X1 DVR 6.6 Network The NVR allows you to use a Web browser to remotely view and manage the system. You can also receive live video streaming from the NVR using your smartphone. Note: Since every Network Configuration is different, please check with your Network Administrator or ISP to see if your NVR should use specific IP addresses and/or port numbers. - Page 115 ECOR HD 16X1 DVR DHCP: DHCP server in LAN will automatically assign an IP configuration for the network connection. PPPoE: For direct connection to the DSL only. Verify with your ISP if they use PPPoE. (The option is only for WLAN (WAN) port) IP address: Displays the NVR’s current IP Address.
- Page 116 ECOR HD 16X1 DVR the IP address of your router/gateway, or it may be the actual IP address of the local DNS server). The DNS server IP is required because your DNS server provides critical information necessary for the NVR to communicate with the DDNS server. You can obtain the actual DNS IP from your Internet Service Provider (ISP);...
-
Page 117: Email
ECOR HD 16X1 DVR 6.6.2 Email You can configure the Email settings for NVR to send Email alert when an event occurs. SMTP Server: Assign the SMTP (e-mail) server’s name. Note that for more reliable email service, use the server’s IP address. SMTP Port: Assign the port number used by the SMTP server. -
Page 118: Ddns
ECOR HD 16X1 DVR 6.6.3 DDNS DDNS (Dynamic Domain Name System) is a service used to map a domain name to the dynamic IP address of a network device. You can set up the DDNS service for remote access to the NVR. DDNS assigns a domain name (URL) to the NVR, so that the user does not need to go through the trouble of checking if the IP address assigned by DHCP Server has changed. -
Page 119: Everfocus Ddns
~ ! @ # $ % ^ & * ( ) + < > " ; : . , Note: 1. It is not necessary to append the HTTP port number to the DDNS name. The EverFocus DDNS server not only keeps track of your NVR’s IP address, but also keeps track of the ports. -
Page 120: Www.dyndns.org
ECOR HD 16X1 DVR 6.6.3.2 www.dyndns.org DDNS Service: Select www.dyndns.org from the drop-down list. Host name: Host name created through the dyndns account. User name: User name of the dyndns account. Password: Password of the dyndns account. Confirm: Input the password again to confirm. Setup Steps: 1. -
Page 121: Ftp
ECOR HD 16X1 DVR 6.6.4 FTP Set up the FTP server settings to enable the FTP function. The function is for users to upload the alarm / motion recordings or snapshots from sub stream to the FTP server. You can choose to upload either the recordings or snapshots, please see 6.3.1 Alarm and 6.3.3 Motion. -
Page 122: Alarm Server
ECOR HD 16X1 DVR 6.6.5 Alarm Server You can send out the alarm notifications to EverFocus’s CMS software. Please also consult the CMS’s user manual for network alarm settings. Server IP1~3: IP address of client PC. The network alarm can be transmitted to up to 3 addresses. -
Page 123: Network Test
ECOR HD 16X1 DVR 6.6.6 Network Test The Ping utility is useful in diagnosing connectivity problems by obtaining responses from nodes progressively farther along the network. DNS functionality can also be confirmed by entering a valid DNS name instead of an IP address. To verify basic network connectivity between the NVR and other LAN or WAN nodes, click the Ping button. -
Page 124: Schedule
ECOR HD 16X1 DVR 6.7 Schedule You can set up the recording schedule with the desired time, event types or FPS. 6.7.1 Express Setup You can set up a weekly recording schedule for the NVR to automatically record videos. Weekend Start: Select a start date and time for the weekend. Weekend End: Select an end date and time for the weekend. -
Page 125: Holidays
ECOR HD 16X1 DVR 6.7.2 Holidays In addition to set up a weekly recording schedule, you can also set up a holiday recording schedule to automatically record videos on a specific day of the year. Date Type: Select Holiday or Others if you have configured the settings in 6.8.1 Express Setup. The Holiday and Others are two different groups designed for you to assign special days independently. -
Page 126: Schedule
ECOR HD 16X1 DVR 6.7.3 Schedule You can set up the camera recording mode by time of day on specific days of the week and/or holidays and other days. Please note that after the configuration, you have to check the Schedule Record box in the Record setting page to enable the schedule recording mode. - Page 127 ECOR HD 16X1 DVR Select a camera first and double-click on desired start time block (no number on it) on a time bar. The selected time block will show a new sequence number on it and all the following blocks will turn to gray. This means the grey time blocks has been set to No Recording mode.
- Page 128 ECOR HD 16X1 DVR Apply to Days: This button can be used to copy schedules to other days. Select which days you wish to copy to. "Select All" selects all days, “Clear All” deselects all days. Click “OK” to copy the settings or "Cancel" to exit without copying. Apply to Cameras: This button can be used to copy schedules to other cameras.
-
Page 129: System Setting
ECOR HD 16X1 DVR 6.8 System Setting You can configure the general settings for the NVR in this menu. 6.8.1 Date/Time You can set up the date and time for the NVR. Note: Clicking Save at this page will disable the Daylight Saving function if this function has been enabled and a notice message will pop up as “Please enable the Daylight Saving Time again if the function is needed”. - Page 130 ECOR HD 16X1 DVR The default NTP address is the NTP server in Taiwan. To find a compatible NTP address of the NVR’s physical location, follow the steps below: a. Use a computer connected to the Network. b. Click Start > Run > type “command” and then click OK. c.
-
Page 131: Daylight Saving
ECOR HD 16X1 DVR 6.8.2 Daylight Saving You can configure the settings for NVR to automatically adjust to daylight saving time. Note: If this page is grayed out, it means that you have enabled the Auto daylight saving function, please refer to 6.8.1 Date/Time. If you need to use the Daylight Saving function, you must set up the Date / Time first in Date/Time setting page. -
Page 132: User Group
ECOR HD 16X1 DVR 6.8.3 User Group This setting page is used for configuring the privilege of the three access levels: Administrator, Manager and Operator. Check the boxes under an access level to enable the privileges of that access level. For example, if you check the Clear Log box under the Operator access level, only the Operator has the privilege to clear log. -
Page 133: User Management
ECOR HD 16X1 DVR 6.8.4 User Management You can create multiple user accounts (max: 20 user accounts) with different privileges. The NVR has default user accounts which you can choose to copy, edit, add or delete, and the default password is 11111111. Copy: Click the button to copy the settings of an existing user account to a new user account. - Page 134 ECOR HD 16X1 DVR Password renewal: The password will expire after the specified days. When it’s expired, a password renewal reminder will show up as below for you to change your password. If you don’t want to renew the password periodically, just enter “0”. Previous: Click to return to the previous page.
- Page 135 ECOR HD 16X1 DVR User Name: Click to bring up the keyboard and input the desired user name. User Group: Select a user group (access level). Status: Select to enable or disable the user account. Password: Input the password. Confirm: Enter the same password again to confirm. Camera Access: Click to bring up a new setting page as below, and check the boxes to enable the live, playback or PTZ functions of the cameras for local or remote access.
-
Page 136: I/O Control
Type: Select Control or Text Insert. PTZ Protocol: Select PTZ protocol, choose from the following protocols: Transparent, Pelco_D, Pelco_P, Everfocus or Samsung. (Note: All cameras on the RS-485 bus must use the same protocol) 485 ID: This is the ID used by the EKB500 to send commands to the NVR. On an RS-485 connection, every device (PTZ, NVR and controller) must be assigned an unique ID number between 0 and 127. - Page 137 ECOR HD 16X1 DVR Stop Bit: This field is to set the stop bit for the RS232 connection. There are two different stop bits, 1 or 2. Parity: This field is to select the parity level at which you will be connected. You can choose between None, Odd, or Even parity levels.
-
Page 138: Ekb200 Setting
ECOR HD 16X1 DVR 6.8.6 EKB200 Setting You can connect an EKB200, which is EverFocus’ USB keyboard, to the USB port on the NVR to control the Iris, focus or the pre-configured PTZ control functions of the connected cameras. For details on how to configure the PTZ control functions, including Preset Position, Auto Pan, Tour and Pattern, please refer to 6.1 Camera. - Page 139 ECOR HD 16X1 DVR 【Key No】 The control key number on the keyboard. 【Action】 Select an item from the drop-down list to define the function for each key on the keyboard. Set Preset: You can use the joystick on the keyboard to select a position and then press this ...
-
Page 140: Miscellaneous
ECOR HD 16X1 DVR 6.8.7 Miscellaneous You can upgrade the latest firmware, restore the factory default settings to the NVR, upload / save the NVR configuration settings from / to the USB or change the language in this setup menu. Firmware Current Firmware Version: Shows the current firmware version of the NVR. - Page 141 ECOR HD 16X1 DVR Allowed Remote Reboot: Check the box to enable restarting the NVR via the Network.
-
Page 142: System Information
ECOR HD 16X1 DVR 6.9 System Information You can see the NVR information and Log data in this menu. Or export the log data to the USB storage device. 6.9.1 Configuration In the System Menu, you can only see the information of the NVR, Network or HDD. No configuration can be done in this menu. - Page 143 MAC address. NVR Name: Displays the DDNS name if configured. Network ID: The ID number for EverFocus’ CMS as set up in the Alarm Server menu. 【Status】 Disk: Displays the status of the internal hard disks. Normal hard disk operation is indicated by “OK”.
-
Page 144: Log
ECOR HD 16X1 DVR 6.9.2 Log You can choose, display or export log data using this menu. Start Date / End Date: Click to bring up the on-screen keyboard to set up the start / end date. Start Time / End Time: Click to bring up the on-screen clock to set up the start / end time. Log Type: Select the desired log types. -
Page 145: Remote Access To The Nvr
ECOR HD 16X1 DVR Chapter 7. Remote Access to the NVR You can access and control the NVR remotely by using the web browser. 7.1 Accessing the NVR Follow the steps below to access the NVR from a computer. Open an Internet Explorer window and in the address bar type the IP address. Local connection: http:// (IP address from the NVR’s Network Menu): IP port used e.g. - Page 146 ECOR HD 16X1 DVR If you log in for the first time, follow the instruction steps on the interface to update the latest Plugin version (ePlayer). After reloading the webpage, the login window pops up again. Type the user ID and password to log in again. By default, the user ID is admin and the password is 11111111.
- Page 147 ECOR HD 16X1 DVR If you encounter the following problem or still can’t access the remote Web interface, please see below: If the Error window appears, please be sure to close ALL the Web browser windows first then click Retry. When the Completing the ePlayer Setup Wizard window shows up, click Finish.
- Page 148 ECOR HD 16X1 DVR You may need to turn User Account Control off if you still can’t see the Remote Live View. On the computer, click Start > Control Panel > System and Security > Action Center (click Change User Account Control Settings), the User Account Control Settings window appears. Adjust the slide bar to Never Notify and then click OK.
-
Page 149: Remote Live View
ECOR HD 16X1 DVR 7.2 Remote Live View When you access the NVR using web browser, the remote live view home page will display as below: Live View:... - Page 150 ECOR HD 16X1 DVR No. Name Description Menu Bar For configuring the NVR. Layout Click a desired layout. Sub / Main Click to switch between the Main stream and Sub stream. Click the Speaker button to transfer audio to the client side from NVR if there is a speaker on the PC and a microphone and preamp attached to the NVR, and audio recording is enabled on the NVR.
-
Page 151: Menu Bar
ECOR HD 16X1 DVR Menu Bar: No. Name Description Live View Click to display the live view window. Camera Click to configure the camera settings. Please refer to 7.3 Camera. Record & Click to configure the record settings. Please refer to 6.2 Record & Playback Playback. -
Page 152: Camera
ECOR HD 16X1 DVR 7.3 Camera Users can view the camera status, automatically search and add the cameras in the Auto Search setting page, or add the cameras manually in the Add Camera Manually and Advanced Setting pages. In the Camera Setting page, users are able to configure the detailed settings and PTZ settings of the cameras. -
Page 153: Auto Search
ECOR HD 16X1 DVR 7.3.2 Auto Search The function allows users to automatically search and add cameras in the same network. To search cameras: 1. Click the Search button. 2. The system will list all the currently available cameras under the Camera List. To add cameras: 1. -
Page 154: Basic
ECOR HD 16X1 DVR 7.3.3 Basic You can also add the IP camera manually by typing its IP Address, Port, ID, Password and other settings. Address: Type the IP address of the camera. Port: The default port is 80. ID: Enter the account username of the camera. Password: Enter the password of the camera. - Page 155 ECOR HD 16X1 DVR To successfully add the IP camera, you need to click the Save button in this page. You can also configure the detailed settings as follows. 【 Main / Sub Stream 】 You can separately configure the settings for the Main and Sub Streams. Camera Parameter Camera Channel: Show the camera channel number.
-
Page 156: Advanced
ECOR HD 16X1 DVR 7.3.4 Advanced The Advanced setting is for users to view, add, delete or modify the cameras in the Camera List. Add: Click the button to add camera manually. To add the cameras, please see 7.3.3 Basic. Delete: Click button to delete the camera. -
Page 157: Camera Setting
ECOR HD 16X1 DVR 7.3.5 Camera Setting User can configure the detailed camera settings, PTZ and tracking functions in this setting page. 7.3.5.1 Camera Connected Channel: Check the box to enable the connection between the camera and the NVR. If the box is unchecked, the system will disconnect the camera and stop recording. Mask Channel: Check the box to mask the camera’s live view on the screen, but the recording function is still on. - Page 158 ECOR HD 16X1 DVR *Hallway Mode (9:16): Click the Rotate button to rotate the live image. This function allows users to monitor vertically-oriented areas such as hallway, corridors and aisles. It’s recommended to select a 16:9 View Size (e.g. 1920x1080 / 1024x768) to achieve the best display effect.
-
Page 159: Ptz
ECOR HD 16X1 DVR 7.3.5.2 PTZ You can set up the Preset, Auto Pan, Tracking, Pattern and Tour settings in this page. 【 Camera (1~8) 】 : Shows the PTZ camera live view. You need to select the PTZ camera from the Channel Number drop-down list in the Camera setting page (see 7.3.5.1 Camera) before configuring the PTZ settings. - Page 160 ECOR HD 16X1 DVR Preset: Click the Preset button to set up the Preset Position or the Auto Pan function. Preset: You can configure up to 192 preset positions in this field. To set up a Preset Positions: 1. Adjust the camera view to a desired position using the direction button. You can select the pan / tilt speed from the Speed drop-down list for controlling the direction buttons.
- Page 161 ECOR HD 16X1 DVR Auto Pan: You can only configure one Auto Pan sequence. The configured Auto Pan (A to B Pan) sequence will always be numbered as “1”. The number “2” will always be an endless pan around the given (not preconfigured) X/Y tilt axis. Endless Mode: The Endless Mode is always numbered as “99”...
- Page 162 ECOR HD 16X1 DVR Tracking : Click the Tracking button to set up the tracking function which is functional only when the selected PTZ camera is equipped with the tracking function. To set up the Auto Tracking function: Auto Tracking Start Point: Check the box to enable a camera position to which the camera will return to after a tracking operation.
- Page 163 ECOR HD 16X1 DVR Note: Please note that if enabling the Pan/Tilt Limits function, the position of the Start Point should be within the range of the Pan/Tilt Limits, or there will be a pop-up message showing “Setting error: Start Point is not inside Pan/Tilt Limits”. Zoom control on tracking: ...
- Page 164 ECOR HD 16X1 DVR Pattern Tour : Pattern: You are given 90 seconds to move the camera (via the PTZ buttons) to different positions (and different zoom / focus / Iris positions). The camera then saves that sequence under the Pattern No.
- Page 165 ECOR HD 16X1 DVR Tour: You can combine up to 16 preconfigured camera positions and patterns into one long sequence. Up to 16 Tour sequences can be set up. To set up a Pattern Sequence: 9. Select a number from the Tour No drop-down list. 10.
-
Page 166: Ptz
You can use the PTZ Control Panel to control the connected PTZ cameras, to set Preset setting and to activate the configured PTZ settings. You can also connect to an EverFocus’ EKB200 keyboard to a computer to control the PTZ camera. - Page 167 10. To operate the Auto Pan function, click the Auto Pan button. 11. To operate the Pattern function, click the Pattern button. The Pattern is the “0” Tour in EverFocus and Pelco PTZ cameras. 12. To operate the Tour function: a.
-
Page 168: Specifications
ECOR HD 16X1 DVR Chapter Specifications ENVR8304X 04CH: Model Name ENVR8304X 04CH System Operating System Embedded Linux Number of Channels 4 CH 2 GB Dual Streams DVD Build-in Burner System Control Mouse, IR Remote Control, Keyboard OSD Menu Video Compression Format H.264... - Page 169 Ethernet 1 x RJ-45 VGA / HDMI 1 / 1 RS-485 3-pin terminal connector General PTZ Protocols Supported EverFocus, Pelco D, Pelco P, Samsung, Transparent Power Input 12 VDC / 3A Power Consumption 36W max. Operating Temperature 0°C~40°C / 32°F~104°F...
- Page 170 ECOR HD 16X1 DVR ENVR8304X 08CH / 16CH: Model Name ENVR8304X 08CH ENVR8304X 16CH System Operating System Embedded Linux Number of Channels 8 CH 16CH 2 GB Dual Streams DVD Build-in Burner System Control Mouse, Web UI, IR Remote Control OSD Menu Video Compression Format...
- Page 171 Ethernet 2 x RJ-45 VGA / HDMI 1 / 1 RS-485 3-pin terminal connector General PTZ Protocols Supported EverFocus, Pelco D, Pelco P, Samsung, Transparent Power Input 100-240 VAC~ Power Consumption 150W max. Operating Temperature 0°C~40°C / 32°F~104°F Operating Humidity...
-
Page 172: Appendix A: Network Overview
ECOR HD 16X1 DVR Appendix Appendix A: Network Overview This chapter will give you a basic instruction on how to set up the NVR for network connection. It is highly recommended that you have a working knowledge of what a network is and how it works. This will be helpful in completing the networking process. -
Page 173: Virtual Ports
ECOR HD 16X1 DVR Gateway Address Addressees are either local or remote. A gateway address is composed of four octets separated by decimal points. The gateway address is used to uniquely identify the device on the LAN that has access to the communications links connecting to other LANs, WANs and/or the Internet (access to the ‘remote’... - Page 174 This makes it much simpler to host a website, email server, or other type of server connection. EverFocus suggests using a static IP address. If this is not available, you will need to use a dynamic IP address. This is explained below.
- Page 175 ECOR HD 16X1 DVR Pre-Installation EverFocus’ NVR can operate using one of three types of networking connections. Simple One to One Connection: A simple one to one connection is the simplest type of network connection. It uses a cross-over cable to make a direct connection from one computer to another (or in this case a computer to a NVR).
-
Page 176: Appendix B: Linksys & D-Link Port Forwarding
ECOR HD 16X1 DVR Appendix Appendix B: Linksys & D-Link Port Forwarding Typical Linksys Port Forwarding This section will cover a few simple configurations for the Linksys router. This chapter is only to offer some help to the installer and end user. Please understand we DO NOT support this product and will not give tech support on it. - Page 177 ECOR HD 16X1 DVR Click on the “Applications & Gaming” tab. Applications and Gaming allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Some Internet applications may not require any forwarding) To forward a port, enter the information on each line for the criteria required.
- Page 178 ECOR HD 16X1 DVR Typical D-Link Port Forwarding This section will cover a few simple configurations for the D-Link router. This chapter is only to offer some help to the installer and end user. Please understand we DO NOT support this product and will not give tech support on it.
- Page 179 ECOR HD 16X1 DVR Click Virtual Servers on the left to bring up the following screen. Virtual Servers allows users who are connecting remotely to access services on the router’s Local Network. The functions of each field are described below. Virtual Server - Select Enabled or Disabled Name - Enter the name referencing the virtual service Private IP - The IP address of the device running the local services.
-
Page 180: Appendix C: Ir Remote Control
When there is more than one NVR installed in the same environment, you need to select a correct NVR ID, preventing the NVR from responding to commands from the Remote Control. ENVR8304X 04CH: To select the NVR ID, Aim at the IR receiver of your NVR. - Page 181 ECOR HD 16X1 DVR ENVR8304X 08CH / 16CH: To select the NVR ID, Aim at the IR receiver of your NVR. Select the NVR ID number by pressing the NVR Device ID Button first. The NVR ID number here must correspond to the “IR Remote ID” set up in the “I/O Control Menu”, and remember to click Save on that setting page (refer to 6.8.5 I/O Control).
- Page 182 TEL: +91 22 6726 4500 FAX: +91 22 6726 4518 www.everfocus.in sales@everfocus.in Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
