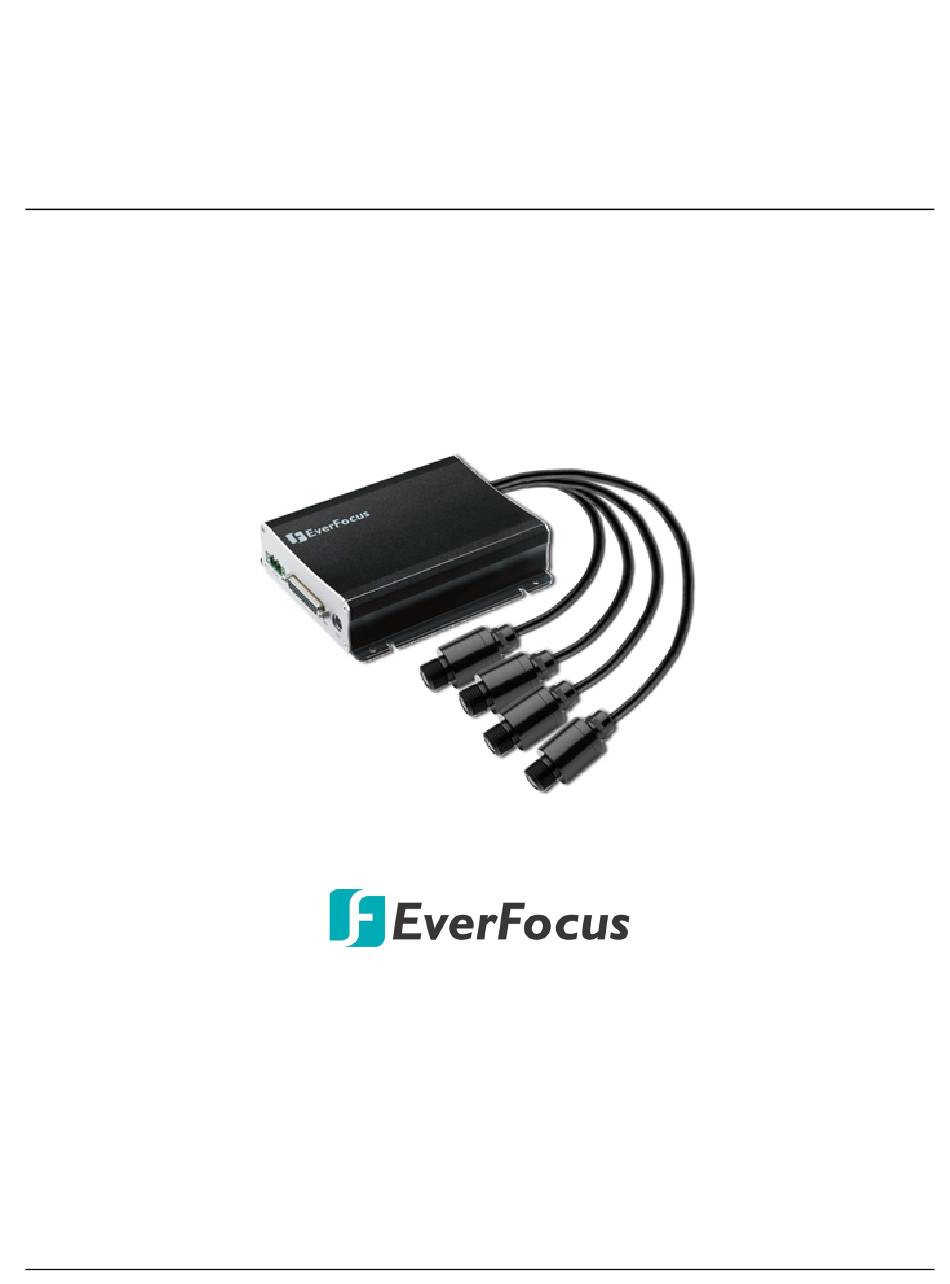

MoniVue System
ESN41 / ESN41-E Ultra Compact 4CH H.264 Video Recorder
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: March, 2017
All the images including product pictures or screen shots in this document are for example only. The
images may vary depending on the product and software version. Information contained in this
document is subject to change without notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EverFocus MoniVue System ESN41
Summary of Contents for EverFocus MoniVue System ESN41
- Page 1 MoniVue System ESN41 / ESN41-E Ultra Compact 4CH H.264 Video Recorder Quick Installation Guide Copyright © EverFocus Electronics Corp. Release Date: March, 2017 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version.
- Page 2 MoniVue System – Video Recorder Introduction The MoniVue System, bundled with one compact 4CH video recorder and four 1080p FHD cameras, is ideal for the surveillance environment where areas are closely situated. As MoniVue System is bundled with a video recorder and four-camera, we will introduce the two products separately.
-
Page 3: Packing List
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 4: Optional Accessories
Camera Extension Cable MEC-009 MoniVue System Extension Cable – 9m PoE Switch EverFocus 5 / 8 / 16 / 24 Ports PoE Switch 5 Ports: ES0501-40 8 Ports: ES0812-31 / ES0802-41 16 Ports: ES1625-31 / ES1645-51 24 Ports: ES2426-31 / ES2446-51 / ES2448-62... -
Page 5: Front Panel
MoniVue System – Video Recorder Front Panel No. Name Description IR Receiver Receives data from the infrared remote control. Power: Lights red continuously when power is supplied. SD: Lights green continuously when SD card is reading or writing data. System LEDs Error: Lights yellow continuously when system error occurs, including System Clock Error, SD Failed, SD Off and Network Loss. -
Page 6: Rear Panel
MoniVue System – Video Recorder Rear Panel No. Name Description Connects to power source using the supplied Power Adaptor. For DC Power Input details, please refer to 2.3.1 Power Input. This function is only available for ESN41 FHD. Connects to a RS-485 RS-485 Port device such as PTZ camera. - Page 7 MoniVue System – Video Recorder Installation Mounting You can mount the video recorder on a Flat Surface or on a DIN Rail. Mounting on Flat Surface To mount the video recorder on a flat surface: 1. Drill four holes on the mounting surface according to the hole-position on the video recorder.
-
Page 8: Sd Card Installation
MoniVue System – Video Recorder 2. Hitch the hook of the DIN Rail Mounting Clips on the upper edge of DIN rail and then push the video recorder to the DIN rail. You will hear a clip sound, which means it has been locked to the DIN Rail tightly. - Page 9 MoniVue System – Video Recorder Tested SD Cards: The video recorder support SDHC/SDXC card up to 128 GB. The following brands of the SD cards have been tested by EverFocus. Brand SanDisk Teamgroup SanDisk SanDisk Transcend Form Factor SDXC SDXC...
-
Page 10: Basic Connection
MoniVue System – Video Recorder 2.3 Basic Connection After installing the video recorder, you can start connecting the external devices to the system. The instructions below describe the basic connection to the system. The image below uses ESN41 FHD as an example. SD Card D-Sub Cable Power Adaptor... -
Page 11: Power Input
MoniVue System – Video Recorder 2.3.1 Power Input You can connect the video recorder to a power source through PoE (ESN41 FHD only) or power port. PoE: Connect the video recorder to a PoE switch. Note that only ESN41 FHD supports PoE function. -
Page 12: Monitor Connection
MoniVue System – Video Recorder 2.3.3 Monitor Connection The video recorder has one Main Monitor port (VGA) and 1 Call Monitor port (BNC). You can connect the monitors to the system through VGA and BNC ports. The Main and Call Monitor ports can be used simultaneously. -
Page 13: Accessing The System
You can look up the IP address and access the Web interface of the system using the IP Utility (IPU) program, which is included in the software CD. The IP Utility can also be downloaded from EverFocus’ Website: http://www.everfocus.com.tw Please connect the system on the same LAN of your computer. - Page 14 MoniVue System – Video Recorder b. Type the Username and Password. Click the OK button, the status of the selected camera will display Login. Note: 1. The default user ID is admin and the default password is 11111111. 2. If you select more than one device that have the same user ID / password, you will be able to log in several devices at once.
- Page 15 MoniVue System – Video Recorder 5. If you log in for the first time, follow the instruction steps on the interface to update the latest Plugin version (ePlayer). After reloading the webpage, the login window pops up again. Type the user ID and password to log in again. By default, the user ID is admin and the password is 11111111.
- Page 16 MoniVue System – Video Recorder If you encounter the following problem or still can’t access the remote Web interface, please see below: If the Error window appears, please be sure to close ALL the Web browser windows first and then click Retry. When the Completing the ePlayer Setup Wizard window shows up, click Finish.
- Page 17 MoniVue System – Video Recorder If your PC or laptop is running with Windows, it’s required to run the browser as administrator when first entering the remote web page of the device. Go to C:\Program Files (x86)\Internet Explorer, right-click the browser and then click Run as administrator. ...
-
Page 18: Specifications
10 / 100 / 1000 Mbps (RJ45) Web Browser IE11 and later, Firefox 50 and earlier, Chrome 44 and earlier, EF browser Other Remote EverFocus’ Xfleet fleet management server system. Application 2. EverFocus’ mobile app: MobileFocus (iOS and Android); MobileFocusHD (iPad). - Page 19 FAX: +81 3 5625 8189 sales@everfocus.com www.everfocus.co.jp info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
