3. Slide and remove the SUB_C Board and the SUB_D Board in the
direction of the arrows.
Notches and
Guide Pins

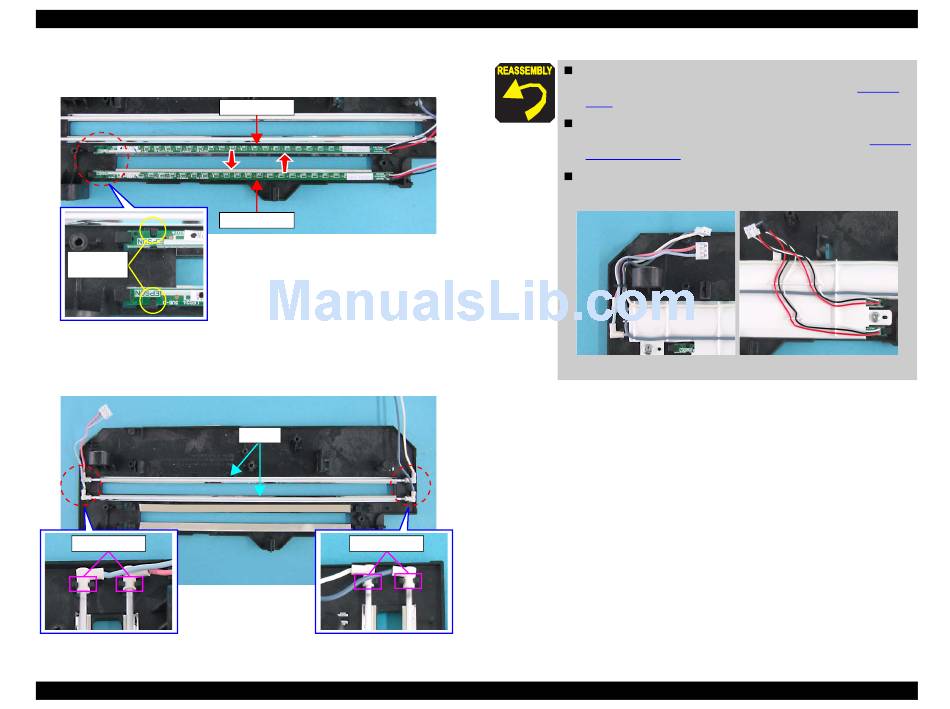

Figure 4-50. Removing the SUB_C Board and SUB_D Board
4. Release the two Lamps from the retaining clips and remove the two
Lamps at the same time.
Retaining clips
Figure 4-51. Removing the Lamps
Disassembly / Assembly
SUB_C Board
SUB_D Board
Lamps
Retaining clips
When installing the SUB_C Board and SUB_D Board,
match the notches and guide pins as shown in
4-50.
When installing the TPU Lamp Cover, match the
positioning holes and the guide pins as shown in
4-49 on page
Route the Lamp, SUB_C and SUB_D Board cables as
shown in the figure below.
Disassembly Procedure
59.
Figure 4-52. Routing the Connector Cables
Revision A
Figure
Figure
