EPSON Perfection V700 Photo
Connect the Carriage FFC to the Main Board using the
following procedure.
1. Pass the Carriage FFC through the Ferrite Core.
2. Connect the Carriage FFC to the Main Board.
3. Aligning with the marked lines, attach the Ferrite Core to
the Lower Main Board Cover with a piece of two-sided tape.
When installing the Main Board and Harness C Cover,
match the positioning holes and guide pins as shown in
Figure 4-20 on page
Follow the procedure given below to install the Upper
Main Board Cover.
1. Put the three tabs of the Lower Main Board Cover into the
holes on the Upper Main Board Cover as shown below.

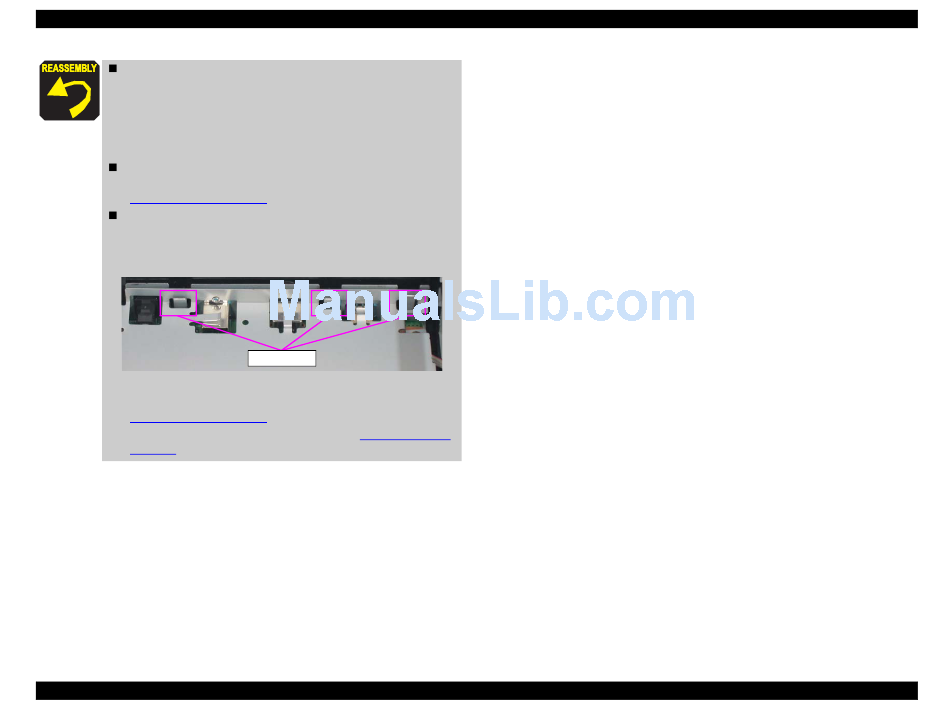

Figure 4-22. Installing the Main Board Cover
2. Match the positioning holes and guide pins as shown in
Figure 4-19 on page
3. Tighten the screws in the order given in
page 45.
Disassembly / Assembly
46.
Tab and Hole
45.
Figure 4-19 on
Disassembly Procedure
Revision A
47
