EPSON Perfection V700 Photo

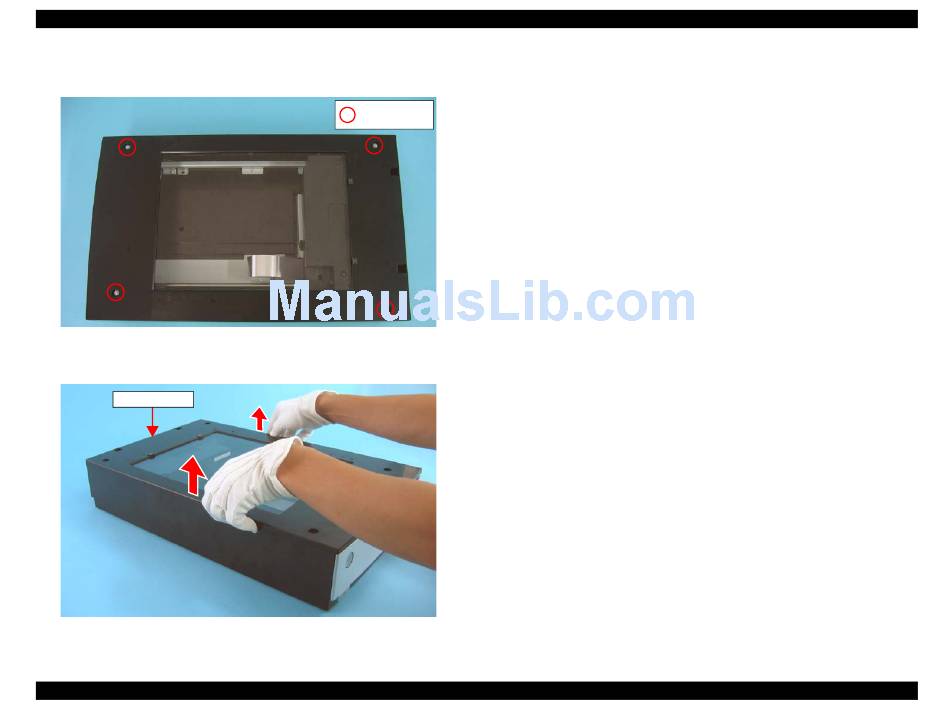

14. Remove the four C.P.F.S. M3 x 10 screws that secure the Upper
Housing.
Figure 4-9. Removing the Upper Housing (1)
15. Lift the Upper Housing slowly and remove it.
Upper Housing
Figure 4-10. Removing the Upper Housing (2)
Disassembly / Assembly
C.P.F.S. M3x10
(9±1 kgf.cm)
Disassembly Procedure
Revision A
42
