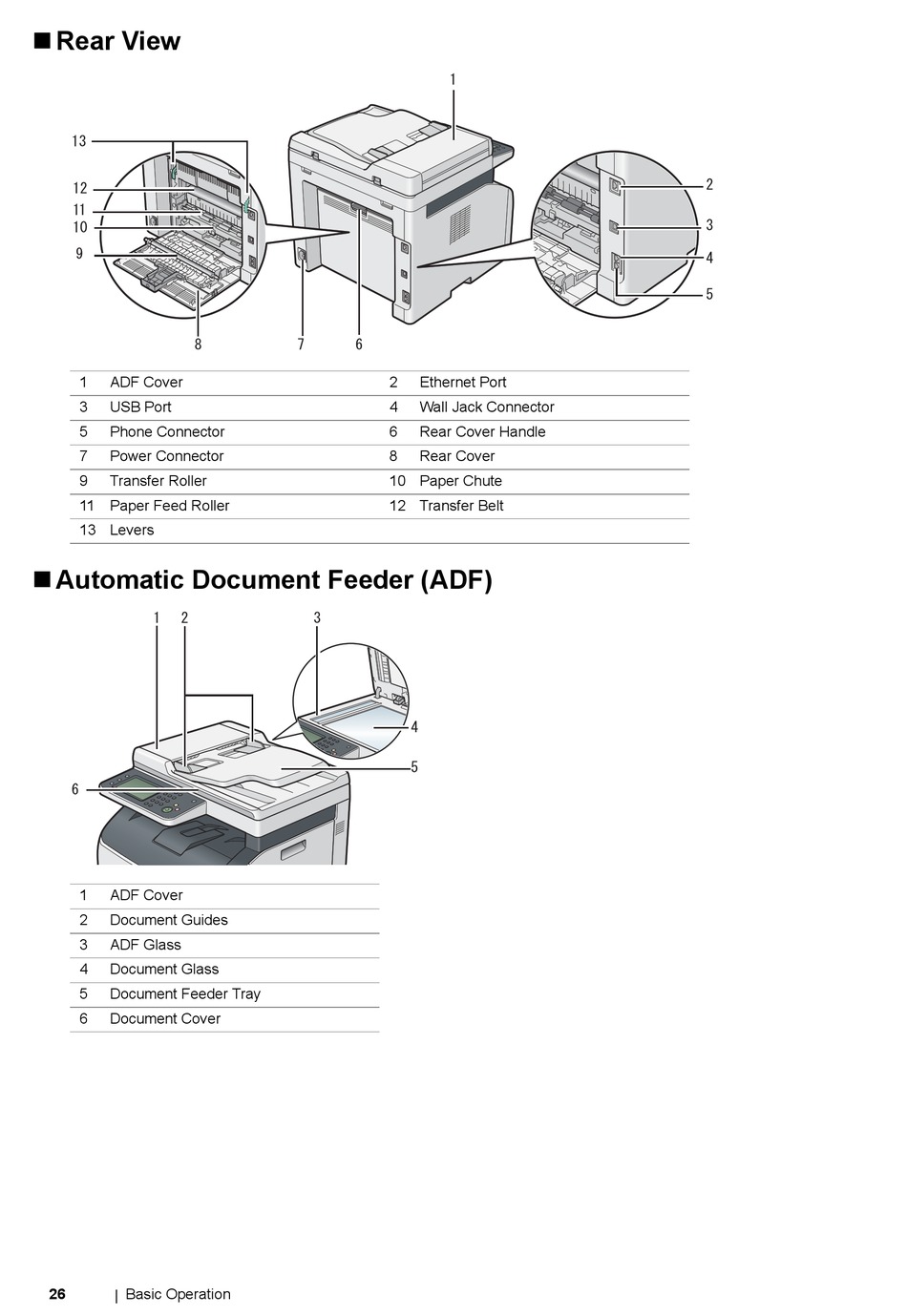

 Rear View
1 ADF Cover
3 USB Port
5 Phone Connector
7 Power Connector
9 Transfer Roller
11 Paper Feed Roller
13 Levers
 Automatic Document Feeder (ADF)
1 ADF Cover
2 Document Guides
3 ADF Glass
4 Document Glass
5 Document Feeder Tray
6 Document Cover
