12

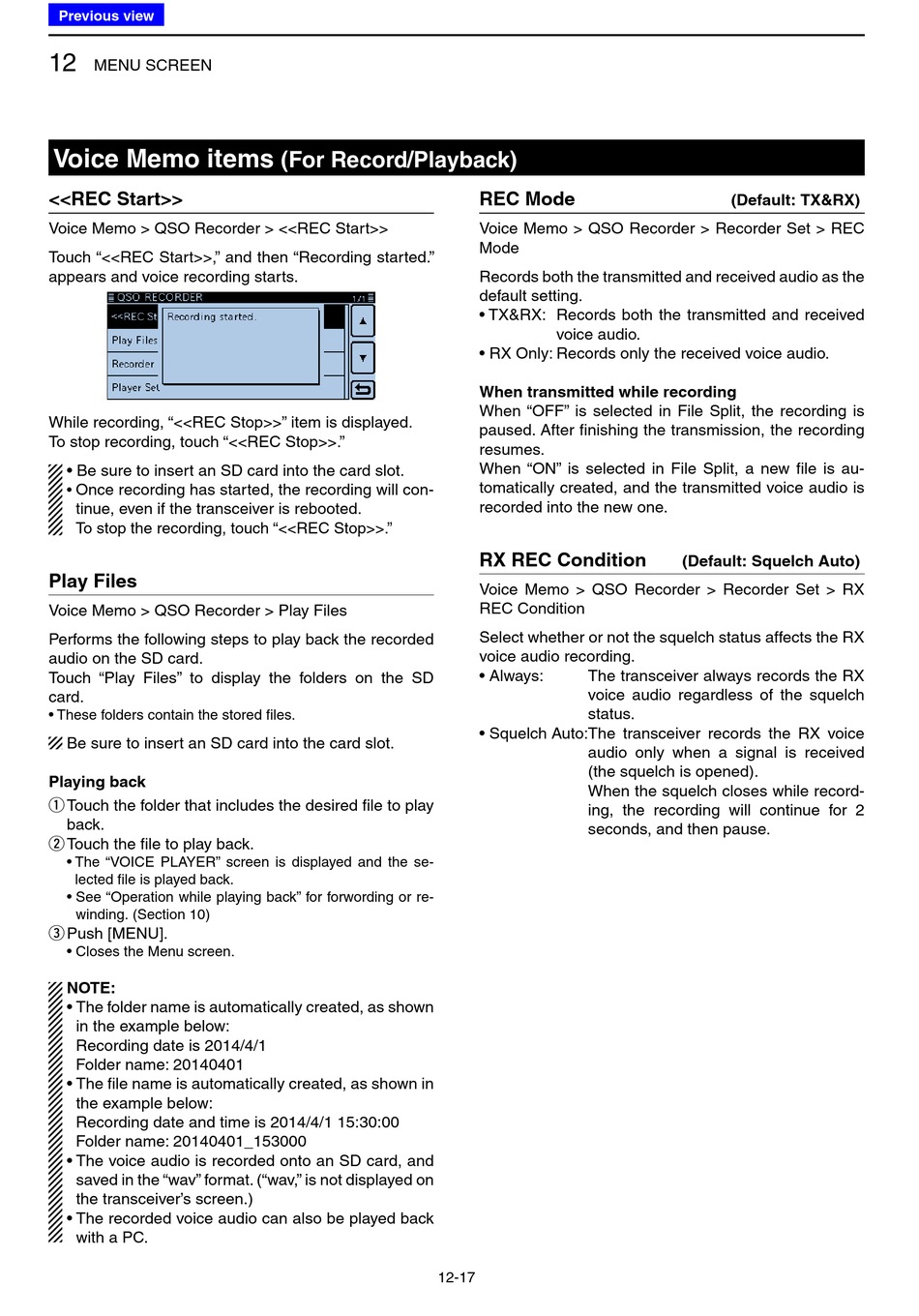

MENU SCREEN
Voice Memo items
<<REC Start>>
Voice Memo > QSO Recorder > <<REC Start>>
Touch "<<REC Start>>," and then "Recording started."
appears and voice recording starts.
While recording, "<<REC Stop>>" item is displayed.
To stop recording, touch "<<REC Stop>>."
• Be sure to insert an SD card into the card slot.
Once recording has started, the recording will con-
•
tinue, even if the transceiver is rebooted.
To stop the recording, touch "<<REC Stop>>."

Play Files

Voice Memo > QSO Recorder > Play Files
Performs the following steps to play back the recorded
audio on the SD card.
Touch "Play Files" to display the folders on the SD
card.
• These folders contain the stored files.
Be sure to insert an SD card into the card slot.
Playing back
Touch the folder that includes the desired file to play
q
back.
Touch the file to play back.
w
• The "VOICE PLAYER" screen is displayed and the se-
lected file is played back.
• See "Operation while playing back" for forwording or re-
winding. (Section 10)
Push [MENU].
e
• Closes the Menu screen.
NOTE:
• The folder name is automatically created, as shown
in the example below:
Recording date is 2014/4/1
Folder name: 20140401
• The file name is automatically created, as shown in
the example below:
Recording date and time is 2014/4/1 15:30:00
Folder name: 20140401_153000
• The voice audio is recorded onto an SD card, and
saved in the "wav" format. ("wav," is not displayed on
the transceiver's screen.)
• The recorded voice audio can also be played back
with a PC.
(For Record/Playback)
12-17
REC Mode
Voice Memo > QSO Recorder > Recorder Set > REC
Mode
Records both the transmitted and received audio as the
default setting.
• TX&RX: Records both the transmitted and received
voice audio.
• RX Only: Records only the received voice audio.
When transmitted while recording
When "OFF" is selected in File Split, the recording is
paused. After finishing the transmission, the recording
resumes.
When "ON" is selected in File Split, a new file is au-
tomatically created, and the transmitted voice audio is
recorded into the new one.
RX REC Condition
Voice Memo > QSO Recorder > Recorder Set > RX
REC Condition
Select whether or not the squelch status affects the RX
voice audio recording.
• Always: The transceiver always records the RX
voice audio regardless of the squelch
status.
• Squelch Auto:The transceiver records the RX voice
audio only when a signal is received
(the squelch is opened).
When the squelch closes while record-
ing, the recording will continue for 2
seconds, and then pause.
(Default: TX&RX)
(Default: Squelch Auto)
