13
OTHER FUNCTIONS
Cloning function (Continued)

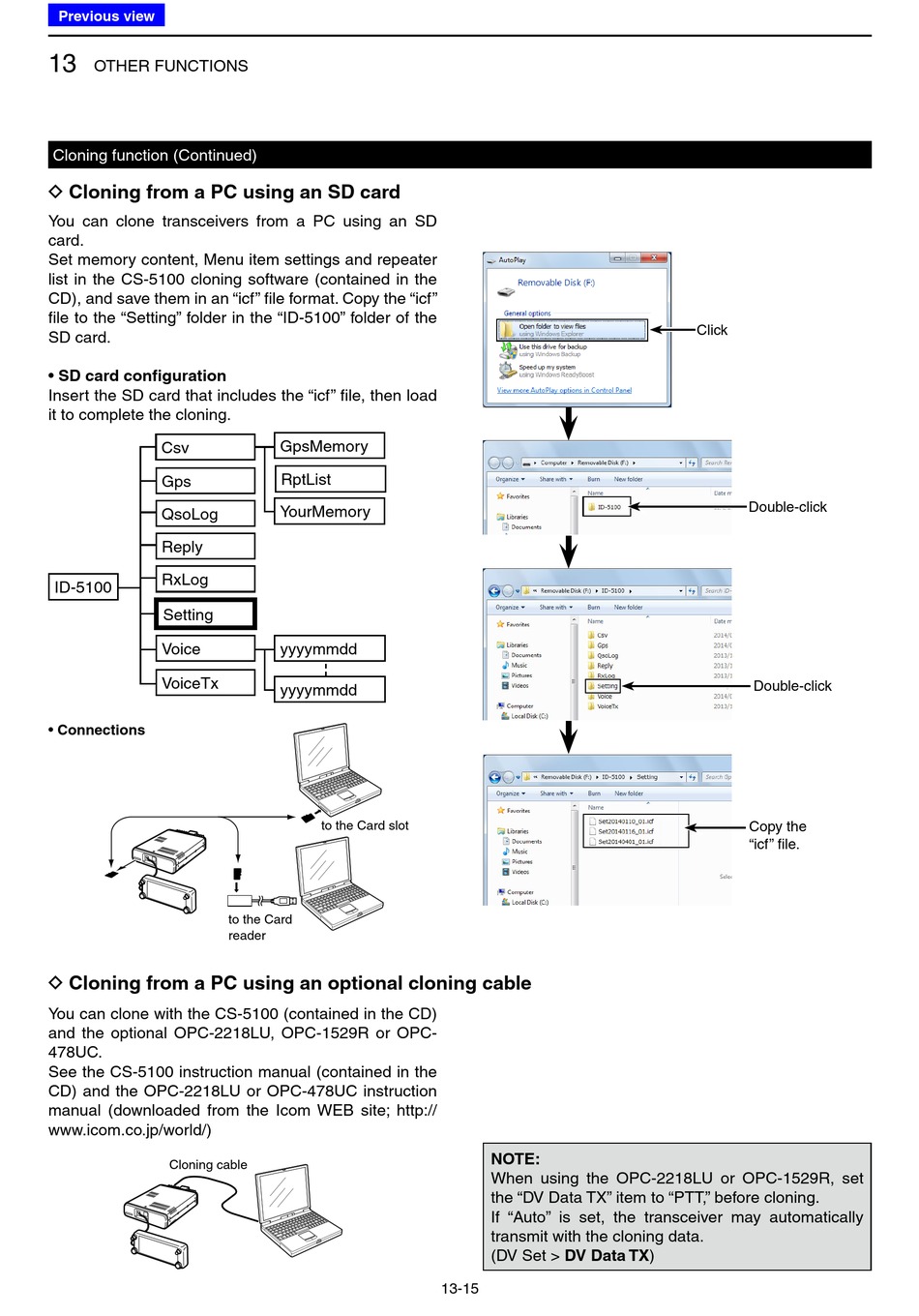

D Cloning from a PC using an SD card

You can clone transceivers from a PC using an SD
card.
Set memory content, Menu item settings and repeater
list in the CS-5100 cloning software (contained in the
CD), and save them in an "icf" file format. Copy the "icf"
file to the "Setting" folder in the "ID-5100" folder of the
SD card.
• SD card configuration
Insert the SD card that includes the "icf" file, then load
it to complete the cloning.
Csv
Gps
QsoLog
Reply
RxLog
ID-5100
Setting
Voice
VoiceTx
• Connections

D Cloning from a PC using an optional cloning cable

Cloning cable
You can clone with the CS-5100 (contained in the CD)
and the optional OPC-2218LU, OPC-1529R or OPC-
478UC.
See the CS-5100 instruction manual (contained in the
CD) and the OPC-2218LU or OPC-478UC instruction
manual (downloaded from the Icom WEB site; http://
www.icom.co.jp/world/)
Cloning cable
GpsMemory
RptList
YourMemory
yyyymmdd
yyyymmdd
to the Card slot
to the Card
reader
to the Card slot
to the Card
reader
NOTE:
When using the OPC-2218LU or OPC-1529R, set
the "DV Data TX" item to "PTT," before cloning.
If "Auto" is set, the transceiver may automatically
transmit with the cloning data.
(DV Set > DV Data TX)
13-15
Click
Double-click
Double-click
Copy the
"icf" file.
