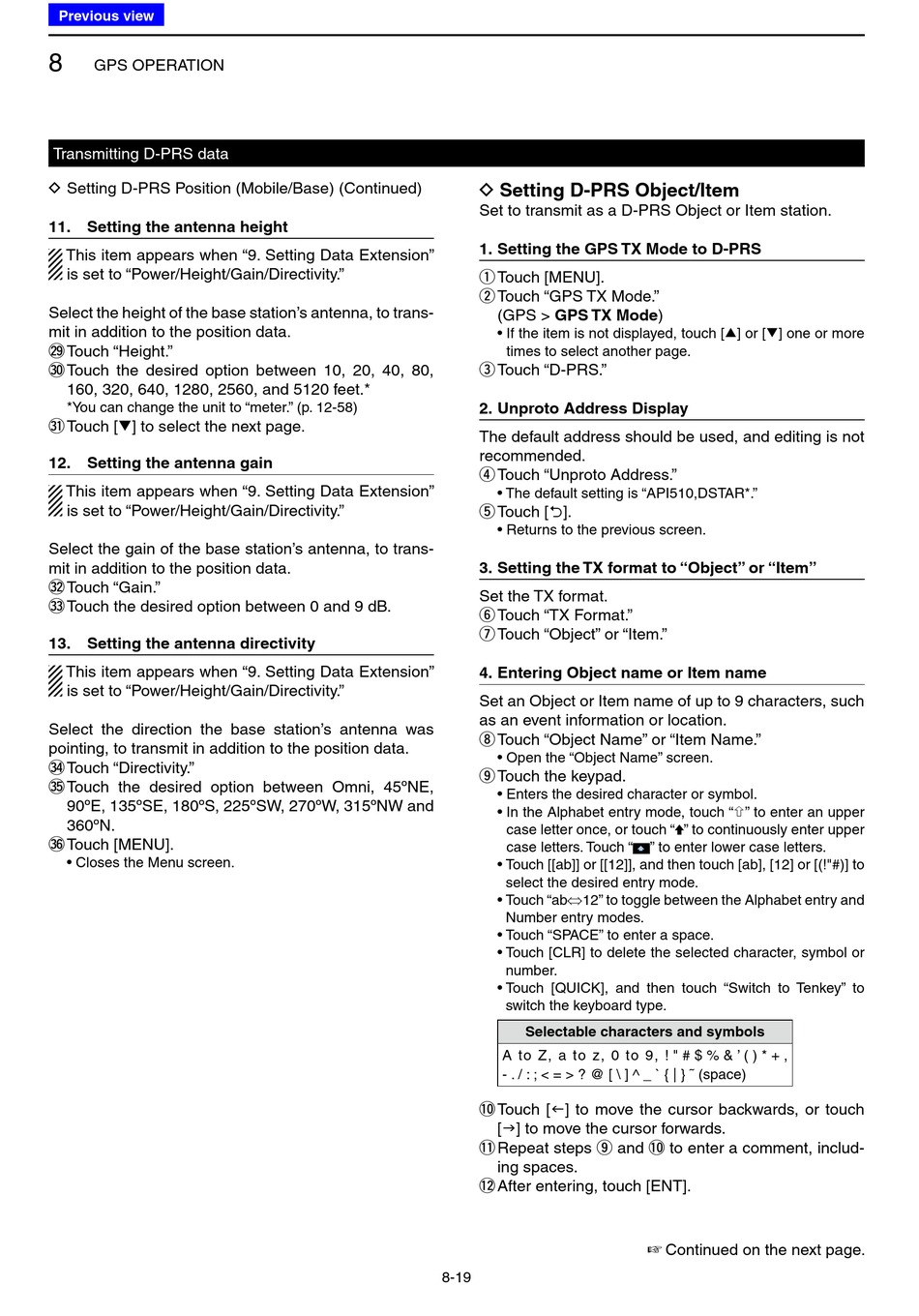

GPS OPERATION
Transmitting D-PRS data
D
Setting D-PRS Position (Mobile/Base) (Continued)
11. Setting the antenna height
This item appears when "9. Setting Data Extension"
is set to "Power/Height/Gain/Directivity."
Select the height of the base station's antenna, to trans-
mit in addition to the position data.
@9 Touch "Height."
#0 Touch the desired option between 10, 20, 40, 80,
160, 320, 640, 1280, 2560, and 5120 feet.*
* You can change the unit to "meter." (p. 12-58)
#1 Touch [√] to select the next page.
12. Setting the antenna gain
This item appears when "9. Setting Data Extension"
is set to "Power/Height/Gain/Directivity."
Select the gain of the base station's antenna, to trans-
mit in addition to the position data.
#2 Touch "Gain."
#3 Touch the desired option between 0 and 9 dB.
13. Setting the antenna directivity
This item appears when "9. Setting Data Extension"
is set to "Power/Height/Gain/Directivity."
Select the direction the base station's antenna was
pointing, to transmit in addition to the position data.
#4 Touch "Directivity."
#5 Touch the desired option between Omni, 45ºNE,
90ºE, 135ºSE, 180ºS, 225ºSW, 270ºW, 315ºNW and
360ºN.
#6 Touch [MENU].
• Closes the Menu screen.

D Setting D-PRS Object/Item

Set to transmit as a D-PRS Object or Item station.
1. Setting the GPS TX Mode to D-PRS
Touch [MENU].
q
Touch "GPS TX Mode."
w
(GPS > GPS TX Mode)
• If the item is not displayed, touch [∫] or [√] one or more
times to select another page.
Touch "D-PRS."
e
2. Unproto Address Display
The default address should be used, and editing is not
recommended.
Touch "Unproto Address."
r
• The default setting is "API510,DSTAR*."
Touch [ ].
t
• Returns to the previous screen.
3. Setting the TX format to "Object" or "Item"
Set the TX format.
Touch "TX Format."
y
Touch "Object" or "Item."
u
4. Entering Object name or Item name
Set an Object or Item name of up to 9 characters, such
as an event information or location.
Touch "Object Name" or "Item Name."
i
• Open the "Object Name" screen.
Touch the keypad.
o
• Enters the desired character or symbol.
• In the Alphabet entry mode, touch "" to enter an upper
case letter once, or touch " " to continuously enter upper
case letters. Touch "
• Touch [[ab]] or [[12]], and then touch [ab], [12] or [(!"#)] to
select the desired entry mode.
• Touch "ab⇔12" to toggle between the Alphabet entry and
Number entry modes.
• Touch "SPACE" to enter a space.
• Touch [CLR] to delete the selected character, symbol or
number.
• Touch [QUICK], and then touch "Switch to Tenkey" to
switch the keyboard type.
Selectable characters and symbols
A to Z, a to z, 0 to 9, ! " # $ % & ' ( ) * + ,
- . / : ; < = > ? @ [ \ ] ^ _ ` { | } ˜ (space)
!0 Touch [] to move the cursor backwards, or touch
[] to move the cursor forwards.
!1 Repeat steps o and !0 to enter a comment, includ-
ing spaces.
!2 After entering, touch [ENT].
8-19
" to enter lower case letters.
Continued on the next page.
☞
