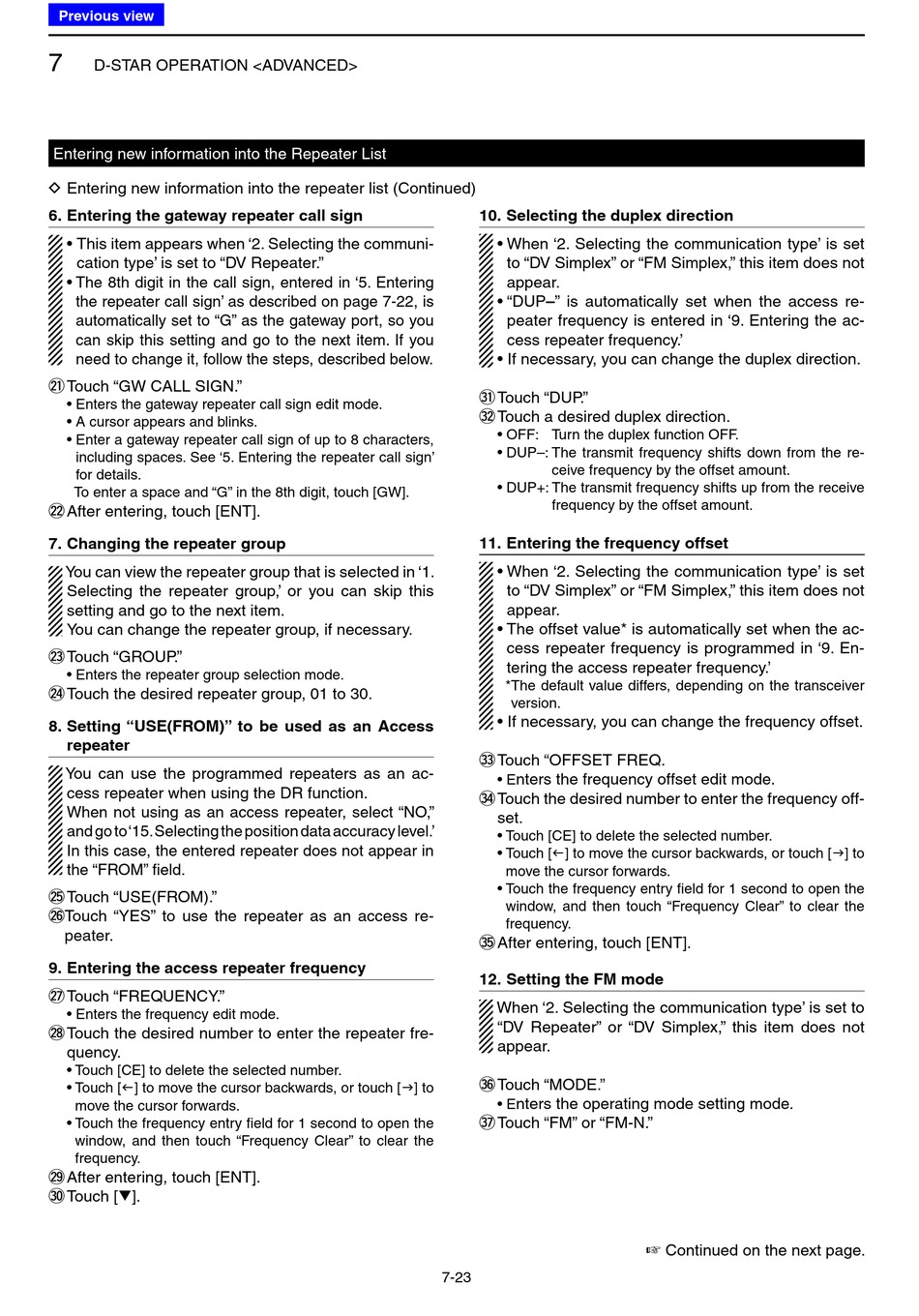

7
D-STAR OPERATION <ADVANCED>
Entering new information into the Repeater List
D
Entering new information into the repeater list (Continued)
6. Entering the gateway repeater call sign
• This item appears when '2. Selecting the communi-
cation type' is set to "DV Repeater."
• The 8th digit in the call sign, entered in '5. Entering
the repeater call sign' as described on page 7-22, is
automatically set to "G" as the gateway port, so you
can skip this setting and go to the next item. If you
need to change it, follow the steps, described below.
@1 Touch "GW CALL SIGN."
• Enters the gateway repeater call sign edit mode.
• A cursor appears and blinks.
• Enter a gateway repeater call sign of up to 8 characters,
including spaces. See '5. Entering the repeater call sign'
for details.
To enter a space and "G" in the 8th digit, touch [GW].
@2 After entering, touch [ENT].
7. Changing the repeater group
You can view the repeater group that is selected in '1.
Selecting the repeater group,' or you can skip this
setting and go to the next item.
You can change the repeater group, if necessary.
@3 Touch "GROUP."
• Enters the repeater group selection mode.
@4 Touch the desired repeater group, 01 to 30.
8. Setting "USE(FROM)" to be used as an Access
repeater
You can use the programmed repeaters as an ac-
cess repeater when using the DR function.
When not using as an access repeater, select "NO,"
and go to '15. Selecting the position data accuracy level.'
In this case, the entered repeater does not appear in
the "FROM" field.
@5 Touch "USE(FROM)."
@6 Touch "YES" to use the repeater as an access re-
peater.
9. Entering the access repeater frequency
@7 Touch "FREQUENCY."
• Enters the frequency edit mode.
@8 Touch the desired number to enter the repeater fre-
quency.
• Touch [CE] to delete the selected number.
• Touch [] to move the cursor backwards, or touch [] to
move the cursor forwards.
• Touch the frequency entry field for 1 second to open the
window, and then touch "Frequency Clear" to clear the
frequency.
@9 After entering, touch [ENT].
#0 Touch [√].
10. Selecting the duplex direction
• When '2. Selecting the communication type' is set
to "DV Simplex" or "FM Simplex," this item does not
appear.
• "DUP–" is automatically set when the access re-
peater frequency is entered in '9. Entering the ac-
cess repeater frequency.'
• If necessary, you can change the duplex direction.
#1 Touch "DUP."
#2 Touch a desired duplex direction.
• OFF: Turn the duplex function OFF.
• DUP–: The transmit frequency shifts down from the re-
ceive frequency by the offset amount.
• DUP+: The transmit frequency shifts up from the receive
frequency by the offset amount.
11. Entering the frequency offset
• When '2. Selecting the communication type' is set
to "DV Simplex" or "FM Simplex," this item does not
appear.
• The offset value* is automatically set when the ac-
cess repeater frequency is programmed in '9. En-
tering the access repeater frequency.'
* The default value differs, depending on the transceiver
version.
• If necessary, you can change the frequency offset.
#3 Touch "OFFSET FREQ.
nters the frequency offset edit mode.
• E
#4 Touch the desired number to enter the frequency off-
set.
• Touch [CE] to delete the selected number.
• Touch [] to move the cursor backwards, or touch [] to
move the cursor forwards.
• Touch the frequency entry field for 1 second to open the
window, and then touch "Frequency Clear" to clear the
frequency.
#5 After entering, touch [ENT].
12. Setting the FM mode
When '2. Selecting the communication type' is set to
"DV Repeater" or "DV Simplex," this item does not
appear.
#6 Touch "MODE."
nters the operating mode setting mode.
• E
#7 Touch "FM" or "FM-N."
7-23
☞ Continued on the next page.
