13

OTHER FUNCTIONS

Remote jack (CI-V) information (Continued)

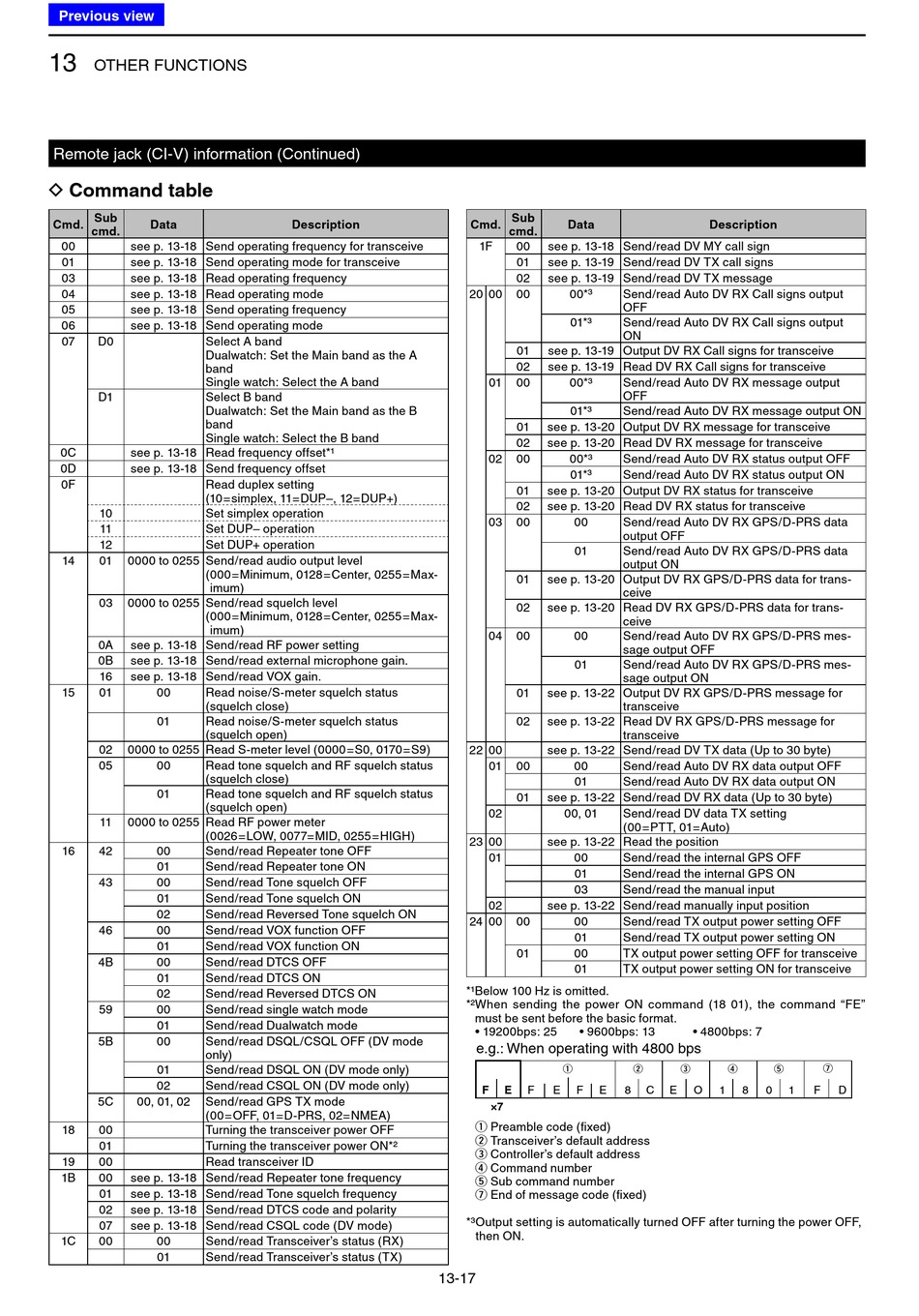

D Command table

Sub
Cmd. Data
cmd.
00 see p. 13-18 Send operating frequency for transceive
01 see p. 13-18 Send operating mode for transceive
03 see p. 13-18 Read operating frequency
04 see p. 13-18 Read operating mode
05 see p. 13-18 Send operating frequency
06 see p. 13-18 Send operating mode
07 D0 Select A band
Dualwatch: Set the Main band as the A
band
Single watch: Select the A band
D1 Select B band
Dualwatch: Set the Main band as the B
band
Single watch: Select the B band
0C see p. 13-18 Read frequency offset*
0D see p. 13-18 Send frequency offset
0F Read duplex setting
(10=simplex, 11=DUP–, 12=DUP+)
10 Set simplex operation
11 Set DUP– operation
12 Set DUP+ operation
14 01 0000 to 0255 Send/read audio output level
( 000=Minimum, 0128=Center, 0255=Max-
imum)
03 0000 to 0255 Send/read squelch level
( 000=Minimum, 0128=Center, 0255=Max-
imum)
0A see p. 13-18 Send/read RF power setting
0B see p. 13-18 Send/read external microphone gain.
16 see p. 13-18 Send/read VOX gain.
15 01 00 Read noise/S-meter squelch status
(squelch close)
01 Read noise/S-meter squelch status
(squelch open)
02 0000 to 0255 Read S-meter level (0000=S0, 0170=S9)
05 00 Read tone squelch and RF squelch status
(squelch close)
01 Read tone squelch and RF squelch status
(squelch open)
11 0000 to 0255 Read RF power meter
(0026=LOW, 0077=MID, 0255=HIGH)
16 42 00 Send/read Repeater tone OFF
01 Send/read Repeater tone ON
43 00 Send/read Tone squelch OFF
01 Send/read Tone squelch ON
02 Send/read Reversed Tone squelch ON
46 00 Send/read VOX function OFF
01 Send/read VOX function ON
4B 00 Send/read DTCS OFF
01 Send/read DTCS ON
02 Send/read Reversed DTCS ON
59 00 Send/read single watch mode
01 Send/read Dualwatch mode
5B 00 Send/read DSQL/CSQL OFF (DV mode
only)
01 Send/read DSQL ON (DV mode only)
02 Send/read CSQL ON (DV mode only)
5C 00, 01, 02 Send/read GPS TX mode
(00=OFF, 01=D-PRS, 02=NMEA)
18 00 Turning the transceiver power OFF
01 Turning the transceiver power ON*
19 00 Read transceiver ID
1B 00 see p. 13-18 Send/read Repeater tone frequency
01 see p. 13-18 Send/read Tone squelch frequency
02 see p. 13-18 Send/read DTCS code and polarity
07 see p. 13-18 Send/read CSQL code (DV mode)
1C 00 00 Send/read Transceiver's status (RX)
01 Send/read Transceiver's status (TX)
Description
1
2
13-17
Sub
Cmd. Data
cmd.
1F 00 see p. 13-18 Send/read DV MY call sign
01 see p. 13-19 Send/read DV TX call signs
02 see p. 13-19 Send/read DV TX message
20 00 00 00* 3 Send/read Auto DV RX Call signs output
OFF
01* Send/read Auto DV RX Call signs output
3
ON
01 see p. 13-19 Output DV RX Call signs for transceive
02 see p. 13-19 Read DV RX Call signs for transceive
01 00 00* 3 Send/read Auto DV RX message output
OFF
01* Send/read Auto DV RX message output ON
3
01 see p. 13-20 Output DV RX message for transceive
02 see p. 13-20 Read DV RX message for transceive
02 00 00* 3 Send/read Auto DV RX status output OFF
01* Send/read Auto DV RX status output ON
3
01 see p. 13-20 Output DV RX status for transceive
02 see p. 13-20 Read DV RX status for transceive
03 00 00 Send/read Auto DV RX GPS/D-PRS data
output OFF
01 Send/read Auto DV RX GPS/D-PRS data
output ON
01 see p. 13-20 Output DV RX GPS/D-PRS data for trans-
ceive
02 see p. 13-20 Read DV RX GPS/D-PRS data for trans-
ceive
04 00 00 Send/read Auto DV RX GPS/D-PRS mes-
sage output OFF
01 Send/read Auto DV RX GPS/D-PRS mes-
sage output ON
01 see p. 13-22 Output DV RX GPS/D-PRS message for
transceive
02 see p. 13-22 Read DV RX GPS/D-PRS message for
transceive
22 00 see p. 13-22 Send/read DV TX data (Up to 30 byte)
01 00 00 Send/read Auto DV RX data output OFF
01 Send/read Auto DV RX data output ON
01 see p. 13-22 Send/read DV RX data (Up to 30 byte)
02 00, 01 Send/read DV data TX setting
(00=PTT, 01=Auto)
23 00 see p. 13-22 Read the position
01 00 Send/read the internal GPS OFF
01 Send/read the internal GPS ON
03 Send/read the manual input
02 see p. 13-22 Send/read manually input position
24 00 00 00 Send/read TX output power setting OFF
01 Send/read TX output power setting ON
01 00 TX output power setting OFF for transceive
01 TX output power setting ON for transceive
* Below 100 Hz is omitted.
1
* When sending the power ON command (18 01), the command "FE"
2
must be sent before the basic format.
• 19200bps: 25 • 9600bps: 13
e.g.: When operating with 4800 bps
q w
F E
F E F E 8
×7
q Preamble code (fixed)
w Transceiver's default address
e Controller's default address
r Command number
t Sub command number
u End of message code (fixed)
* Output setting is automatically turned OFF after turning the power OFF,
3
then ON.
Description
• 4800bps: 7
e r t
C E O 1 8 0 1 F
u
D
