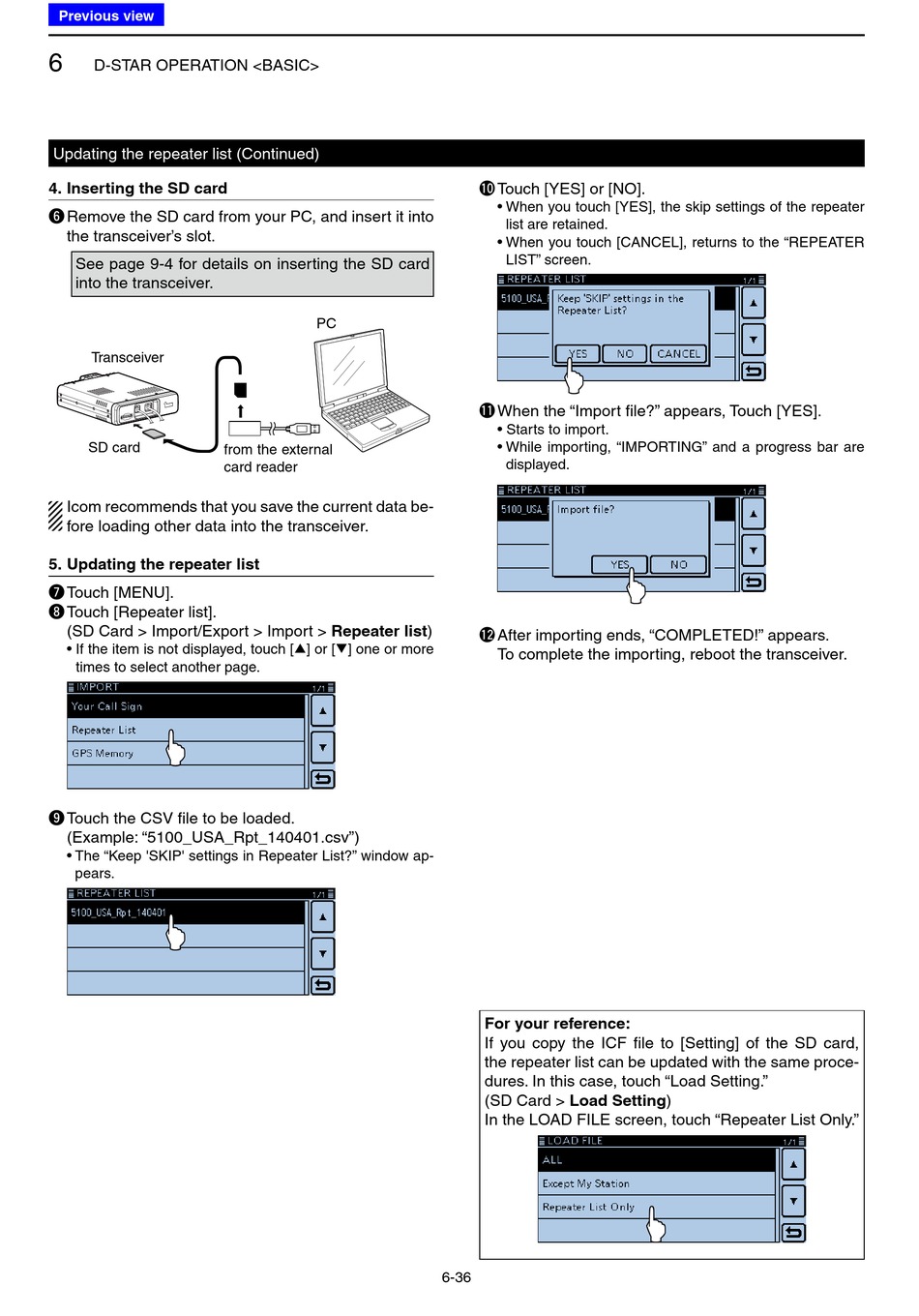

Icom ID-5100A Full Manual page 116

Previous view
6
D-STAR OPERATION <BASIC>
Updating the repeater list (Continued)
4. Inserting the SD card
y Remove the SD card from your PC, and insert it into
the transceiver's slot.
See page 9-4 for details on inserting the SD card
into the transceiver.
Transceiver
SD card
Icom recommends that you save the current data be-
fore loading other data into the transceiver.
5. Updating the repeater list
u Touch [MENU].
i Touch [Repeater list].
(SD Card > Import/Export > Import > Repeater list)
• If the item is not displayed, touch [∫] or [√] one or more
times to select another page.
o Touch the CSV file to be loaded.
(Example: "5100_USA_Rpt_140401.csv")
• The "Keep 'SKIP' settings in Repeater List?" window ap-
pears.
PC
from the external
card reader
!0 Touch [YES] or [NO].
• When you touch [YES], the skip settings of the repeater
list are retained.
• When you touch [CANCEL], returns to the "REPEATER
LIST" screen.
!1 When the "Import file?" appears, Touch [YES].
• Starts to import.
• While importing, "IMPORTING" and a progress bar are
displayed.
!2 After importing ends, "COMPLETED!" appears.
To complete the importing, reboot the transceiver.
For your reference:
If you copy the ICF file to [Setting] of the SD card,
the repeater list can be updated with the same proce-
dures. In this case, touch "Load Setting."
(SD Card > Load Setting)
In the LOAD FILE screen, touch "Repeater List Only."
6-36
