CHAPTER 3 IMAGE PROCESSING SYSTEM
4.2 CCDs

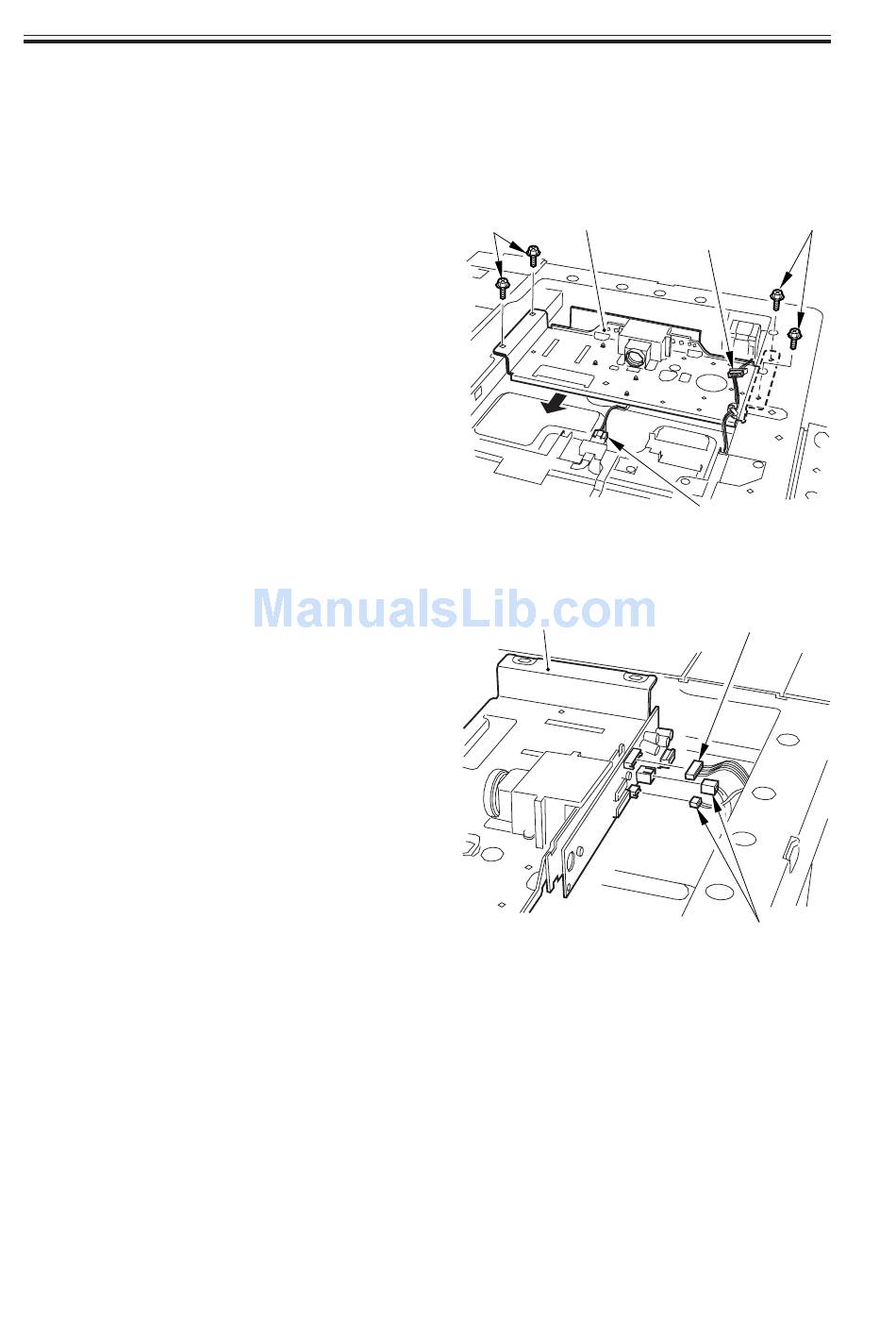

4.2.1 Removing the CCD Unit
1) Remove the original detection unit.
(p. 2-24R)
2) Remove the four screws [1], and discon-
nect the connector [2].
3) Disconnect the connector [3] of the
scanner motor, and detach the harness.
4) Shift the CCD unit [4] to the left.
5) Disconnect the three connectors [1], and
detach the CCD unit [2].
3-12 R
COPYRIGHT © 2001 CANON INC.
[1]
[2]
2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
[4]
[3]
[2]
F03-402-01
[1]
F03-402-02
[1]
[1]
