CHAPTER 5 PICK-UP/FEEDING SYSTEM

3.7 Pickup Retry Operation

When a delay is detected by a pickup sensor because of wear on the pick roller, pickup
retry operation is executed. If a delay is still detected after a retry, the control panel indicates
the Jam message.
3.7.1 Conditions for Detecting a Delay
Paper does not reach the retry sensor when it has been moved over a specific distance af-
ter the pickup DOWN solenoid (SL1) has gone ON.
Pick DOWN solenoid
Pickup motor
Retry paper sensor
Pre-registration paper
sensor
*1:retry operation is executed if paper does not arrive after moving it over 'distance to the retry sen-
sor + 100 mm'.
5-16 P
COPYRIGHT © 2001 CANON INC.
Start key ON
*1

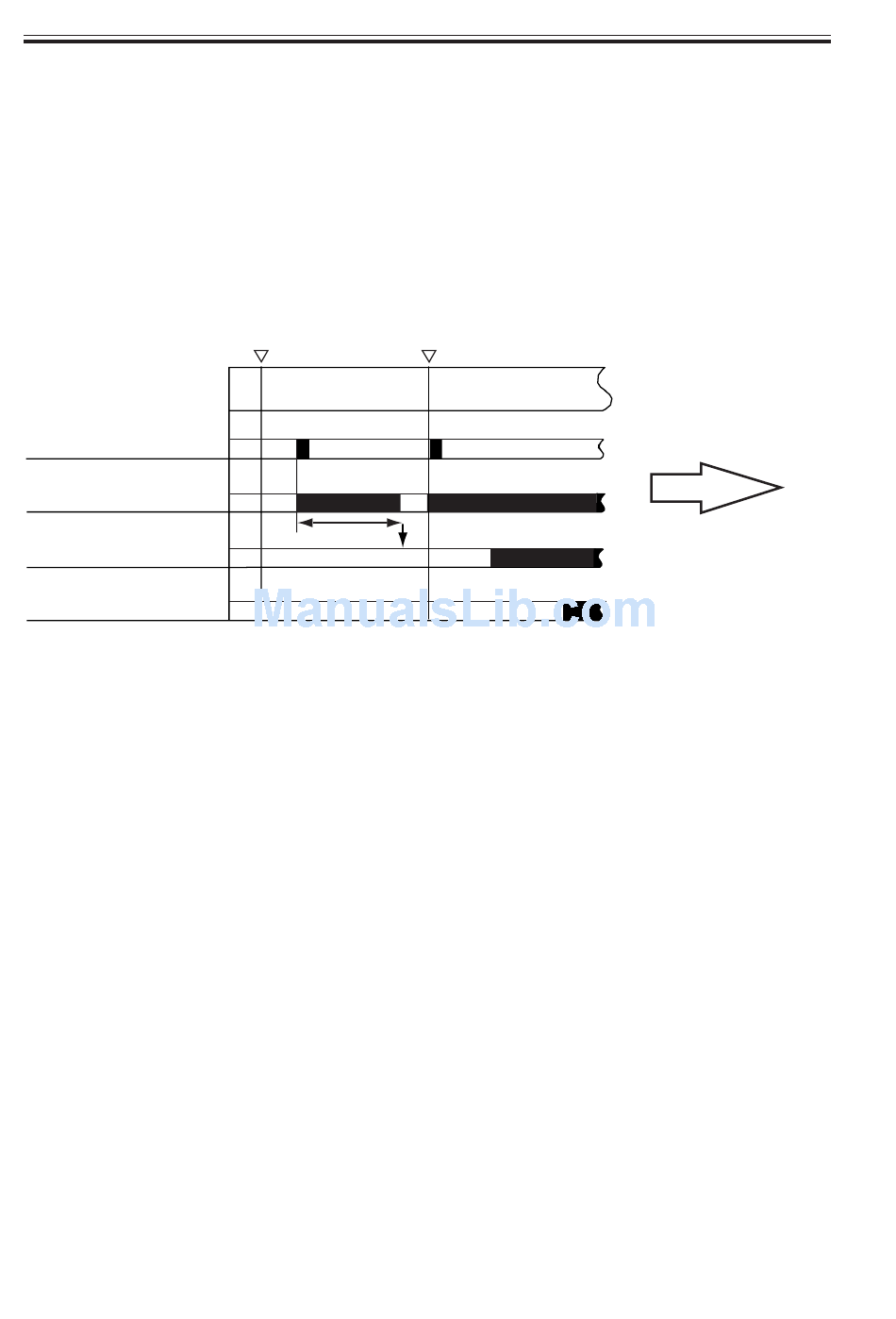

F05-307-01 Retry Operation
Retry operation started
2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
Hereafter, the same
sequence as common
pickup sequence.
