6A1-28 ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE)
OIL PUMP
REMOVAL
1) Disconnect negative cable at battery.
2) Remove timing belt as previously outlined.
3) Remove generator and its bracket.
NOTE:
When installing bracket, fasten nut (A) first.
4) Remove power steering pump bracket or A/C compressor
bracket, if equipped.
NOTE:
When installing bracket, fasten bolt (B) first.
5) Remove oil pan and oil pump strainer as previously outlined.
6) Remove crankshaft timing belt pulley (3).
Lock crankshaft inserting flat end rod or the like (1) between fly-
wheel ring gear and transmission case.
With crankshaft locked, remove crankshaft timing belt pulley
bolt (2).

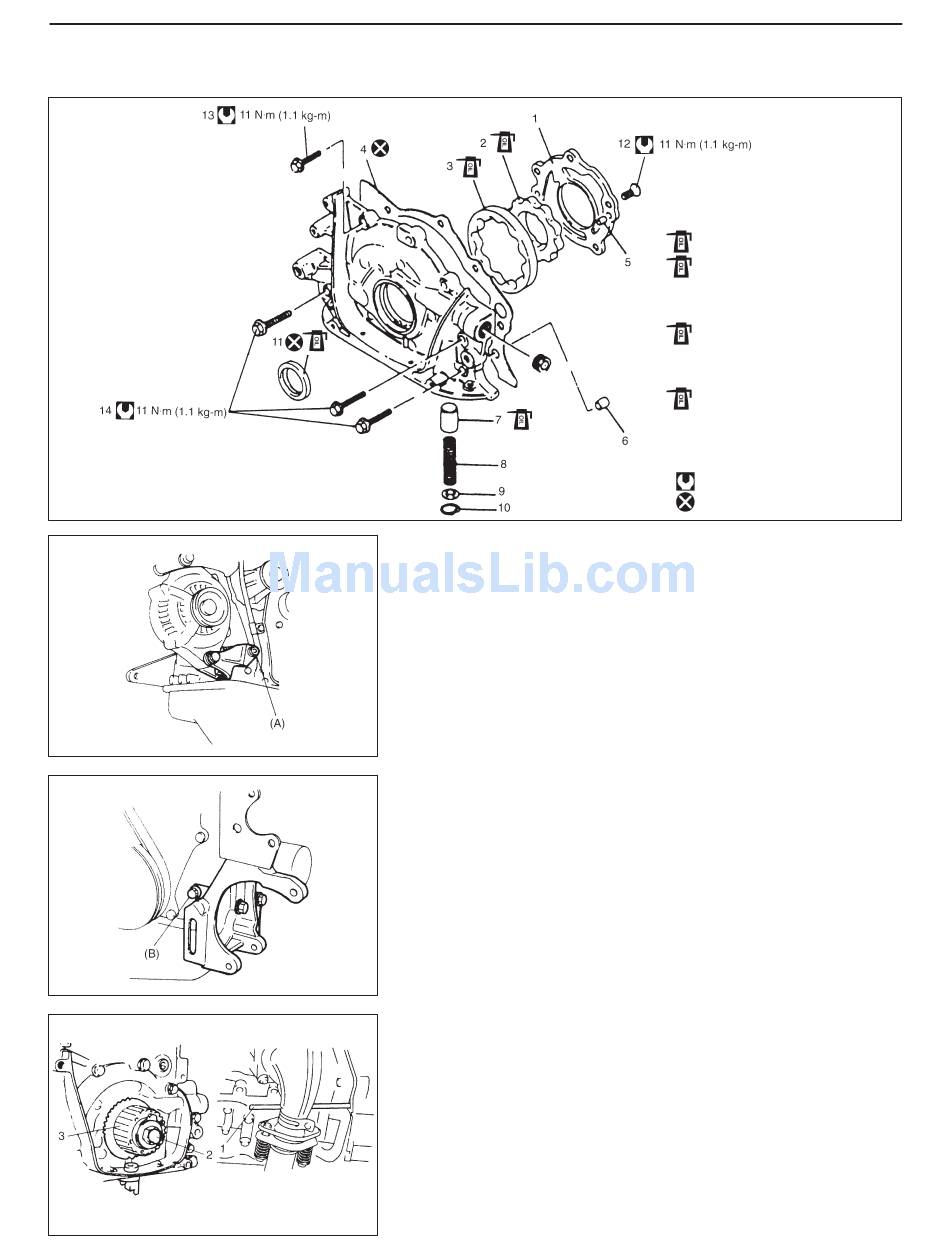

1. Rotor plate
2. Inner rotor:
Apply thin coat of engine oil.
3. Outer rotor:
Apply thin coat of engine oil.
4. Gasket
5. Pin
6. Pin
7. Relief valve:
Apply thin coat of engine oil.
8. Spring
9. Retainer
10. Retainer ring
11. Front oil seal:
Apply engine oil to contact
part of crankshaft with oil seal lip.
12. Plate screw
13. Bolt (short)
14. Bolt (long)
: Tightening Torque
: Do not reuse
