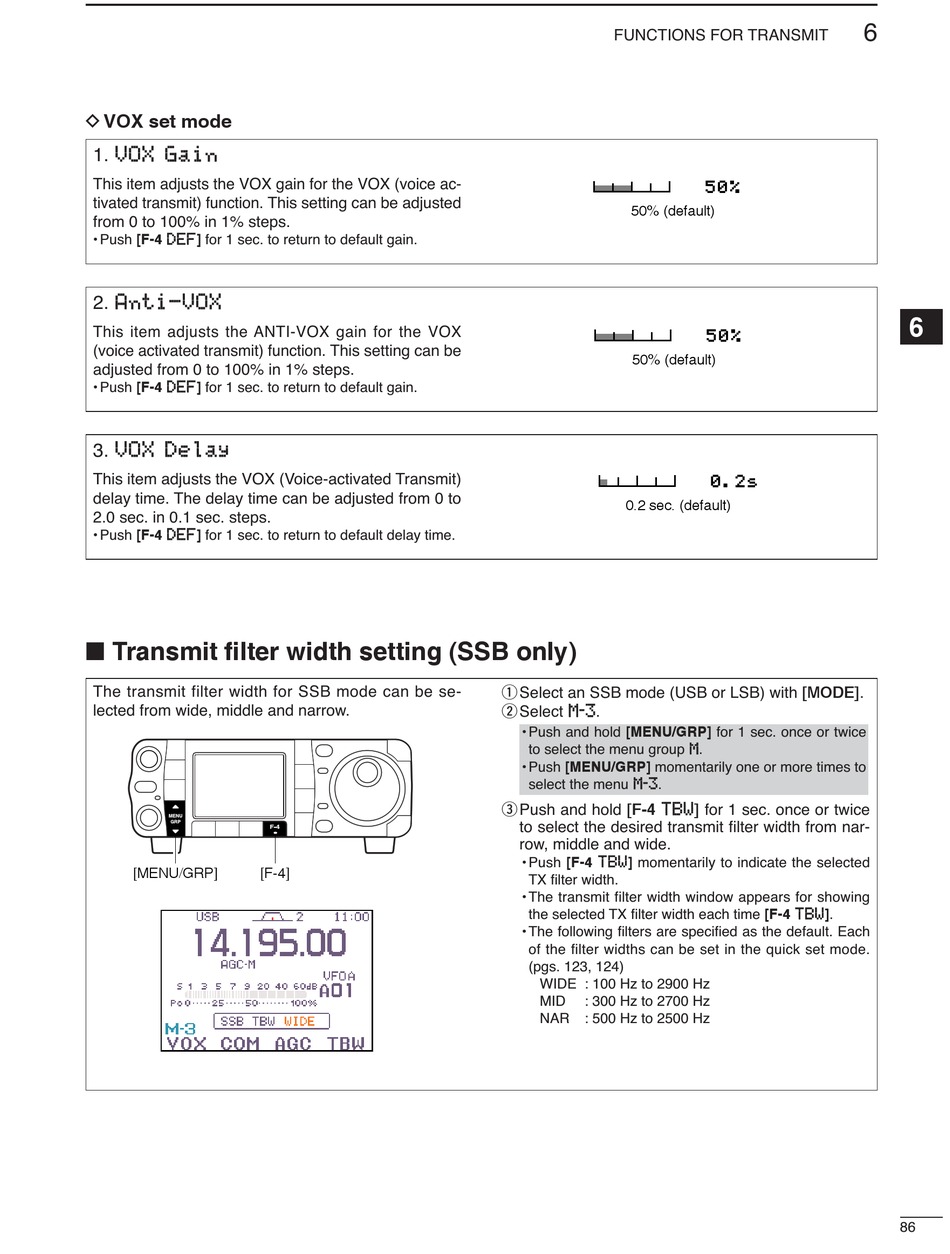

D VOX set mode

1. VOX Gain

This item adjusts the VOX gain for the VOX (voice ac-
tivated transmit) function. This setting can be adjusted
from 0 to 100% in 1% steps.
• Push [F-4 DEF] for 1 sec. to return to default gain.

2. Anti-VOX

This item adjusts the ANTI-VOX gain for the VOX
(voice activated transmit) function. This setting can be
adjusted from 0 to 100% in 1% steps.
• Push [F-4 DEF] for 1 sec. to return to default gain.

3. VOX Delay

This item adjusts the VOX (Voice-activated Transmit)
delay time. The delay time can be adjusted from 0 to
2.0 sec. in 0.1 sec. steps.
• Push [F-4 DEF] for 1 sec. to return to default delay time.
■ Transmit filter width setting (SSB only)
The transmit filter width for SSB mode can be se-
lected from wide, middle and narrow.
[MENU/GRP] [F-4]
FUNCTIONS FOR TRANSMIT
50% (default)
50% (default)
0.2 sec. (default)
q Select an SSB mode (USB or LSB) with [MODE].
w Select M-3.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group M.
• Push [MENU/GRP] momentarily one or more times to
select the menu M-3.
e Push and hold [F-4 TBW] for 1 sec. once or twice
to select the desired transmit filter width from nar-
row, middle and wide.
• Push [F-4 TBW] momentarily to indicate the selected
TX filter width.
• The transmit filter width window appears for showing
the selected TX filter width each time [F-4 TBW].
• The following filters are specified as the default. Each
of the filter widths can be set in the quick set mode.
(pgs. 123, 124)
WIDE : 100 Hz to 2900 Hz
MID : 300 Hz to 2700 Hz
NAR : 500 Hz to 2500 Hz
5 0 %
5 0 %
0 . 2 s
6
6
86
