1

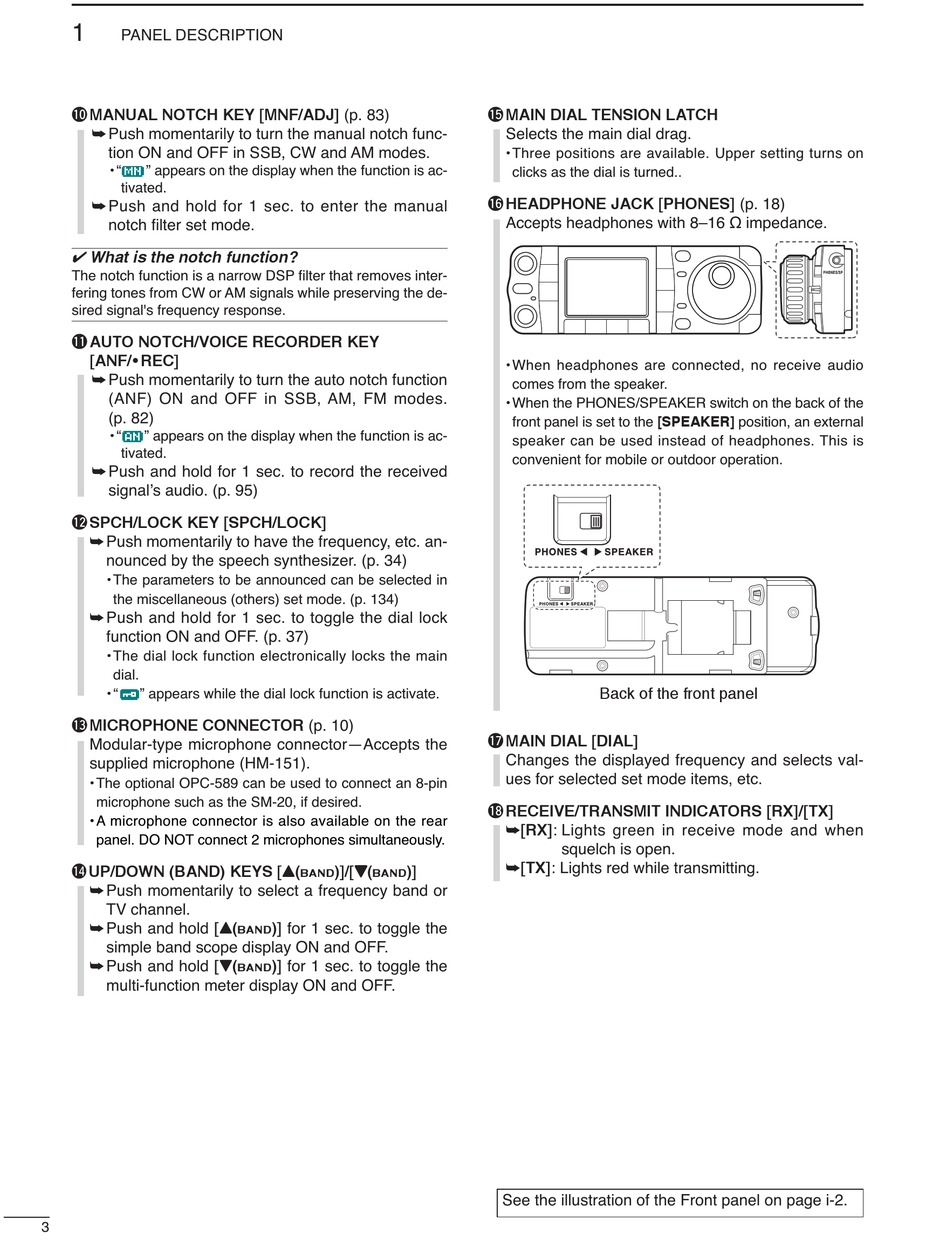

PANEL DESCRIPTION

!0 MANUAL NOTCH KEY [MNF/ADJ] (p. 83)

➥ Push momentarily to turn the manual notch func-
tion ON and OFF in SSB, CW and AM modes.
• "
" appears on the display when the function is ac-
tivated.
➥ Push and hold for 1 sec. to enter the manual
notch filter set mode.
✔ What is the notch function?
The notch function is a narrow DSP filter that removes inter-
fering tones from CW or AM signals while preserving the de-
sired signal's frequency response.
!1 AUTO NOTCH/VOICE RECORDER KEY
[ANF/• REC]
➥ Push momentarily to turn the auto notch function
(ANF) ON and OFF in SSB, AM, FM modes.
(p. 82)
• "
" appears on the display when the function is ac-
tivated.
➥ Push and hold for 1 sec. to record the received
signal's audio. (p. 95)
!2 SPCH/LOCK KEY [SPCH/LOCK]
➥ Push momentarily to have the frequency, etc. an-
nounced by the speech synthesizer. (p. 34)
• The parameters to be announced can be selected in
the miscellaneous (others) set mode. (p. 134)
➥ Push and hold for 1 sec. to toggle the dial lock
function ON and OFF. (p. 37)
• The dial lock function electronically locks the main
dial.
• "
" appears while the dial lock function is activate.

!3 MICROPHONE CONNECTOR (p. 10)

Modular-type microphone connector—Accepts the
supplied microphone (HM-151).
• The optional OPC-589 can be used to connect an 8-pin
microphone such as the SM-20, if desired.
• A microphone connector is also available on the rear
panel. DO NOT connect 2 microphones simultaneously.
!4 UP/DOWN (BAND) KEYS [Y(
➥ Push momentarily to select a frequency band or
TV channel.
➥ Push and hold [Y(
simple band scope display ON and OFF.
➥ Push and hold [Z(
multi-function meter display ON and OFF.
3
)]/[Z(
)]
BAND
BAND
)] for 1 sec. to toggle the
BAND
)] for 1 sec. to toggle the
BAND
!5 MAIN DIAL TENSION LATCH
Selects the main dial drag.
• Three positions are available. Upper setting turns on
clicks as the dial is turned..

!6 HEADPHONE JACK [PHONES] (p. 18)

Accepts headphones with 8–16
• When headphones are connected, no receive audio
comes from the speaker.
• When the PHONES/SPEAKER switch on the back of the
front panel is set to the [SPEAKER] position, an external
speaker can be used instead of headphones. This is
convenient for mobile or outdoor operation.
Back of the front panel
!7 MAIN DIAL [DIAL]
Changes the displayed frequency and selects val-
ues for selected set mode items, etc.
!8 RECEIVE/TRANSMIT INDICATORS [RX]/[TX]
➥[RX]: Lights green in receive mode and when
squelch is open.
➥[TX]: Lights red while transmitting.
See the illustration of the Front panel on page i-2.
impedance.
